Documentation for Office Open XML (OOXML / OpenXML / Ecma 376)
Definition Type: Element
Name: txEffectClrLst
Namespace: http://schemas.openxmlformats.org/drawingml/2006/diagram
Type: nsC:CT_Colors
Containing Schema: dml-diagramColorTransform.xsd
MinOccurs 0
MaxOccurs 1
Abstract
Documentation:
Text Effect Color List

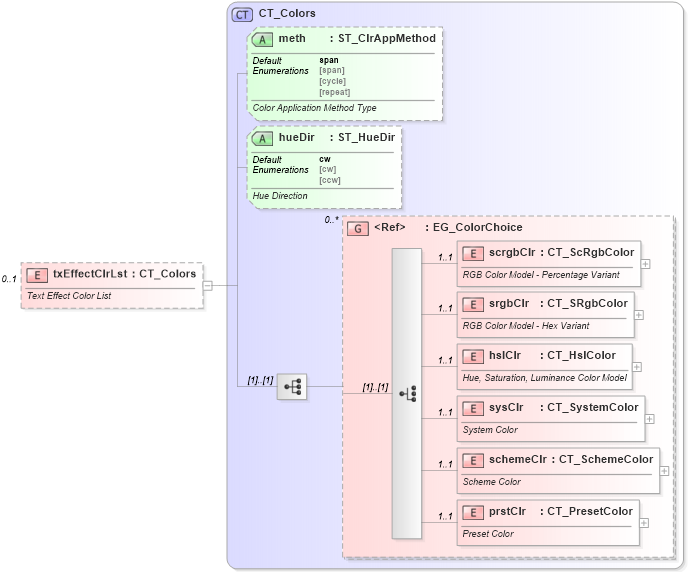

Collapse XSD Schema Diagram:
Drilldown into prstClr in schema dml-basetypes_xsd Drilldown into schemeClr in schema dml-basetypes_xsd Drilldown into sysClr in schema dml-basetypes_xsd Drilldown into hslClr in schema dml-basetypes_xsd Drilldown into srgbClr in schema dml-basetypes_xsd Drilldown into scrgbClr in schema dml-basetypes_xsd Drilldown into EG_ColorChoice in schema dml-basetypes_xsd Drilldown into hueDir in schema dml-diagramcolortransform_xsd Drilldown into meth in schema dml-diagramcolortransform_xsd Drilldown into CT_Colors in schema dml-diagramcolortransform_xsdXSD Diagram of txEffectClrLst in schema dml-diagramcolortransform_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:element name="txEffectClrLst" type="CT_Colors" minOccurs="0" maxOccurs="1">
    <xsd:annotation>
        <xsd:documentation>Text Effect Color List</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
scrgbClr a:scrgbClr 1 1
srgbClr a:srgbClr 1 1
hslClr a:hslClr 1 1
sysClr a:sysClr 1 1
schemeClr a:schemeClr 1 1
prstClr a:prstClr 1 1
<xs:group> a:EG_ColorChoice 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
meth nsC:meth span Optional
hueDir nsC:hueDir cw Optional
Collapse Derivation Tree:
