Documentation for Office Open XML (OOXML / OpenXML / Ecma 376)
Definition Type: ComplexType
Name: CT_PresentationProperties
Namespace: http://schemas.openxmlformats.org/presentationml/2006/main
Containing Schema: pml-presentationProperties.xsd
Abstract

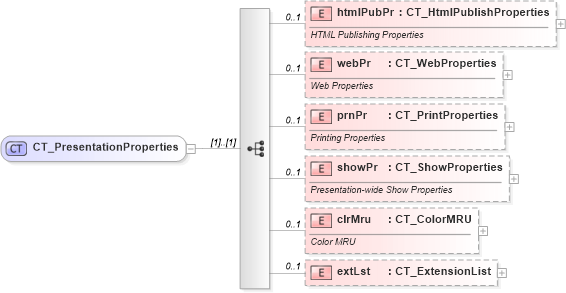

Collapse XSD Schema Diagram:
Drilldown into extLst in schema pml-presentationproperties_xsd Drilldown into clrMru in schema pml-presentationproperties_xsd Drilldown into showPr in schema pml-presentationproperties_xsd Drilldown into prnPr in schema pml-presentationproperties_xsd Drilldown into webPr in schema pml-presentationproperties_xsd Drilldown into htmlPubPr in schema pml-presentationproperties_xsdXSD Diagram of CT_PresentationProperties in schema pml-presentationproperties_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:complexType name="CT_PresentationProperties">
    <xsd:sequence>
        <xsd:element name="htmlPubPr" type="CT_HtmlPublishProperties" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>HTML Publishing Properties</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="webPr" type="CT_WebProperties" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Web Properties</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="prnPr" type="CT_PrintProperties" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Printing Properties</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="showPr" type="CT_ShowProperties" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Presentation-wide Show Properties</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="clrMru" type="a:CT_ColorMRU" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Color MRU</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="extLst" type="CT_ExtensionList" minOccurs="0" maxOccurs="1" />
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
htmlPubPr p:htmlPubPr 0 1
webPr p:webPr 0 1
prnPr p:prnPr 0 1
showPr p:showPr 0 1
clrMru p:clrMru 0 1
extLst p:extLst 0 1
Collapse Derivation Tree:
Collapse References:
p:presentationPr
