Documentation for Office Open XML (OOXML / OpenXML / Ecma 376)
Definition Type: ComplexType
Name: CT_RevisionCellChange
Namespace: http://schemas.openxmlformats.org/spreadsheetml/2006/main
Containing Schema: sml-sharedWorkbookRevisions.xsd
Abstract

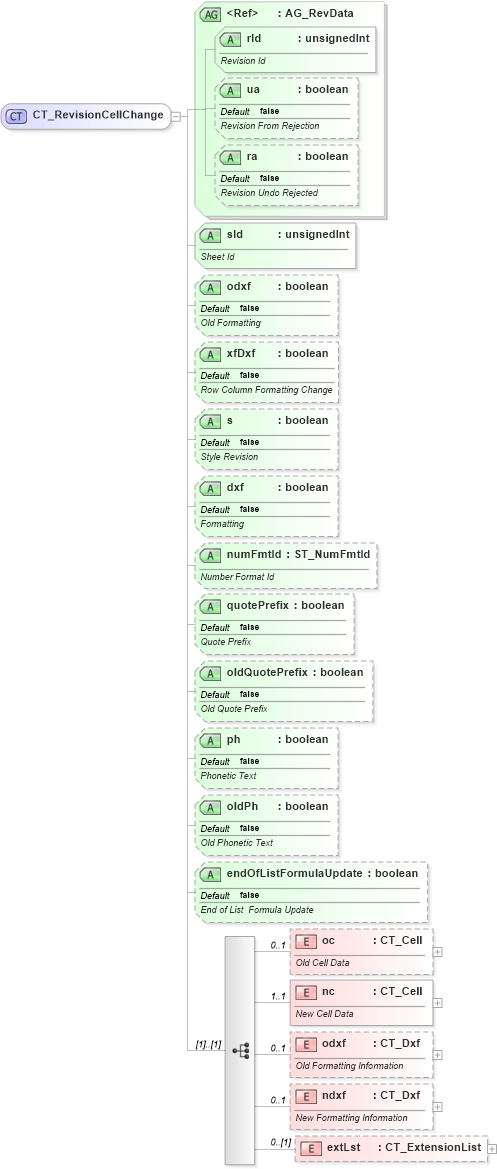

Collapse XSD Schema Diagram:
Drilldown into extLst in schema sml-sharedworkbookrevisions_xsd Drilldown into ndxf in schema sml-sharedworkbookrevisions_xsd Drilldown into odxf in schema sml-sharedworkbookrevisions_xsd Drilldown into nc in schema sml-sharedworkbookrevisions_xsd Drilldown into oc in schema sml-sharedworkbookrevisions_xsd Drilldown into endOfListFormulaUpdate in schema sml-sharedworkbookrevisions_xsd Drilldown into oldPh in schema sml-sharedworkbookrevisions_xsd Drilldown into ph in schema sml-sharedworkbookrevisions_xsd Drilldown into oldQuotePrefix in schema sml-sharedworkbookrevisions_xsd Drilldown into quotePrefix in schema sml-sharedworkbookrevisions_xsd Drilldown into numFmtId in schema sml-sharedworkbookrevisions_xsd Drilldown into dxf in schema sml-sharedworkbookrevisions_xsd Drilldown into s in schema sml-sharedworkbookrevisions_xsd Drilldown into xfDxf in schema sml-sharedworkbookrevisions_xsd Drilldown into odxf in schema sml-sharedworkbookrevisions_xsd Drilldown into sId in schema sml-sharedworkbookrevisions_xsd Drilldown into ra in schema sml-sharedworkbookrevisions_xsd Drilldown into ua in schema sml-sharedworkbookrevisions_xsd Drilldown into rId in schema sml-sharedworkbookrevisions_xsd Drilldown into AG_RevData in schema sml-sharedworkbookrevisions_xsdXSD Diagram of CT_RevisionCellChange in schema sml-sharedworkbookrevisions_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:complexType name="CT_RevisionCellChange">
    <xsd:sequence>
        <xsd:element name="oc" type="CT_Cell" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Old Cell Data</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="nc" type="CT_Cell" minOccurs="1" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>New Cell Data</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="odxf" type="CT_Dxf" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Old Formatting Information</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="ndxf" type="CT_Dxf" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>New Formatting Information</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="extLst" minOccurs="0" type="CT_ExtensionList">
        </xsd:element>
    </xsd:sequence>
    <xsd:attributeGroup ref="AG_RevData" />
    <xsd:attribute name="sId" type="xsd:unsignedInt" use="required">
        <xsd:annotation>
            <xsd:documentation>Sheet Id</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="odxf" type="xsd:boolean" default="false">
        <xsd:annotation>
            <xsd:documentation>Old Formatting</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="xfDxf" type="xsd:boolean" use="optional" default="false">
        <xsd:annotation>
            <xsd:documentation>Row Column Formatting Change</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="s" type="xsd:boolean" use="optional" default="false">
        <xsd:annotation>
            <xsd:documentation>Style Revision</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="dxf" type="xsd:boolean" default="false">
        <xsd:annotation>
            <xsd:documentation>Formatting</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="numFmtId" type="ST_NumFmtId" use="optional">
        <xsd:annotation>
            <xsd:documentation>Number Format Id</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="quotePrefix" type="xsd:boolean" use="optional" default="false">
        <xsd:annotation>
            <xsd:documentation>Quote Prefix</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="oldQuotePrefix" type="xsd:boolean" use="optional" default="false">
        <xsd:annotation>
            <xsd:documentation>Old Quote Prefix</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="ph" type="xsd:boolean" default="false">
        <xsd:annotation>
            <xsd:documentation>Phonetic Text</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="oldPh" type="xsd:boolean" default="false">
        <xsd:annotation>
            <xsd:documentation>Old Phonetic Text</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="endOfListFormulaUpdate" type="xsd:boolean" default="false">
        <xsd:annotation>
            <xsd:documentation>End of List  Formula Update</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
oc nsM:oc 0 1
nc nsM:nc 1 1
odxf nsM:odxf 0 1
ndxf nsM:ndxf 0 1
extLst nsM:extLst 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
rId nsM:rId Required
ua nsM:ua false Optional
ra nsM:ra false Optional
sId nsM:sId Required
odxf nsM:odxf false (Optional)
xfDxf nsM:xfDxf false Optional
s nsM:s false Optional
dxf nsM:dxf false (Optional)
numFmtId nsM:numFmtId Optional
quotePrefix nsM:quotePrefix false Optional
oldQuotePrefix nsM:oldQuotePrefix false Optional
ph nsM:ph false (Optional)
oldPh nsM:oldPh false (Optional)
endOfListFormulaUpdate nsM:endOfListFormulaUpdate false (Optional)
Collapse Derivation Tree:
Collapse References:
nsM:rcc, nsM:rcc, nsM:rcc
