Definition Type: Element
Name: rcc
Namespace: http://schemas.openxmlformats.org/spreadsheetml/2006/main
Type: nsM:CT_RevisionCellChange
Containing Schema: sml-sharedWorkbookRevisions.xsd
MinOccurs 0
MaxOccurs unbounded
Abstract
Documentation:
Revision Cell Change

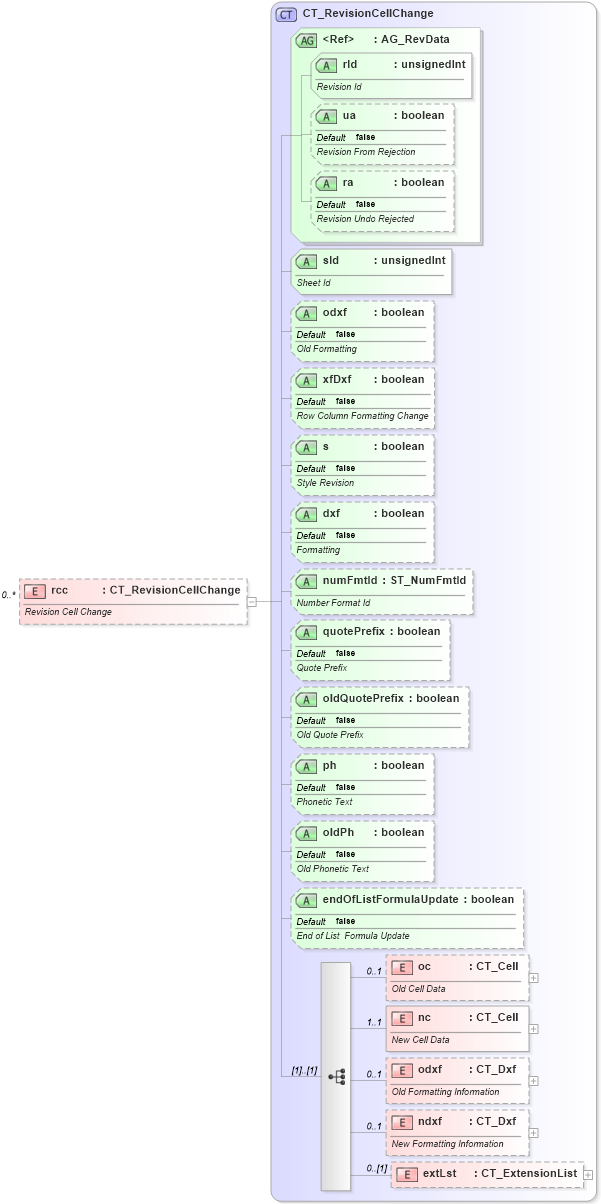

Collapse XSD Schema Diagram:
Drilldown into extLst in schema sml-sharedworkbookrevisions_xsd Drilldown into ndxf in schema sml-sharedworkbookrevisions_xsd Drilldown into odxf in schema sml-sharedworkbookrevisions_xsd Drilldown into nc in schema sml-sharedworkbookrevisions_xsd Drilldown into oc in schema sml-sharedworkbookrevisions_xsd Drilldown into endOfListFormulaUpdate in schema sml-sharedworkbookrevisions_xsd Drilldown into oldPh in schema sml-sharedworkbookrevisions_xsd Drilldown into ph in schema sml-sharedworkbookrevisions_xsd Drilldown into oldQuotePrefix in schema sml-sharedworkbookrevisions_xsd Drilldown into quotePrefix in schema sml-sharedworkbookrevisions_xsd Drilldown into numFmtId in schema sml-sharedworkbookrevisions_xsd Drilldown into dxf in schema sml-sharedworkbookrevisions_xsd Drilldown into s in schema sml-sharedworkbookrevisions_xsd Drilldown into xfDxf in schema sml-sharedworkbookrevisions_xsd Drilldown into odxf in schema sml-sharedworkbookrevisions_xsd Drilldown into sId in schema sml-sharedworkbookrevisions_xsd Drilldown into ra in schema sml-sharedworkbookrevisions_xsd Drilldown into ua in schema sml-sharedworkbookrevisions_xsd Drilldown into rId in schema sml-sharedworkbookrevisions_xsd Drilldown into AG_RevData in schema sml-sharedworkbookrevisions_xsd Drilldown into CT_RevisionCellChange in schema sml-sharedworkbookrevisions_xsdXSD Diagram of rcc in schema sml-sharedworkbookrevisions_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:element name="rcc" type="CT_RevisionCellChange" minOccurs="0" maxOccurs="unbounded">
    <xsd:annotation>
        <xsd:documentation>Revision Cell Change</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
oc nsM:oc 0 1
nc nsM:nc 1 1
odxf nsM:odxf 0 1
ndxf nsM:ndxf 0 1
extLst nsM:extLst 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
rId nsM:rId Required
ua nsM:ua false Optional
ra nsM:ra false Optional
sId nsM:sId Required
odxf nsM:odxf false (Optional)
xfDxf nsM:xfDxf false Optional
s nsM:s false Optional
dxf nsM:dxf false (Optional)
numFmtId nsM:numFmtId Optional
quotePrefix nsM:quotePrefix false Optional
oldQuotePrefix nsM:oldQuotePrefix false Optional
ph nsM:ph false (Optional)
oldPh nsM:oldPh false (Optional)
endOfListFormulaUpdate nsM:endOfListFormulaUpdate false (Optional)
Collapse Derivation Tree:
