Definition Type: ComplexType
Name: CT_ShapeDefaults
Namespace: urn:schemas-microsoft-com:office:office
Containing Schema: vml-officeDrawing.xsd
Abstract
Collapse XSD Schema Diagram:

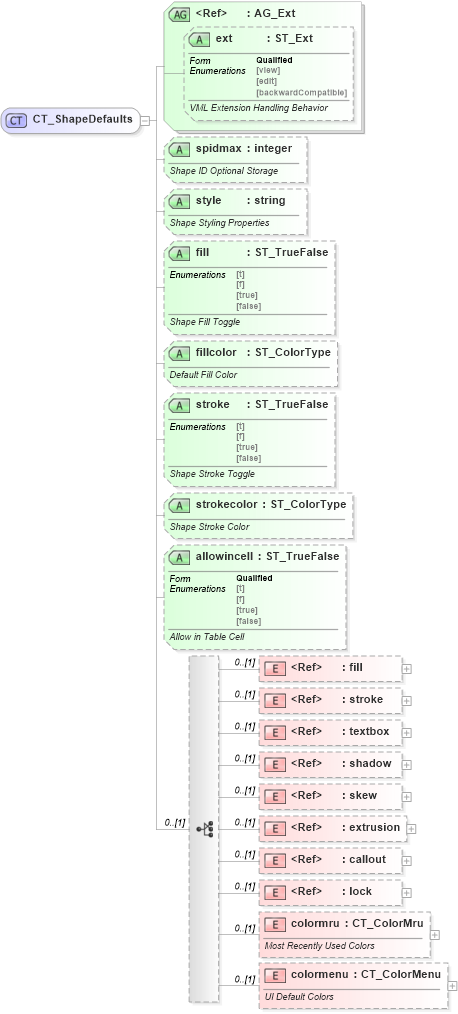

Drilldown into colormenu in schema vml-officedrawing_xsd Drilldown into colormru in schema vml-officedrawing_xsd Drilldown into lock in schema vml-officedrawing_xsd Drilldown into callout in schema vml-officedrawing_xsd Drilldown into extrusion in schema vml-officedrawing_xsd Drilldown into skew in schema vml-officedrawing_xsd Drilldown into shadow in schema vml-main_xsd Drilldown into textbox in schema vml-main_xsd Drilldown into stroke in schema vml-main_xsd Drilldown into fill in schema vml-main_xsd Drilldown into allowincell in schema vml-officedrawing_xsd Drilldown into strokecolor in schema vml-officedrawing_xsd Drilldown into stroke in schema vml-officedrawing_xsd Drilldown into fillcolor in schema vml-officedrawing_xsd Drilldown into fill in schema vml-officedrawing_xsd Drilldown into style in schema vml-officedrawing_xsd Drilldown into spidmax in schema vml-officedrawing_xsd Drilldown into ext in schema vml-main_xsd Drilldown into AG_Ext in schema vml-main_xsdXSD Diagram of CT_ShapeDefaults in schema vml-officedrawing_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:complexType name="CT_ShapeDefaults">
    <xsd:all minOccurs="0">
        <xsd:element ref="v:fill" minOccurs="0" />
        <xsd:element ref="v:stroke" minOccurs="0" />
        <xsd:element ref="v:textbox" minOccurs="0" />
        <xsd:element ref="v:shadow" minOccurs="0" />
        <xsd:element ref="skew" minOccurs="0" />
        <xsd:element ref="extrusion" minOccurs="0" />
        <xsd:element ref="callout" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation>Callout</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="lock" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation>Shape Protections</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="colormru" minOccurs="0" type="CT_ColorMru">
            <xsd:annotation>
                <xsd:documentation>Most Recently Used Colors</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="colormenu" minOccurs="0" type="CT_ColorMenu">
            <xsd:annotation>
                <xsd:documentation>UI Default Colors</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:all>
    <xsd:attributeGroup ref="v:AG_Ext" />
    <xsd:attribute name="spidmax" type="xsd:integer" use="optional">
        <xsd:annotation>
            <xsd:documentation>Shape ID Optional Storage</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="style" type="xsd:string" use="optional">
        <xsd:annotation>
            <xsd:documentation>Shape Styling Properties</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="fill" type="ST_TrueFalse" use="optional">
        <xsd:annotation>
            <xsd:documentation>Shape Fill Toggle</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="fillcolor" type="ST_ColorType" use="optional">
        <xsd:annotation>
            <xsd:documentation>Default Fill Color</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="stroke" type="ST_TrueFalse" use="optional">
        <xsd:annotation>
            <xsd:documentation>Shape Stroke Toggle</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="strokecolor" type="ST_ColorType">
        <xsd:annotation>
            <xsd:documentation>Shape Stroke Color</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="allowincell" form="qualified" type="ST_TrueFalse">
        <xsd:annotation>
            <xsd:documentation>Allow in Table Cell</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
fill v:fill 0 (1)
stroke v:stroke 0 (1)
textbox v:textbox 0 (1)
shadow v:shadow 0 (1)
skew o:skew 0 (1)
extrusion o:extrusion 0 (1)
callout o:callout 0 (1)
lock o:lock 0 (1)
colormru o:colormru 0 (1)
colormenu o:colormenu 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
ext v:ext (Optional)
spidmax o:spidmax Optional
style o:style Optional
fill o:fill Optional
fillcolor o:fillcolor Optional
stroke o:stroke Optional
strokecolor o:strokecolor (Optional)
allowincell o:allowincell (Optional)
Collapse Derivation Tree:
Collapse References:
o:shapedefaults
