Documentation for Office Open XML (OOXML / OpenXML / Ecma 376)
Definition Type: Element
Name: shapedefaults
Namespace: urn:schemas-microsoft-com:office:office
Type: o:CT_ShapeDefaults
Containing Schema: vml-officeDrawing.xsd
Abstract
Documentation:
New Shape Defaults

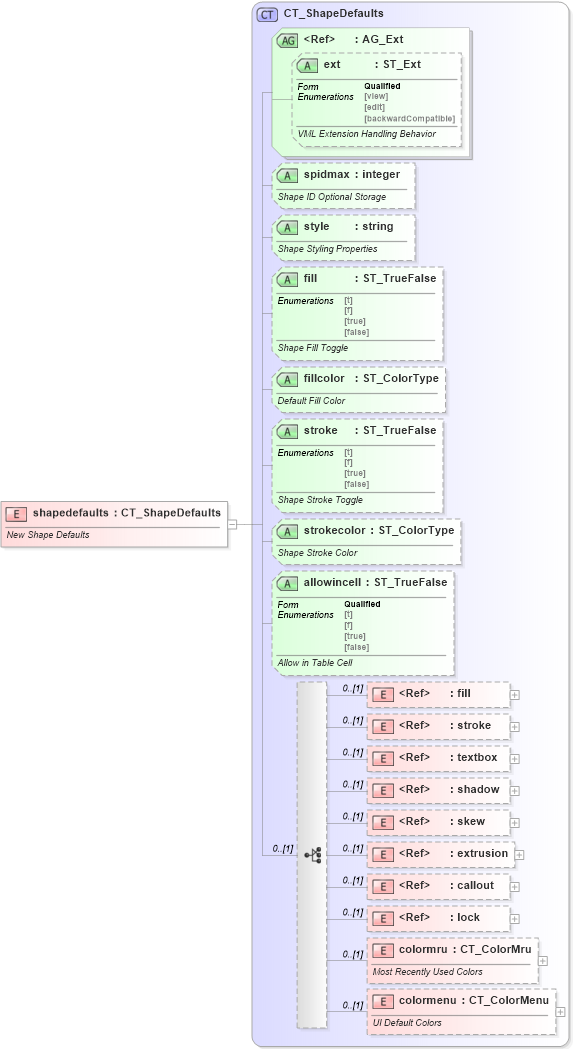

Collapse XSD Schema Diagram:
Drilldown into colormenu in schema vml-officedrawing_xsd Drilldown into colormru in schema vml-officedrawing_xsd Drilldown into lock in schema vml-officedrawing_xsd Drilldown into callout in schema vml-officedrawing_xsd Drilldown into extrusion in schema vml-officedrawing_xsd Drilldown into skew in schema vml-officedrawing_xsd Drilldown into shadow in schema vml-main_xsd Drilldown into textbox in schema vml-main_xsd Drilldown into stroke in schema vml-main_xsd Drilldown into fill in schema vml-main_xsd Drilldown into allowincell in schema vml-officedrawing_xsd Drilldown into strokecolor in schema vml-officedrawing_xsd Drilldown into stroke in schema vml-officedrawing_xsd Drilldown into fillcolor in schema vml-officedrawing_xsd Drilldown into fill in schema vml-officedrawing_xsd Drilldown into style in schema vml-officedrawing_xsd Drilldown into spidmax in schema vml-officedrawing_xsd Drilldown into ext in schema vml-main_xsd Drilldown into AG_Ext in schema vml-main_xsd Drilldown into CT_ShapeDefaults in schema vml-officedrawing_xsdXSD Diagram of shapedefaults in schema vml-officedrawing_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:element name="shapedefaults" type="CT_ShapeDefaults">
    <xsd:annotation>
        <xsd:documentation>New Shape Defaults</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
fill v:fill 0 (1)
stroke v:stroke 0 (1)
textbox v:textbox 0 (1)
shadow v:shadow 0 (1)
skew o:skew 0 (1)
extrusion o:extrusion 0 (1)
callout o:callout 0 (1)
lock o:lock 0 (1)
colormru o:colormru 0 (1)
colormenu o:colormenu 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
ext v:ext (Optional)
spidmax o:spidmax Optional
style o:style Optional
fill o:fill Optional
fillcolor o:fillcolor Optional
stroke o:stroke Optional
strokecolor o:strokecolor (Optional)
allowincell o:allowincell (Optional)
Collapse Derivation Tree:
