Documentation for OFX - Open Financial Exchange
Definition Type: Element
Name: INTERXFERMSGSETV1
Namespace: http://ofx.net/types/2003/04
Type: ofx:InterTransferMessageSetV1
Containing Schema: OFX_Profile.xsd
MinOccurs (1)
MaxOccurs (1)
Abstract

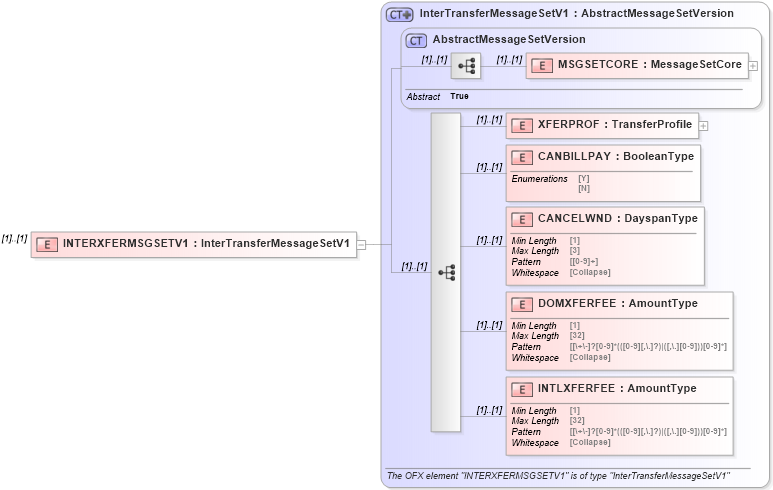

Collapse XSD Schema Diagram:
Drilldown into INTLXFERFEE in schema ofx_profile_xsd Drilldown into DOMXFERFEE in schema ofx_profile_xsd Drilldown into CANCELWND in schema ofx_profile_xsd Drilldown into CANBILLPAY in schema ofx_profile_xsd Drilldown into XFERPROF in schema ofx_profile_xsd Drilldown into MSGSETCORE in schema ofx_profile_xsd Drilldown into AbstractMessageSetVersion in schema ofx_profile_xsd Drilldown into InterTransferMessageSetV1 in schema ofx_profile_xsdXSD Diagram of INTERXFERMSGSETV1 in schema ofx_profile_xsd (OFX - Open Financial Exchange)
Collapse XSD Schema Code:
<xsd:element name="INTERXFERMSGSETV1" type="ofx:InterTransferMessageSetV1" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
MSGSETCORE ofx:MSGSETCORE (1) (1)
XFERPROF ofx:XFERPROF (1) (1)
CANBILLPAY ofx:CANBILLPAY (1) (1)
CANCELWND ofx:CANCELWND (1) (1)
DOMXFERFEE ofx:DOMXFERFEE (1) (1)
INTLXFERFEE ofx:INTLXFERFEE (1) (1)
Collapse Derivation Tree:
