Documentation for papiNet - e-business standard for the paper and forest industry
Definition Type: ComplexType
Name: deliveryMessageHeader
Namespace: http://www.papinet.org/v2r40
Containing Schema: papiNetCommonDefsV2R40.xsd
Abstract

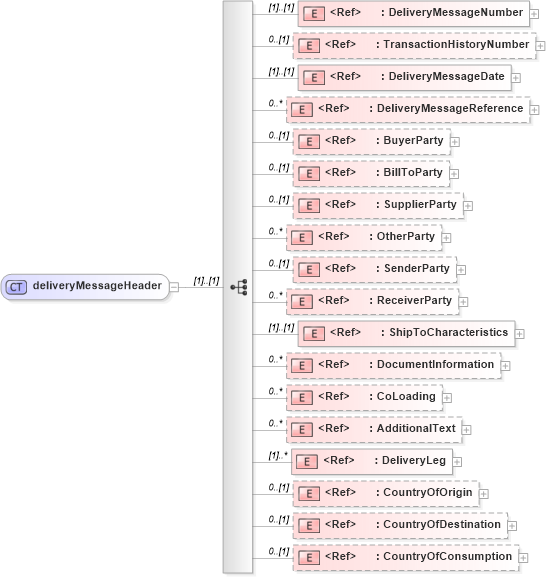

Collapse XSD Schema Diagram:
Drilldown into CountryOfConsumption in schema papinetcommondefsv2r40_xsd Drilldown into CountryOfDestination in schema papinetcommondefsv2r40_xsd Drilldown into CountryOfOrigin in schema papinetcommondefsv2r40_xsd Drilldown into DeliveryLeg in schema papinetcommondefsv2r40_xsd Drilldown into AdditionalText in schema papinetcommondefsv2r40_xsd Drilldown into CoLoading in schema papinetcommondefsv2r40_xsd Drilldown into DocumentInformation in schema papinetcommondefsv2r40_xsd Drilldown into ShipToCharacteristics in schema papinetcommondefsv2r40_xsd Drilldown into ReceiverParty in schema papinetcommondefsv2r40_xsd Drilldown into SenderParty in schema papinetcommondefsv2r40_xsd Drilldown into OtherParty in schema papinetcommondefsv2r40_xsd Drilldown into SupplierParty in schema papinetcommondefsv2r40_xsd Drilldown into BillToParty in schema papinetcommondefsv2r40_xsd Drilldown into BuyerParty in schema papinetcommondefsv2r40_xsd Drilldown into DeliveryMessageReference in schema papinetcommondefsv2r40_xsd Drilldown into DeliveryMessageDate in schema papinetcommondefsv2r40_xsd Drilldown into TransactionHistoryNumber in schema papinetcommondefsv2r40_xsd Drilldown into DeliveryMessageNumber in schema papinetcommondefsv2r40_xsdXSD Diagram of deliveryMessageHeader in schema papinetcommondefsv2r40_xsd (papiNet - e-business standard for the paper and forest industry)
Collapse XSD Schema Code:
<xs:complexType name="deliveryMessageHeader">
    <xs:sequence>
        <xs:element ref="DeliveryMessageNumber" />
        <xs:element ref="TransactionHistoryNumber" minOccurs="0" />
        <xs:element ref="DeliveryMessageDate" />
        <xs:element ref="DeliveryMessageReference" minOccurs="0" maxOccurs="unbounded" />
        <xs:element ref="BuyerParty" minOccurs="0" />
        <xs:element ref="BillToParty" minOccurs="0" />
        <xs:element ref="SupplierParty" minOccurs="0" />
        <xs:element ref="OtherParty" minOccurs="0" maxOccurs="unbounded" />
        <xs:element ref="SenderParty" minOccurs="0" />
        <xs:element ref="ReceiverParty" minOccurs="0" maxOccurs="unbounded" />
        <xs:element ref="ShipToCharacteristics" />
        <xs:element ref="DocumentInformation" minOccurs="0" maxOccurs="unbounded" />
        <xs:element ref="CoLoading" minOccurs="0" maxOccurs="unbounded" />
        <xs:element ref="AdditionalText" minOccurs="0" maxOccurs="unbounded" />
        <xs:element ref="DeliveryLeg" maxOccurs="unbounded" />
        <xs:element ref="CountryOfOrigin" minOccurs="0" />
        <xs:element ref="CountryOfDestination" minOccurs="0" />
        <xs:element ref="CountryOfConsumption" minOccurs="0" />
    </xs:sequence>
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
DeliveryMessageNumber pn:DeliveryMessageNumber (1) (1)
TransactionHistoryNumber pn:TransactionHistoryNumber 0 (1)
DeliveryMessageDate pn:DeliveryMessageDate (1) (1)
DeliveryMessageReference pn:DeliveryMessageReference 0 unbounded
BuyerParty pn:BuyerParty 0 (1)
BillToParty pn:BillToParty 0 (1)
SupplierParty pn:SupplierParty 0 (1)
OtherParty pn:OtherParty 0 unbounded
SenderParty pn:SenderParty 0 (1)
ReceiverParty pn:ReceiverParty 0 unbounded
ShipToCharacteristics pn:ShipToCharacteristics (1) (1)
DocumentInformation pn:DocumentInformation 0 unbounded
CoLoading pn:CoLoading 0 unbounded
AdditionalText pn:AdditionalText 0 unbounded
DeliveryLeg pn:DeliveryLeg (1) unbounded
CountryOfOrigin pn:CountryOfOrigin 0 (1)
CountryOfDestination pn:CountryOfDestination 0 (1)
CountryOfConsumption pn:CountryOfConsumption 0 (1)
Collapse Derivation Tree:
Collapse References:
pn:DeliveryMessageHeader
