Definition Type: Element
Name: InvoiceWoodSummary
Namespace: http://www.papinet.org/v2r40
Containing Schema: InvoiceWoodV2R40.xsd
Abstract

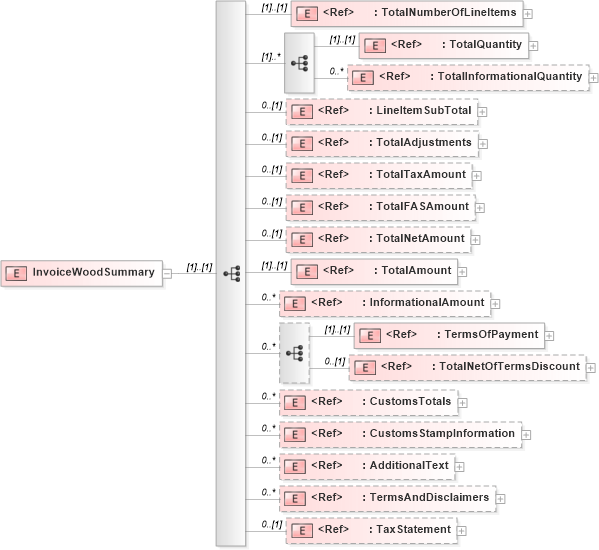

Collapse XSD Schema Diagram:
Drilldown into TaxStatement in schema papinetcommondefsv2r40_xsd Drilldown into TermsAndDisclaimers in schema papinetcommondefsv2r40_xsd Drilldown into AdditionalText in schema papinetcommondefsv2r40_xsd Drilldown into CustomsStampInformation in schema papinetcommondefsv2r40_xsd Drilldown into CustomsTotals in schema papinetcommondefsv2r40_xsd Drilldown into TotalNetOfTermsDiscount in schema papinetcommondefsv2r40_xsd Drilldown into TermsOfPayment in schema papinetcommondefsv2r40_xsd Drilldown into InformationalAmount in schema papinetcommondefsv2r40_xsd Drilldown into TotalAmount in schema papinetcommondefsv2r40_xsd Drilldown into TotalNetAmount in schema papinetcommondefsv2r40_xsd Drilldown into TotalFASAmount in schema papinetcommondefsv2r40_xsd Drilldown into TotalTaxAmount in schema papinetcommondefsv2r40_xsd Drilldown into TotalAdjustments in schema papinetcommondefsv2r40_xsd Drilldown into LineItemSubTotal in schema papinetcommondefsv2r40_xsd Drilldown into TotalInformationalQuantity in schema papinetcommondefsv2r40_xsd Drilldown into TotalQuantity in schema papinetcommondefsv2r40_xsd Drilldown into TotalNumberOfLineItems in schema papinetcommondefsv2r40_xsdXSD Diagram of InvoiceWoodSummary in schema invoicewoodv2r40_xsd (papiNet - e-business standard for the paper and forest industry)
Collapse XSD Schema Code:
<xs:element name="InvoiceWoodSummary">
    <xs:complexType>
        <xs:sequence>
            <xs:element ref="TotalNumberOfLineItems" />
            <xs:sequence maxOccurs="unbounded">
                <xs:element ref="TotalQuantity" />
                <xs:element ref="TotalInformationalQuantity" minOccurs="0" maxOccurs="unbounded" />
            </xs:sequence>
            <xs:element ref="LineItemSubTotal" minOccurs="0" />
            <xs:element ref="TotalAdjustments" minOccurs="0" />
            <xs:element ref="TotalTaxAmount" minOccurs="0" />
            <xs:element ref="TotalFASAmount" minOccurs="0" />
            <xs:element ref="TotalNetAmount" minOccurs="0" />
            <xs:element ref="TotalAmount" />
            <xs:element ref="InformationalAmount" minOccurs="0" maxOccurs="unbounded" />
            <xs:sequence minOccurs="0" maxOccurs="unbounded">
                <xs:element ref="TermsOfPayment" />
                <xs:element ref="TotalNetOfTermsDiscount" minOccurs="0" />
            </xs:sequence>
            <xs:element ref="CustomsTotals" minOccurs="0" maxOccurs="unbounded" />
            <xs:element ref="CustomsStampInformation" minOccurs="0" maxOccurs="unbounded" />
            <xs:element ref="AdditionalText" minOccurs="0" maxOccurs="unbounded" />
            <xs:element ref="TermsAndDisclaimers" minOccurs="0" maxOccurs="unbounded" />
            <xs:element ref="TaxStatement" minOccurs="0" />
        </xs:sequence>
    </xs:complexType>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
TotalNumberOfLineItems pn:TotalNumberOfLineItems (1) (1)
TotalQuantity pn:TotalQuantity (1) (1)
TotalInformationalQuantity pn:TotalInformationalQuantity 0 unbounded
LineItemSubTotal pn:LineItemSubTotal 0 (1)
TotalAdjustments pn:TotalAdjustments 0 (1)
TotalTaxAmount pn:TotalTaxAmount 0 (1)
TotalFASAmount pn:TotalFASAmount 0 (1)
TotalNetAmount pn:TotalNetAmount 0 (1)
TotalAmount pn:TotalAmount (1) (1)
InformationalAmount pn:InformationalAmount 0 unbounded
TermsOfPayment pn:TermsOfPayment (1) (1)
TotalNetOfTermsDiscount pn:TotalNetOfTermsDiscount 0 (1)
CustomsTotals pn:CustomsTotals 0 unbounded
CustomsStampInformation pn:CustomsStampInformation 0 unbounded
AdditionalText pn:AdditionalText 0 unbounded
TermsAndDisclaimers pn:TermsAndDisclaimers 0 unbounded
TaxStatement pn:TaxStatement 0 (1)
