Documentation for papiNet - e-business standard for the paper and forest industry
Definition Type: Element
Name: LoadTender
Namespace: http://www.papinet.org/v2r40
Containing Schema: LoadTenderV2R40.xsd
Abstract

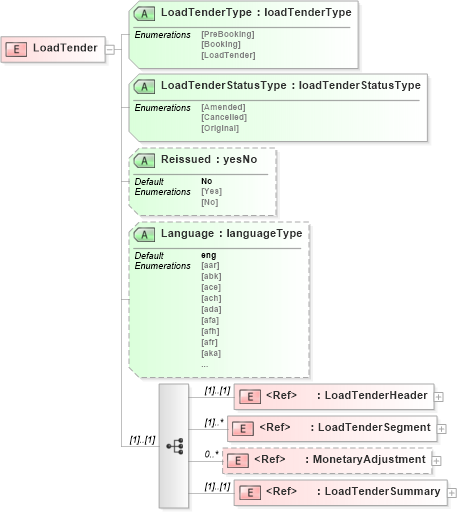

Collapse XSD Schema Diagram:
Drilldown into LoadTenderSummary in schema loadtenderv2r40_xsd Drilldown into MonetaryAdjustment in schema papinetcommondefsv2r40_xsd Drilldown into LoadTenderSegment in schema loadtenderv2r40_xsd Drilldown into LoadTenderHeader in schema loadtenderv2r40_xsd Drilldown into Language in schema loadtenderv2r40_xsd Drilldown into Reissued in schema loadtenderv2r40_xsd Drilldown into LoadTenderStatusType in schema loadtenderv2r40_xsd Drilldown into LoadTenderType in schema loadtenderv2r40_xsdXSD Diagram of LoadTender in schema loadtenderv2r40_xsd (papiNet - e-business standard for the paper and forest industry)
Collapse XSD Schema Code:
<xs:element name="LoadTender">
    <xs:complexType>
        <xs:sequence>
            <xs:element ref="LoadTenderHeader" />
            <xs:element ref="LoadTenderSegment" maxOccurs="unbounded" />
            <xs:element ref="MonetaryAdjustment" minOccurs="0" maxOccurs="unbounded" />
            <xs:element ref="LoadTenderSummary" />
        </xs:sequence>
        <xs:attribute name="LoadTenderType" type="loadTenderType" use="required" />
        <xs:attribute name="LoadTenderStatusType" type="loadTenderStatusType" use="required" />
        <xs:attribute name="Reissued" type="yesNo" default="No" />
        <xs:attribute name="Language" type="languageType" default="eng" />
    </xs:complexType>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
LoadTenderHeader pn:LoadTenderHeader (1) (1)
LoadTenderSegment pn:LoadTenderSegment (1) unbounded
MonetaryAdjustment pn:MonetaryAdjustment 0 unbounded
LoadTenderSummary pn:LoadTenderSummary (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
LoadTenderType pn:LoadTenderType Required
LoadTenderStatusType pn:LoadTenderStatusType Required
Reissued pn:Reissued No (Optional)
Language pn:Language eng (Optional)
