Definition Type: Element
Name: OrderConfirmationWood
Namespace: http://www.papinet.org/v2r40
Containing Schema: OrderConfirmationWoodV2R40.xsd
Abstract

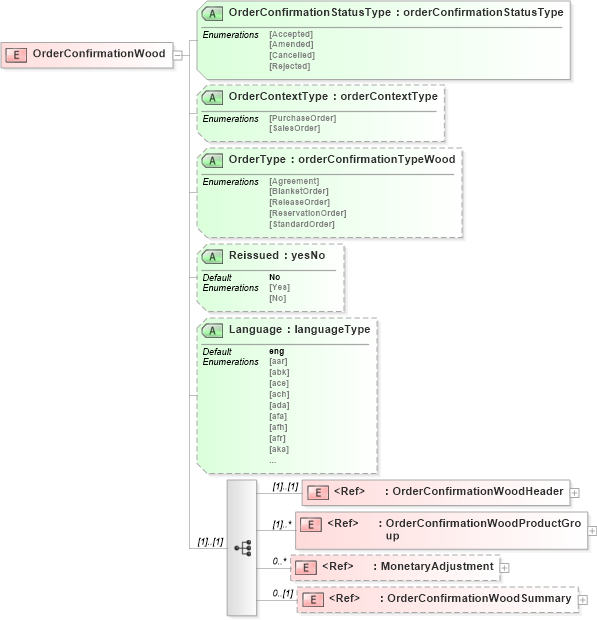

Collapse XSD Schema Diagram:
Drilldown into OrderConfirmationWoodSummary in schema orderconfirmationwoodv2r40_xsd Drilldown into MonetaryAdjustment in schema papinetcommondefsv2r40_xsd Drilldown into OrderConfirmationWoodProductGroup in schema orderconfirmationwoodv2r40_xsd Drilldown into OrderConfirmationWoodHeader in schema orderconfirmationwoodv2r40_xsd Drilldown into Language in schema orderconfirmationwoodv2r40_xsd Drilldown into Reissued in schema orderconfirmationwoodv2r40_xsd Drilldown into OrderType in schema orderconfirmationwoodv2r40_xsd Drilldown into OrderContextType in schema orderconfirmationwoodv2r40_xsd Drilldown into OrderConfirmationStatusType in schema orderconfirmationwoodv2r40_xsdXSD Diagram of OrderConfirmationWood in schema orderconfirmationwoodv2r40_xsd (papiNet - e-business standard for the paper and forest industry)
Collapse XSD Schema Code:
<xs:element name="OrderConfirmationWood">
    <xs:complexType>
        <xs:sequence>
            <xs:element ref="OrderConfirmationWoodHeader" />
            <xs:element ref="OrderConfirmationWoodProductGroup" maxOccurs="unbounded" />
            <xs:element ref="MonetaryAdjustment" minOccurs="0" maxOccurs="unbounded" />
            <xs:element ref="OrderConfirmationWoodSummary" minOccurs="0" />
        </xs:sequence>
        <xs:attribute name="OrderConfirmationStatusType" type="orderConfirmationStatusType" use="required" />
        <xs:attribute name="OrderContextType" type="orderContextType" />
        <xs:attribute name="OrderType" type="orderConfirmationTypeWood" />
        <xs:attribute name="Reissued" type="yesNo" default="No" />
        <xs:attribute name="Language" type="languageType" default="eng" />
    </xs:complexType>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
OrderConfirmationWoodHeader pn:OrderConfirmationWoodHeader (1) (1)
OrderConfirmationWoodProductGroup pn:OrderConfirmationWoodProductGroup (1) unbounded
MonetaryAdjustment pn:MonetaryAdjustment 0 unbounded
OrderConfirmationWoodSummary pn:OrderConfirmationWoodSummary 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
OrderConfirmationStatusType pn:OrderConfirmationStatusType Required
OrderContextType pn:OrderContextType (Optional)
OrderType pn:OrderType (Optional)
Reissued pn:Reissued No (Optional)
Language pn:Language eng (Optional)
