Definition Type: ComplexType
Name: pulpClass
Namespace: http://www.papinet.org/v2r40
Containing Schema: papiNetCommonDefsV2R40.xsd
Abstract

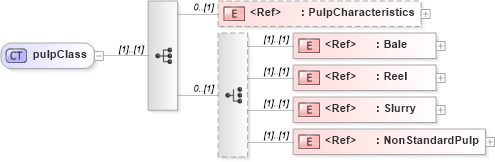

Collapse XSD Schema Diagram:
Drilldown into NonStandardPulp in schema papinetcommondefsv2r40_xsd Drilldown into Slurry in schema papinetcommondefsv2r40_xsd Drilldown into Reel in schema papinetcommondefsv2r40_xsd Drilldown into Bale in schema papinetcommondefsv2r40_xsd Drilldown into PulpCharacteristics in schema papinetcommondefsv2r40_xsdXSD Diagram of pulpClass in schema papinetcommondefsv2r40_xsd (papiNet - e-business standard for the paper and forest industry)
Collapse XSD Schema Code:
<xs:complexType name="pulpClass">
    <xs:sequence>
        <xs:element ref="PulpCharacteristics" minOccurs="0" />
        <xs:choice minOccurs="0">
            <xs:element ref="Bale" />
            <xs:element ref="Reel" />
            <xs:element ref="Slurry" />
            <xs:element ref="NonStandardPulp" />
        </xs:choice>
    </xs:sequence>
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
PulpCharacteristics pn:PulpCharacteristics 0 (1)
Bale pn:Bale (1) (1)
Reel pn:Reel (1) (1)
Slurry pn:Slurry (1) (1)
NonStandardPulp pn:NonStandardPulp (1) (1)
Collapse Derivation Tree:
Collapse References:
pn:Pulp
