Definition Type: ComplexType
Name: woodPanelProductsClass
Namespace: http://www.papinet.org/v2r40
Containing Schema: papiNetCommonDefsV2R40.xsd
Abstract

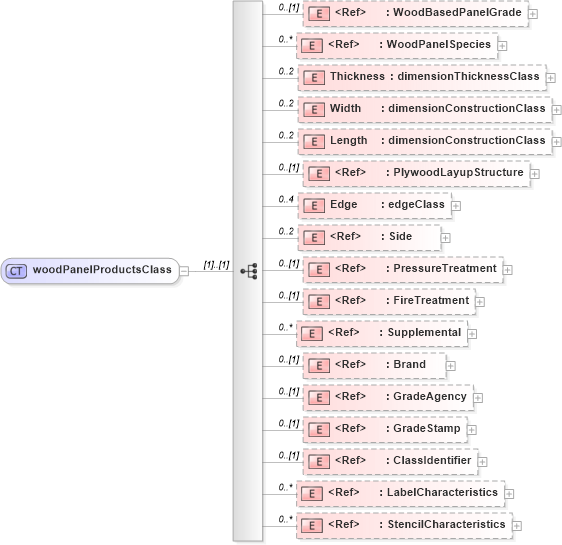

Collapse XSD Schema Diagram:
Drilldown into StencilCharacteristics in schema papinetcommondefsv2r40_xsd Drilldown into LabelCharacteristics in schema papinetcommondefsv2r40_xsd Drilldown into ClassIdentifier in schema papinetcommondefsv2r40_xsd Drilldown into GradeStamp in schema papinetcommondefsv2r40_xsd Drilldown into GradeAgency in schema papinetcommondefsv2r40_xsd Drilldown into Brand in schema papinetcommondefsv2r40_xsd Drilldown into Supplemental in schema papinetcommondefsv2r40_xsd Drilldown into FireTreatment in schema papinetcommondefsv2r40_xsd Drilldown into PressureTreatment in schema papinetcommondefsv2r40_xsd Drilldown into Side in schema papinetcommondefsv2r40_xsd Drilldown into Edge in schema papinetcommondefsv2r40_xsd Drilldown into PlywoodLayupStructure in schema papinetcommondefsv2r40_xsd Drilldown into Length in schema papinetcommondefsv2r40_xsd Drilldown into Width in schema papinetcommondefsv2r40_xsd Drilldown into Thickness in schema papinetcommondefsv2r40_xsd Drilldown into WoodPanelSpecies in schema papinetcommondefsv2r40_xsd Drilldown into WoodBasedPanelGrade in schema papinetcommondefsv2r40_xsdXSD Diagram of woodPanelProductsClass in schema papinetcommondefsv2r40_xsd (papiNet - e-business standard for the paper and forest industry)
Collapse XSD Schema Code:
<xs:complexType name="woodPanelProductsClass">
    <xs:sequence>
        <xs:element ref="WoodBasedPanelGrade" minOccurs="0" />
        <xs:element ref="WoodPanelSpecies" minOccurs="0" maxOccurs="unbounded" />
        <xs:element name="Thickness" type="dimensionThicknessClass" minOccurs="0" maxOccurs="2" />
        <xs:element name="Width" type="dimensionConstructionClass" minOccurs="0" maxOccurs="2" />
        <xs:element name="Length" type="dimensionConstructionClass" minOccurs="0" maxOccurs="2" />
        <xs:element ref="PlywoodLayupStructure" minOccurs="0" />
        <xs:element name="Edge" type="edgeClass" minOccurs="0" maxOccurs="4" />
        <xs:element ref="Side" minOccurs="0" maxOccurs="2" />
        <xs:element ref="PressureTreatment" minOccurs="0" />
        <xs:element ref="FireTreatment" minOccurs="0" />
        <xs:element ref="Supplemental" minOccurs="0" maxOccurs="unbounded" />
        <xs:element ref="Brand" minOccurs="0" />
        <xs:element ref="GradeAgency" minOccurs="0" />
        <xs:element ref="GradeStamp" minOccurs="0" />
        <xs:element ref="ClassIdentifier" minOccurs="0" />
        <xs:element ref="LabelCharacteristics" minOccurs="0" maxOccurs="unbounded" />
        <xs:element ref="StencilCharacteristics" minOccurs="0" maxOccurs="unbounded" />
    </xs:sequence>
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
WoodBasedPanelGrade pn:WoodBasedPanelGrade 0 (1)
WoodPanelSpecies pn:WoodPanelSpecies 0 unbounded
Thickness pn:Thickness 0 2
Width pn:Width 0 2
Length pn:Length 0 2
PlywoodLayupStructure pn:PlywoodLayupStructure 0 (1)
Edge pn:Edge 0 4
Side pn:Side 0 2
PressureTreatment pn:PressureTreatment 0 (1)
FireTreatment pn:FireTreatment 0 (1)
Supplemental pn:Supplemental 0 unbounded
Brand pn:Brand 0 (1)
GradeAgency pn:GradeAgency 0 (1)
GradeStamp pn:GradeStamp 0 (1)
ClassIdentifier pn:ClassIdentifier 0 (1)
LabelCharacteristics pn:LabelCharacteristics 0 unbounded
StencilCharacteristics pn:StencilCharacteristics 0 unbounded
Collapse Derivation Tree:
Collapse References:
pn:WoodPanelProducts
