Documentation for PIDX - Petroleum Industry Data Exchange
Definition Type: Element
Name: BillOfLadingCreate
Namespace: http://www.api.org/pidXML
Type: pidx:BillOfLadingType
Containing Schema: BillOfLadingCreate.xsd
Abstract

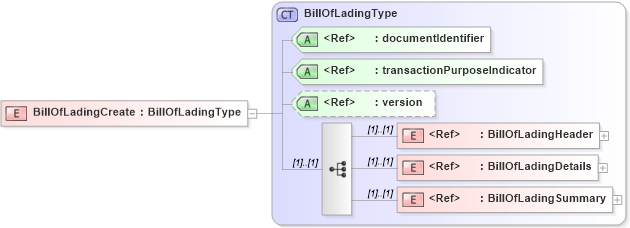

Collapse XSD Schema Diagram:
Drilldown into BillOfLadingSummary in schema billofladingcreate_xsd Drilldown into BillOfLadingDetails in schema billofladingcreate_xsd Drilldown into BillOfLadingHeader in schema billofladingcreate_xsd Drilldown into version in schema pidxlib_xsd Drilldown into transactionPurposeIndicator in schema pidxlib_xsd Drilldown into documentIdentifier in schema pidxlib_xsd Drilldown into BillOfLadingType in schema billofladingcreate_xsdXSD Diagram of BillOfLadingCreate in schema billofladingcreate_xsd (PIDX - Petroleum Industry Data Exchange)
Collapse XSD Schema Code:
<element name="BillOfLadingCreate" type="pidx:BillOfLadingType" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
BillOfLadingHeader pidx:BillOfLadingHeader (1) (1)
BillOfLadingDetails pidx:BillOfLadingDetails (1) (1)
BillOfLadingSummary pidx:BillOfLadingSummary (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
documentIdentifier pidx:documentIdentifier Required
transactionPurposeIndicator pidx:transactionPurposeIndicator Required
version pidx:version (Optional)
Collapse Derivation Tree:
