Documentation for PIDX - Petroleum Industry Data Exchange
Definition Type: ComplexType
Name: BillOfLadingType
Namespace: http://www.api.org/pidXML
Containing Schema: BillOfLadingCreate.xsd
Abstract

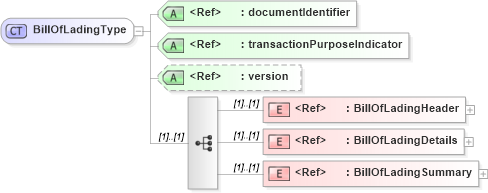

Collapse XSD Schema Diagram:
Drilldown into BillOfLadingSummary in schema billofladingcreate_xsd Drilldown into BillOfLadingDetails in schema billofladingcreate_xsd Drilldown into BillOfLadingHeader in schema billofladingcreate_xsd Drilldown into version in schema pidxlib_xsd Drilldown into transactionPurposeIndicator in schema pidxlib_xsd Drilldown into documentIdentifier in schema pidxlib_xsdXSD Diagram of BillOfLadingType in schema billofladingcreate_xsd (PIDX - Petroleum Industry Data Exchange)
Collapse XSD Schema Code:
<complexType name="BillOfLadingType">
    <sequence>
        <element ref="pidx:BillOfLadingHeader" />
        <element ref="pidx:BillOfLadingDetails" />
        <element ref="pidx:BillOfLadingSummary" />
    </sequence>
    <attribute ref="pidx:documentIdentifier" use="required" />
    <attribute ref="pidx:transactionPurposeIndicator" use="required" />
    <attribute ref="pidx:version" />
</complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
BillOfLadingHeader pidx:BillOfLadingHeader (1) (1)
BillOfLadingDetails pidx:BillOfLadingDetails (1) (1)
BillOfLadingSummary pidx:BillOfLadingSummary (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
documentIdentifier pidx:documentIdentifier Required
transactionPurposeIndicator pidx:transactionPurposeIndicator Required
version pidx:version (Optional)
Collapse Derivation Tree:
Collapse References:
pidx:BillOfLadingCreate
