Documentation for PIDX - Petroleum Industry Data Exchange
Definition Type: Element
Name: BillOfLadingHeader
Namespace: http://www.api.org/pidXML
Type: pidx:BillOfLadingHeaderType
Containing Schema: BillOfLadingCreate.xsd
Abstract

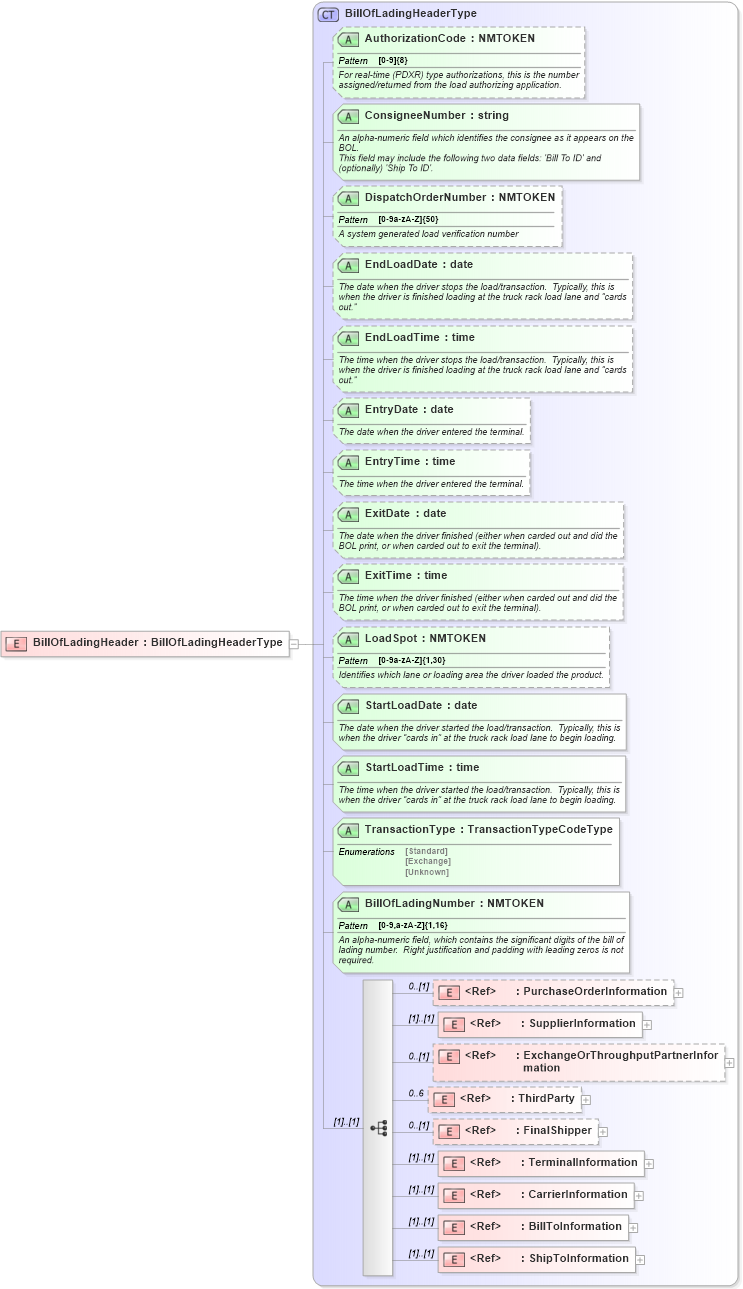

Collapse XSD Schema Diagram:
Drilldown into ShipToInformation in schema billofladingcreate_xsd Drilldown into BillToInformation in schema billofladingcreate_xsd Drilldown into CarrierInformation in schema billofladingcreate_xsd Drilldown into TerminalInformation in schema pidxlib_xsd Drilldown into FinalShipper in schema billofladingcreate_xsd Drilldown into ThirdParty in schema billofladingcreate_xsd Drilldown into ExchangeOrThroughputPartnerInformation in schema billofladingcreate_xsd Drilldown into SupplierInformation in schema billofladingcreate_xsd Drilldown into PurchaseOrderInformation in schema pidxlib_xsd Drilldown into BillOfLadingNumber in schema billofladingcreate_xsd Drilldown into TransactionType in schema billofladingcreate_xsd Drilldown into StartLoadTime in schema billofladingcreate_xsd Drilldown into StartLoadDate in schema billofladingcreate_xsd Drilldown into LoadSpot in schema billofladingcreate_xsd Drilldown into ExitTime in schema billofladingcreate_xsd Drilldown into ExitDate in schema billofladingcreate_xsd Drilldown into EntryTime in schema billofladingcreate_xsd Drilldown into EntryDate in schema billofladingcreate_xsd Drilldown into EndLoadTime in schema billofladingcreate_xsd Drilldown into EndLoadDate in schema billofladingcreate_xsd Drilldown into DispatchOrderNumber in schema billofladingcreate_xsd Drilldown into ConsigneeNumber in schema billofladingcreate_xsd Drilldown into AuthorizationCode in schema billofladingcreate_xsd Drilldown into BillOfLadingHeaderType in schema billofladingcreate_xsdXSD Diagram of BillOfLadingHeader in schema billofladingcreate_xsd (PIDX - Petroleum Industry Data Exchange)
Collapse XSD Schema Code:
<element name="BillOfLadingHeader" type="pidx:BillOfLadingHeaderType" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
PurchaseOrderInformation pidx:PurchaseOrderInformation 0 (1)
SupplierInformation pidx:SupplierInformation (1) (1)
ExchangeOrThroughputPartnerInformation pidx:ExchangeOrThroughputPartnerInformation 0 (1)
ThirdParty pidx:ThirdParty 0 6
FinalShipper pidx:FinalShipper 0 (1)
TerminalInformation pidx:TerminalInformation (1) (1)
CarrierInformation pidx:CarrierInformation (1) (1)
BillToInformation pidx:BillToInformation (1) (1)
ShipToInformation pidx:ShipToInformation (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
AuthorizationCode pidx:AuthorizationCode (Optional)
ConsigneeNumber pidx:ConsigneeNumber Required
DispatchOrderNumber pidx:DispatchOrderNumber (Optional)
EndLoadDate pidx:EndLoadDate (Optional)
EndLoadTime pidx:EndLoadTime (Optional)
EntryDate pidx:EntryDate (Optional)
EntryTime pidx:EntryTime (Optional)
ExitDate pidx:ExitDate (Optional)
ExitTime pidx:ExitTime (Optional)
LoadSpot pidx:LoadSpot (Optional)
StartLoadDate pidx:StartLoadDate Required
StartLoadTime pidx:StartLoadTime Required
TransactionType pidx:TransactionType Required
BillOfLadingNumber pidx:BillOfLadingNumber Required
Collapse Derivation Tree:
