Docs for schema item all in W3C XML Schema Definition Language

Documentation for W3C XML Schema Definition Language

Definition Type:	Element
Name:	all
Namespace:	http://www.w3.org/2001/XMLSchema
Type:	xs:all
Containing Schema:	XMLSchema.xsd
MinOccurs	(1)
MaxOccurs	(1)
Abstract

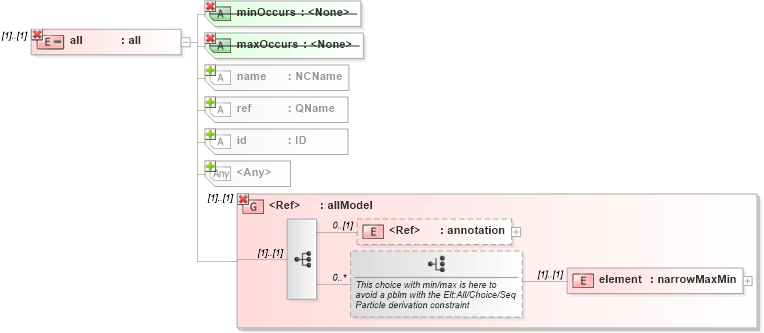

XSD Schema Diagram:

XSD Diagram of all in schema xmlschema_xsd (W3C XML Schema Definition Language)

XSD Schema Code:

<xs:element name="all">
    <xs:complexType>
        <xs:complexContent>
            <xs:restriction base="xs:all">
                <xs:group ref="xs:allModel" />
                <xs:attribute name="minOccurs" use="prohibited" />
                <xs:attribute name="maxOccurs" use="prohibited" />
                <xs:anyAttribute namespace="##other" processContents="lax" />
            </xs:restriction>
        </xs:complexContent>
    </xs:complexType>
</xs:element>

Child Elements:

Name	Type	Min Occurs	Max Occurs
annotation	xs:annotation	0	(1)
element	xs:element	(1)	(1)
group	xs:group	(1)	(1)
all	xs:all	(1)	(1)
choice	xs:choice	(1)	(1)
sequence	xs:sequence	(1)	(1)
any	xs:any	(1)	(1)
annotation	xs:annotation	0	(1)
element	xs:element	(1)	(1)
group	xs:group	(1)	(1)
choice	xs:choice	(1)	(1)
sequence	xs:sequence	(1)	(1)
any	xs:any	(1)	(1)
annotation	xs:annotation	0	(1)
element	xs:element	(1)	(1)
<xs:group>	xs:nestedParticle	0	unbounded

Child Attributes:

Name	Type	Default Value	Use
id	xs:id		(Optional)
name	xs:name		Prohibited
ref	xs:ref		Prohibited
minOccurs	xs:minOccurs		Prohibited
maxOccurs	xs:maxOccurs		Prohibited
<anyAttribute>
<anyAttribute>	Allowed namespace: '##other'
<anyAttribute>	Allowed namespace: '##other'
<anyAttribute>	Allowed namespace: '##other'

Derivation Tree:
	xs:openAttrs xs:annotated xs:group xs:explicitGroup xs:all *all*
