Documentation for AdsML
Definition Type: Element
Name: AdsMLBookings
Namespace: http://www.adsml.org/adsmlbookings/2.0
Type: adsml:AdsMLItemType
Containing Schema: AdsMLBookings-2.0-Main-AS.xsd
Abstract

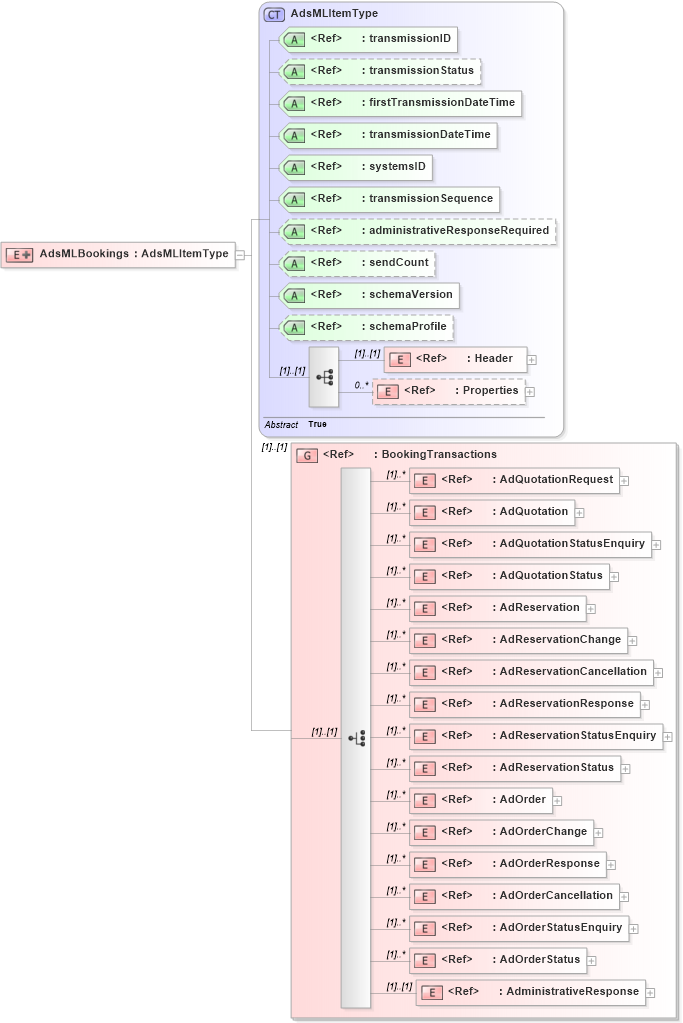

Collapse XSD Schema Diagram:
Drilldown into AdministrativeResponse in schema adsmltypelibrary-2_0-as_xsd Drilldown into AdOrderStatus in schema adsmlbookings-2_0-publictypelibrary-as_xsd Drilldown into AdOrderStatusEnquiry in schema adsmlbookings-2_0-publictypelibrary-as_xsd Drilldown into AdOrderCancellation in schema adsmlbookings-2_0-publictypelibrary-as_xsd Drilldown into AdOrderResponse in schema adsmlbookings-2_0-publictypelibrary-as_xsd Drilldown into AdOrderChange in schema adsmlbookings-2_0-publictypelibrary-as_xsd Drilldown into AdOrder in schema adsmlbookings-2_0-publictypelibrary-as_xsd Drilldown into AdReservationStatus in schema adsmlbookings-2_0-publictypelibrary-as_xsd Drilldown into AdReservationStatusEnquiry in schema adsmlbookings-2_0-publictypelibrary-as_xsd Drilldown into AdReservationResponse in schema adsmlbookings-2_0-publictypelibrary-as_xsd Drilldown into AdReservationCancellation in schema adsmlbookings-2_0-publictypelibrary-as_xsd Drilldown into AdReservationChange in schema adsmlbookings-2_0-publictypelibrary-as_xsd Drilldown into AdReservation in schema adsmlbookings-2_0-publictypelibrary-as_xsd Drilldown into AdQuotationStatus in schema adsmlbookings-2_0-publictypelibrary-as_xsd Drilldown into AdQuotationStatusEnquiry in schema adsmlbookings-2_0-publictypelibrary-as_xsd Drilldown into AdQuotation in schema adsmlbookings-2_0-publictypelibrary-as_xsd Drilldown into AdQuotationRequest in schema adsmlbookings-2_0-publictypelibrary-as_xsd Drilldown into BookingTransactions in schema adsmlbookings-2_0-publictypelibrary-as_xsd Drilldown into Properties in schema adsmltypelibrary-2_0-as_xsd Drilldown into Header in schema adsmltypelibrary-2_0-as_xsd Drilldown into schemaProfile in schema adsmltypelibrary-2_0-as_xsd Drilldown into schemaVersion in schema adsmltypelibrary-2_0-as_xsd Drilldown into sendCount in schema adsmltypelibrary-2_0-as_xsd Drilldown into administrativeResponseRequired in schema adsmltypelibrary-2_0-as_xsd Drilldown into transmissionSequence in schema adsmltypelibrary-2_0-as_xsd Drilldown into systemsID in schema adsmltypelibrary-2_0-as_xsd Drilldown into transmissionDateTime in schema adsmltypelibrary-2_0-as_xsd Drilldown into firstTransmissionDateTime in schema adsmltypelibrary-2_0-as_xsd Drilldown into transmissionStatus in schema adsmltypelibrary-2_0-as_xsd Drilldown into transmissionID in schema adsmltypelibrary-2_0-as_xsd Drilldown into AdsMLItemType in schema adsmltypelibrary-2_0-as_xsdXSD Diagram of AdsMLBookings in schema adsmlbookings-2_0-main-as_xsd (AdsML)
Collapse XSD Schema Code:
<xs:element name="AdsMLBookings">
    <!--This is the root element for the AdsMLBookings standard from the AdsML Consortium (http://www.adsml.org). -->
    <xs:complexType>
        <xs:complexContent>
            <xs:extension base="adsml:AdsMLItemType">
                <xs:group ref="BookingTransactions" />
            </xs:extension>
        </xs:complexContent>
    </xs:complexType>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Header adsml:Header (1) (1)
Properties adsml:Properties 0 unbounded
AdQuotationRequest adsml-bo:AdQuotationRequest (1) unbounded
AdQuotation adsml-bo:AdQuotation (1) unbounded
AdQuotationStatusEnquiry adsml-bo:AdQuotationStatusEnquiry (1) unbounded
AdQuotationStatus adsml-bo:AdQuotationStatus (1) unbounded
AdReservation adsml-bo:AdReservation (1) unbounded
AdReservationChange adsml-bo:AdReservationChange (1) unbounded
AdReservationCancellation adsml-bo:AdReservationCancellation (1) unbounded
AdReservationResponse adsml-bo:AdReservationResponse (1) unbounded
AdReservationStatusEnquiry adsml-bo:AdReservationStatusEnquiry (1) unbounded
AdReservationStatus adsml-bo:AdReservationStatus (1) unbounded
AdOrder adsml-bo:AdOrder (1) unbounded
AdOrderChange adsml-bo:AdOrderChange (1) unbounded
AdOrderResponse adsml-bo:AdOrderResponse (1) unbounded
AdOrderCancellation adsml-bo:AdOrderCancellation (1) unbounded
AdOrderStatusEnquiry adsml-bo:AdOrderStatusEnquiry (1) unbounded
AdOrderStatus adsml-bo:AdOrderStatus (1) unbounded
AdministrativeResponse adsml:AdministrativeResponse (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
transmissionID adsml:transmissionID Required
transmissionStatus adsml:transmissionStatus (Optional)
firstTransmissionDateTime adsml:firstTransmissionDateTime Required
transmissionDateTime adsml:transmissionDateTime Required
systemsID adsml:systemsID Required
transmissionSequence adsml:transmissionSequence Required
administrativeResponseRequired adsml:administrativeResponseRequired Optional
sendCount adsml:sendCount Optional
schemaVersion adsml:schemaVersion Required
schemaProfile adsml:schemaProfile Optional
Collapse Derivation Tree:
