Definition Type: ComplexType
Name: AdsMLItemType
Namespace: http://www.adsml.org/typelibrary/2.0
Containing Schema: AdsMLTypeLibrary-2.0-AS.xsd
Abstract True

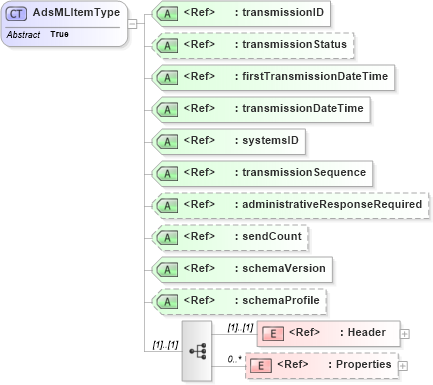

Collapse XSD Schema Diagram:
Drilldown into Properties in schema adsmltypelibrary-2_0-as_xsd Drilldown into Header in schema adsmltypelibrary-2_0-as_xsd Drilldown into schemaProfile in schema adsmltypelibrary-2_0-as_xsd Drilldown into schemaVersion in schema adsmltypelibrary-2_0-as_xsd Drilldown into sendCount in schema adsmltypelibrary-2_0-as_xsd Drilldown into administrativeResponseRequired in schema adsmltypelibrary-2_0-as_xsd Drilldown into transmissionSequence in schema adsmltypelibrary-2_0-as_xsd Drilldown into systemsID in schema adsmltypelibrary-2_0-as_xsd Drilldown into transmissionDateTime in schema adsmltypelibrary-2_0-as_xsd Drilldown into firstTransmissionDateTime in schema adsmltypelibrary-2_0-as_xsd Drilldown into transmissionStatus in schema adsmltypelibrary-2_0-as_xsd Drilldown into transmissionID in schema adsmltypelibrary-2_0-as_xsdXSD Diagram of AdsMLItemType in schema adsmltypelibrary-2_0-as_xsd (AdsML)
Collapse XSD Schema Code:
<xs:complexType name="AdsMLItemType" abstract="true">
    <xs:sequence>
        <xs:element ref="Header" />
        <xs:element ref="Properties" minOccurs="0" maxOccurs="unbounded" />
    </xs:sequence>
    <xs:attribute ref="transmissionID" use="required" />
    <xs:attribute ref="transmissionStatus" />
    <xs:attribute ref="firstTransmissionDateTime" use="required" />
    <xs:attribute ref="transmissionDateTime" use="required" />
    <xs:attribute ref="systemsID" use="required" />
    <xs:attribute ref="transmissionSequence" use="required" />
    <xs:attribute ref="administrativeResponseRequired" use="optional" />
    <xs:attribute ref="sendCount" use="optional" />
    <xs:attribute ref="schemaVersion" use="required" />
    <xs:attribute ref="schemaProfile" use="optional" />
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Header adsml:Header (1) (1)
Properties adsml:Properties 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
transmissionID adsml:transmissionID Required
transmissionStatus adsml:transmissionStatus (Optional)
firstTransmissionDateTime adsml:firstTransmissionDateTime Required
transmissionDateTime adsml:transmissionDateTime Required
systemsID adsml:systemsID Required
transmissionSequence adsml:transmissionSequence Required
administrativeResponseRequired adsml:administrativeResponseRequired Optional
sendCount adsml:sendCount Optional
schemaVersion adsml:schemaVersion Required
schemaProfile adsml:schemaProfile Optional
Collapse Derivation Tree:
Collapse References:
adsml-bo:AdsMLBookings, adsml-fi:AdsMLFinancials, adsml-ma:AdsMLMaterials, adsml-pp:AdsMLProofOfPublication
