Documentation for AdsML
Definition Type: Element
Name: AdsMLMaterials
Namespace: http://www.adsml.org/adsmlmaterials/2.0
Type: adsml:AdsMLItemType
Containing Schema: AdsMLMaterials-2.0-Main-AS.xsd
Abstract

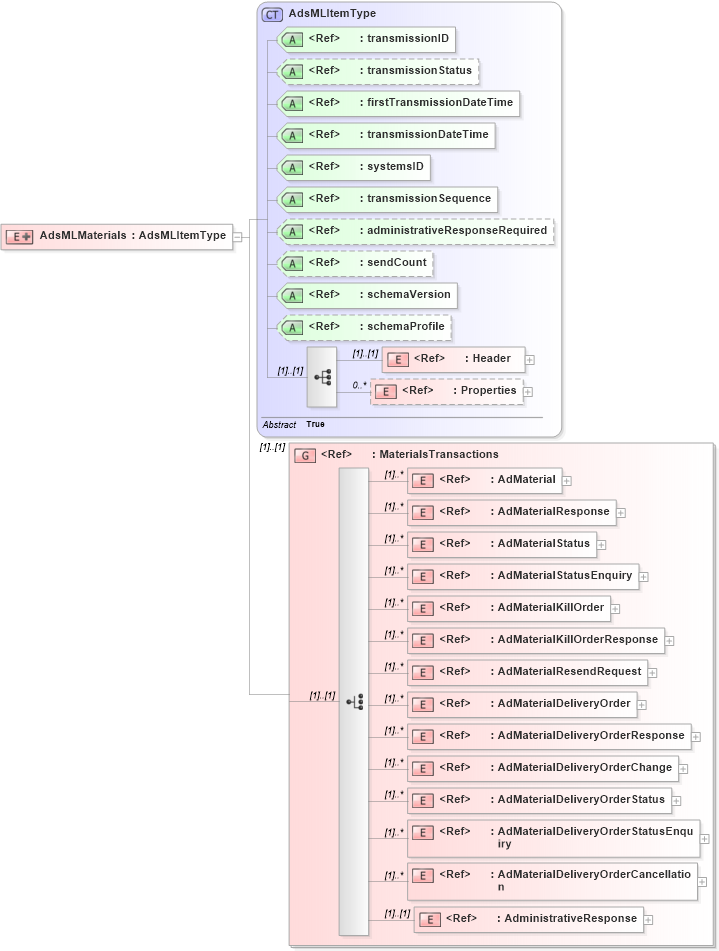

Collapse XSD Schema Diagram:
Drilldown into AdministrativeResponse in schema adsmltypelibrary-2_0-as_xsd Drilldown into AdMaterialDeliveryOrderCancellation in schema adsmlmaterials-2_0-publictypelibrary-as_xsd Drilldown into AdMaterialDeliveryOrderStatusEnquiry in schema adsmlmaterials-2_0-publictypelibrary-as_xsd Drilldown into AdMaterialDeliveryOrderStatus in schema adsmlmaterials-2_0-publictypelibrary-as_xsd Drilldown into AdMaterialDeliveryOrderChange in schema adsmlmaterials-2_0-publictypelibrary-as_xsd Drilldown into AdMaterialDeliveryOrderResponse in schema adsmlmaterials-2_0-publictypelibrary-as_xsd Drilldown into AdMaterialDeliveryOrder in schema adsmlmaterials-2_0-publictypelibrary-as_xsd Drilldown into AdMaterialResendRequest in schema adsmlmaterials-2_0-publictypelibrary-as_xsd Drilldown into AdMaterialKillOrderResponse in schema adsmlmaterials-2_0-publictypelibrary-as_xsd Drilldown into AdMaterialKillOrder in schema adsmlmaterials-2_0-publictypelibrary-as_xsd Drilldown into AdMaterialStatusEnquiry in schema adsmlmaterials-2_0-publictypelibrary-as_xsd Drilldown into AdMaterialStatus in schema adsmlmaterials-2_0-publictypelibrary-as_xsd Drilldown into AdMaterialResponse in schema adsmlmaterials-2_0-publictypelibrary-as_xsd Drilldown into AdMaterial in schema adsmlmaterials-2_0-publictypelibrary-as_xsd Drilldown into MaterialsTransactions in schema adsmlmaterials-2_0-publictypelibrary-as_xsd Drilldown into Properties in schema adsmltypelibrary-2_0-as_xsd Drilldown into Header in schema adsmltypelibrary-2_0-as_xsd Drilldown into schemaProfile in schema adsmltypelibrary-2_0-as_xsd Drilldown into schemaVersion in schema adsmltypelibrary-2_0-as_xsd Drilldown into sendCount in schema adsmltypelibrary-2_0-as_xsd Drilldown into administrativeResponseRequired in schema adsmltypelibrary-2_0-as_xsd Drilldown into transmissionSequence in schema adsmltypelibrary-2_0-as_xsd Drilldown into systemsID in schema adsmltypelibrary-2_0-as_xsd Drilldown into transmissionDateTime in schema adsmltypelibrary-2_0-as_xsd Drilldown into firstTransmissionDateTime in schema adsmltypelibrary-2_0-as_xsd Drilldown into transmissionStatus in schema adsmltypelibrary-2_0-as_xsd Drilldown into transmissionID in schema adsmltypelibrary-2_0-as_xsd Drilldown into AdsMLItemType in schema adsmltypelibrary-2_0-as_xsdXSD Diagram of AdsMLMaterials in schema adsmlmaterials-2_0-main-as_xsd (AdsML)
Collapse XSD Schema Code:
<xs:element name="AdsMLMaterials">
    <!--This is the root element for the AdsMLMaterials standard from the AdsML Consortium (http://www.adsml.org). -->
    <xs:complexType>
        <xs:complexContent>
            <xs:extension base="adsml:AdsMLItemType">
                <xs:group ref="MaterialsTransactions" />
            </xs:extension>
        </xs:complexContent>
    </xs:complexType>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Header adsml:Header (1) (1)
Properties adsml:Properties 0 unbounded
AdMaterial adsml-ma:AdMaterial (1) unbounded
AdMaterialResponse adsml-ma:AdMaterialResponse (1) unbounded
AdMaterialStatus adsml-ma:AdMaterialStatus (1) unbounded
AdMaterialStatusEnquiry adsml-ma:AdMaterialStatusEnquiry (1) unbounded
AdMaterialKillOrder adsml-ma:AdMaterialKillOrder (1) unbounded
AdMaterialKillOrderResponse adsml-ma:AdMaterialKillOrderResponse (1) unbounded
AdMaterialResendRequest adsml-ma:AdMaterialResendRequest (1) unbounded
AdMaterialDeliveryOrder adsml-ma:AdMaterialDeliveryOrder (1) unbounded
AdMaterialDeliveryOrderResponse adsml-ma:AdMaterialDeliveryOrderResponse (1) unbounded
AdMaterialDeliveryOrderChange adsml-ma:AdMaterialDeliveryOrderChange (1) unbounded
AdMaterialDeliveryOrderStatus adsml-ma:AdMaterialDeliveryOrderStatus (1) unbounded
AdMaterialDeliveryOrderStatusEnquiry adsml-ma:AdMaterialDeliveryOrderStatusEnquiry (1) unbounded
AdMaterialDeliveryOrderCancellation adsml-ma:AdMaterialDeliveryOrderCancellation (1) unbounded
AdministrativeResponse adsml:AdministrativeResponse (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
transmissionID adsml:transmissionID Required
transmissionStatus adsml:transmissionStatus (Optional)
firstTransmissionDateTime adsml:firstTransmissionDateTime Required
transmissionDateTime adsml:transmissionDateTime Required
systemsID adsml:systemsID Required
transmissionSequence adsml:transmissionSequence Required
administrativeResponseRequired adsml:administrativeResponseRequired Optional
sendCount adsml:sendCount Optional
schemaVersion adsml:schemaVersion Required
schemaProfile adsml:schemaProfile Optional
Collapse Derivation Tree:
