Documentation for AdsML
Definition Type: Element
Name: AdsMLProofOfPublication
Namespace: http://www.adsml.org/adsmlproofofpublication/1.0
Type: adsml:AdsMLItemType
Containing Schema: AdsMLProofOfPublication-1.0-Main-AS.xsd
Abstract

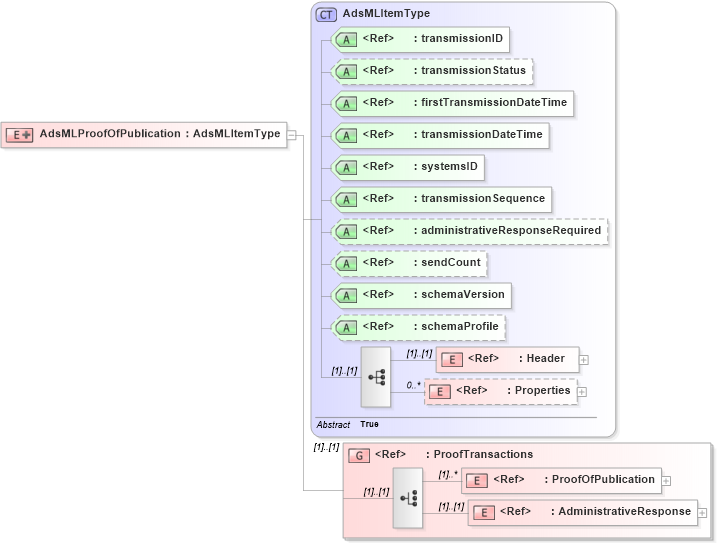

Collapse XSD Schema Diagram:
Drilldown into AdministrativeResponse in schema adsmltypelibrary-2_0-as_xsd Drilldown into ProofOfPublication in schema adsmlproofofpublication-1_0-publictypelibrary-as_xsd Drilldown into ProofTransactions in schema adsmlproofofpublication-1_0-publictypelibrary-as_xsd Drilldown into Properties in schema adsmltypelibrary-2_0-as_xsd Drilldown into Header in schema adsmltypelibrary-2_0-as_xsd Drilldown into schemaProfile in schema adsmltypelibrary-2_0-as_xsd Drilldown into schemaVersion in schema adsmltypelibrary-2_0-as_xsd Drilldown into sendCount in schema adsmltypelibrary-2_0-as_xsd Drilldown into administrativeResponseRequired in schema adsmltypelibrary-2_0-as_xsd Drilldown into transmissionSequence in schema adsmltypelibrary-2_0-as_xsd Drilldown into systemsID in schema adsmltypelibrary-2_0-as_xsd Drilldown into transmissionDateTime in schema adsmltypelibrary-2_0-as_xsd Drilldown into firstTransmissionDateTime in schema adsmltypelibrary-2_0-as_xsd Drilldown into transmissionStatus in schema adsmltypelibrary-2_0-as_xsd Drilldown into transmissionID in schema adsmltypelibrary-2_0-as_xsd Drilldown into AdsMLItemType in schema adsmltypelibrary-2_0-as_xsdXSD Diagram of AdsMLProofOfPublication in schema adsmlproofofpublication-1_0-main-as_xsd (AdsML)
Collapse XSD Schema Code:
<xs:element name="AdsMLProofOfPublication">
    <!--This is the root element for the AdsMLProofOfPublication standard from the AdsML Consortium (http://www.adsml.org). -->
    <xs:complexType>
        <xs:complexContent>
            <xs:extension base="adsml:AdsMLItemType">
                <xs:group ref="ProofTransactions" />
            </xs:extension>
        </xs:complexContent>
    </xs:complexType>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Header adsml:Header (1) (1)
Properties adsml:Properties 0 unbounded
ProofOfPublication adsml-pp:ProofOfPublication (1) unbounded
AdministrativeResponse adsml:AdministrativeResponse (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
transmissionID adsml:transmissionID Required
transmissionStatus adsml:transmissionStatus (Optional)
firstTransmissionDateTime adsml:firstTransmissionDateTime Required
transmissionDateTime adsml:transmissionDateTime Required
systemsID adsml:systemsID Required
transmissionSequence adsml:transmissionSequence Required
administrativeResponseRequired adsml:administrativeResponseRequired Optional
sendCount adsml:sendCount Optional
schemaVersion adsml:schemaVersion Required
schemaProfile adsml:schemaProfile Optional
Collapse Derivation Tree:
