Documentation for Chemical Markup Language (CML)
Definition Type: Element
Name: zMatrix
Namespace: http://www.xml-cml.org/schema
Containing Schema: schema.xsd
Abstract
Documentation:
A zMatrix. A container for length, angle and torsion, which must be arranged in the conventional zMatrix format.
Collapse XSD Schema Diagram:

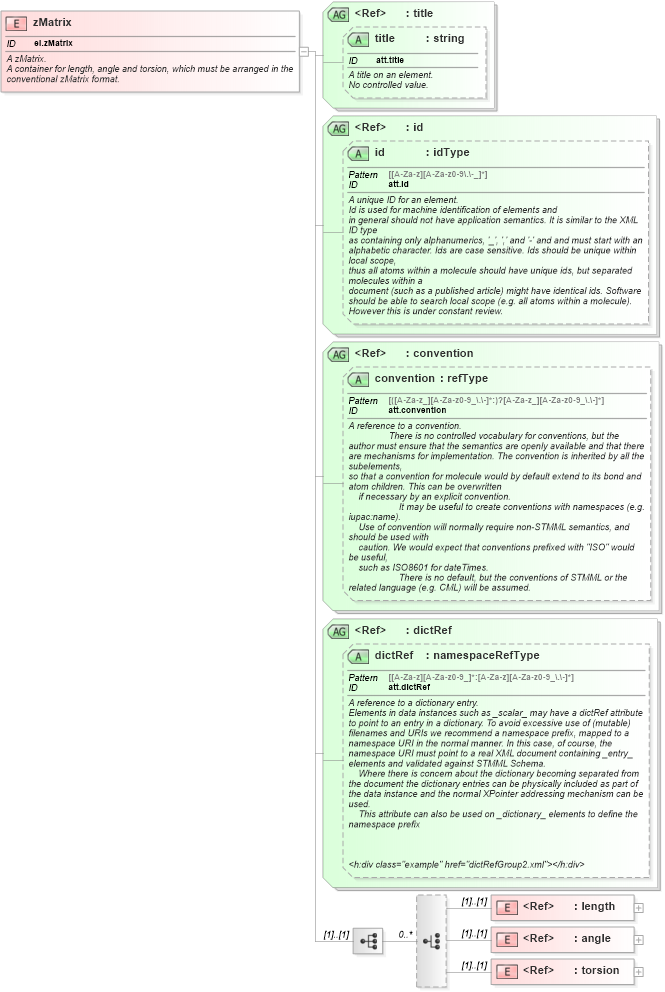

Drilldown into torsion in schema schema_xsd Drilldown into angle in schema schema_xsd Drilldown into length in schema schema_xsd Drilldown into dictRef in schema schema_xsd Drilldown into dictRef in schema schema_xsd Drilldown into convention in schema schema_xsd Drilldown into convention in schema schema_xsd Drilldown into id in schema schema_xsd Drilldown into id in schema schema_xsd Drilldown into title in schema schema_xsd Drilldown into title in schema schema_xsdXSD Diagram of zMatrix in schema schema_xsd (Chemical Markup Language (CML))
Collapse XSD Schema Code:
<xsd:element name="zMatrix" id="el.zMatrix">
    <xsd:annotation>
        <xsd:documentation>
            <h:div class="summary" xmlns:h="http://www.w3.org/1999/xhtml">A zMatrix.</h:div>
            <h:div class="description" xmlns:h="http://www.w3.org/1999/xhtml">A container for <h:tt>length</h:tt>, <h:tt>angle</h:tt> and <h:tt>torsion</h:tt>, which must be arranged in the conventional zMatrix format.</h:div>
            <h:div class="example" href="zMatrix1.xml" xmlns:h="http://www.w3.org/1999/xhtml" />
        </xsd:documentation>
    </xsd:annotation>
    <xsd:complexType>
        <xsd:sequence>
            <xsd:choice minOccurs="0" maxOccurs="unbounded">
                <xsd:element ref="length" />
                <xsd:element ref="angle" />
                <xsd:element ref="torsion" />
            </xsd:choice>
        </xsd:sequence>
        <xsd:attributeGroup ref="title" />
        <xsd:attributeGroup ref="id" />
        <xsd:attributeGroup ref="convention" />
        <xsd:attributeGroup ref="dictRef" />
    </xsd:complexType>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
length nsA:length (1) (1)
angle nsA:angle (1) (1)
torsion nsA:torsion (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
title nsA:title (Optional)
id nsA:id (Optional)
convention nsA:convention (Optional)
dictRef nsA:dictRef (Optional)
