Documentation for Financial products Markup Language (FpML®)
Definition Type: Element
Name: basketConstituent
Namespace: http://www.fpml.org/FpML-5/recordkeeping
Type: nsD:BasketConstituent
Containing Schema: fpml-asset-5-10.xsd
MinOccurs (1)
MaxOccurs unbounded
Abstract
Documentation:
Describes each of the components of the basket.

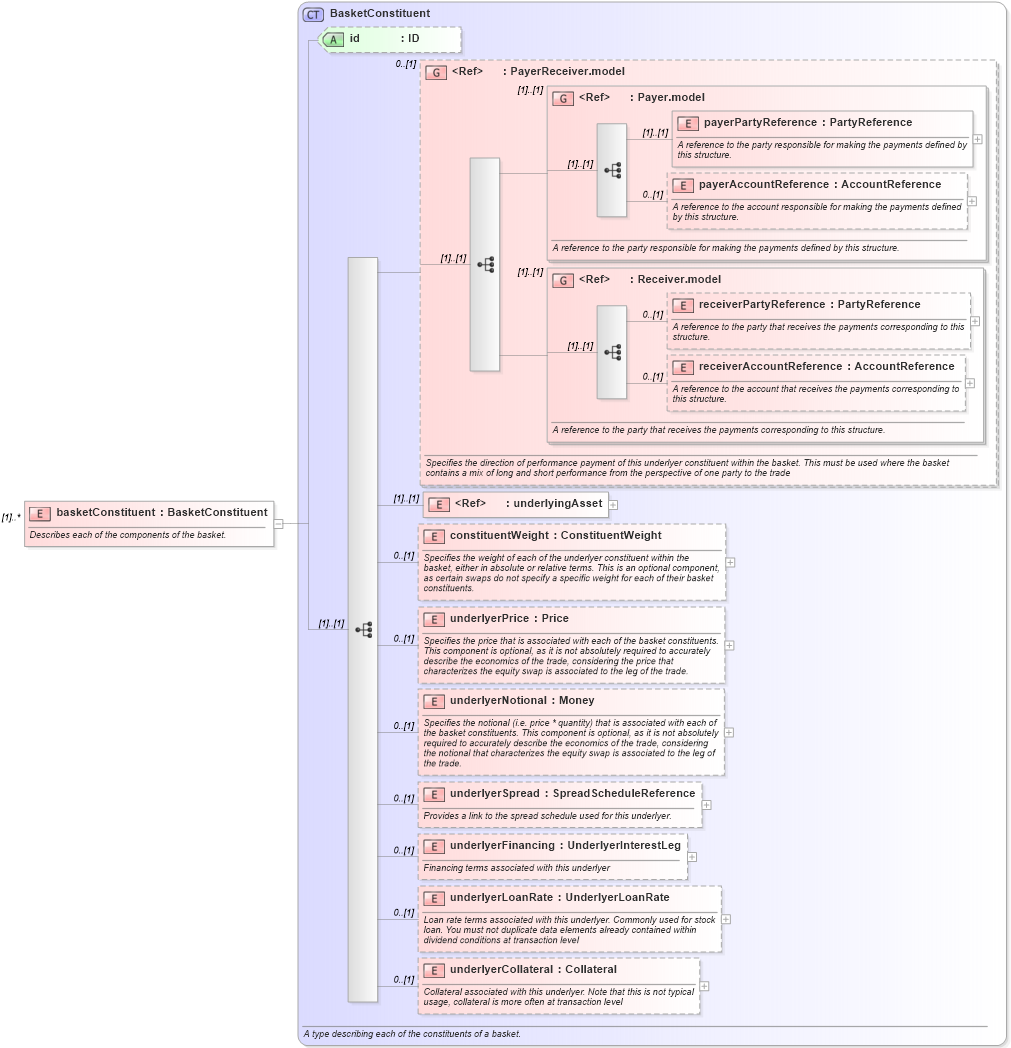

Collapse XSD Schema Diagram:
Drilldown into underlyerCollateral in schema fpml-asset-5-10_xsd3 Drilldown into underlyerLoanRate in schema fpml-asset-5-10_xsd3 Drilldown into underlyerFinancing in schema fpml-asset-5-10_xsd3 Drilldown into underlyerSpread in schema fpml-asset-5-10_xsd3 Drilldown into underlyerNotional in schema fpml-asset-5-10_xsd3 Drilldown into underlyerPrice in schema fpml-asset-5-10_xsd3 Drilldown into constituentWeight in schema fpml-asset-5-10_xsd3 Drilldown into underlyingAsset in schema fpml-asset-5-10_xsd3 Drilldown into receiverAccountReference in schema fpml-shared-5-10_xsd3 Drilldown into receiverPartyReference in schema fpml-shared-5-10_xsd3 Drilldown into Receiver.model in schema fpml-shared-5-10_xsd3 Drilldown into payerAccountReference in schema fpml-shared-5-10_xsd3 Drilldown into payerPartyReference in schema fpml-shared-5-10_xsd3 Drilldown into Payer.model in schema fpml-shared-5-10_xsd3 Drilldown into PayerReceiver.model in schema fpml-shared-5-10_xsd3 Drilldown into id in schema fpml-asset-5-10_xsd3 Drilldown into BasketConstituent in schema fpml-asset-5-10_xsd3XSD Diagram of basketConstituent in schema fpml-asset-5-10_xsd3 (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:element name="basketConstituent" type="BasketConstituent" maxOccurs="unbounded">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">Describes each of the components of the basket.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
payerPartyReference nsD:payerPartyReference (1) (1)
payerAccountReference nsD:payerAccountReference 0 (1)
receiverPartyReference nsD:receiverPartyReference 0 (1)
receiverAccountReference nsD:receiverAccountReference 0 (1)
underlyingAsset nsD:underlyingAsset (1) (1)
constituentWeight nsD:constituentWeight 0 (1)
underlyerPrice nsD:underlyerPrice 0 (1)
underlyerNotional nsD:underlyerNotional 0 (1)
underlyerSpread nsD:underlyerSpread 0 (1)
underlyerFinancing nsD:underlyerFinancing 0 (1)
underlyerLoanRate nsD:underlyerLoanRate 0 (1)
underlyerCollateral nsD:underlyerCollateral 0 (1)
<xs:group> nsD:PayerReceiver.model 0 (1)
<xs:group> nsD:Payer.model (1) (1)
<xs:group> nsD:Receiver.model (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id nsD:id Optional
Collapse Derivation Tree:
