<xsd:complexType name="DirectionalLeg" abstract="true">
<xsd:annotation>
<xsd:documentation xml:lang="en">An abstract base class for all directional leg types with effective date, termination date, where a payer makes a stream of payments of greater than zero value to a receiver.</xsd:documentation>
</xsd:annotation>
<xsd:complexContent>
<xsd:extension base="Leg">
<xsd:sequence>
<xsd:element name="legIdentifier" type="LegIdentifier" minOccurs="0" maxOccurs="unbounded">
<xsd:annotation>
<xsd:documentation xml:lang="en">Version aware identification of this leg.</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="effectiveDate" type="AdjustableOrRelativeDate" minOccurs="0">
<xsd:annotation>
<xsd:documentation xml:lang="en">Specifies the effective date of this leg of the swap. When defined in relation to a date specified somewhere else in the document (through the relativeDate component), this element will typically point to the effective date of the other leg of the swap.</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="terminationDate" type="AdjustableOrRelativeDate" minOccurs="0">
<xsd:annotation>
<xsd:documentation xml:lang="en">Specifies the termination date of this leg of the swap. When defined in relation to a date specified somewhere else in the document (through the relativeDate component), this element will typically point to the termination date of the other leg of the swap.</xsd:documentation>
</xsd:annotation>
</xsd:element>
</xsd:sequence>
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
|

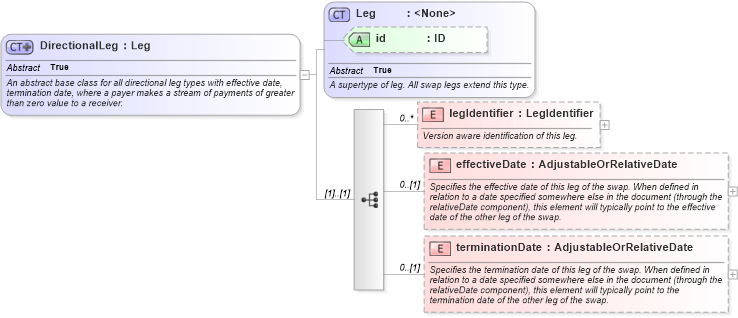

XSD Schema Diagram:
