Documentation for HR-XML - Human Resources XML
Definition Type: Element
Name: Candidate
Namespace: http://www.hr-xml.org/3
Type: nsA:CandidateType
Containing Schema: Candidate.xsd
Abstract

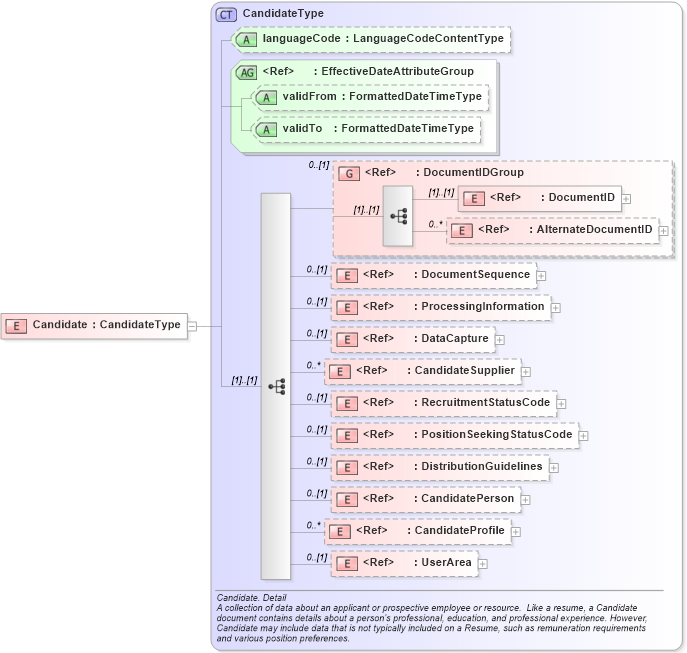

Collapse XSD Schema Diagram:
Drilldown into UserArea in schema fields_xsd Drilldown into CandidateProfile in schema components_xsd Drilldown into CandidatePerson in schema components_xsd Drilldown into DistributionGuidelines in schema components_xsd Drilldown into PositionSeekingStatusCode in schema fields_xsd Drilldown into RecruitmentStatusCode in schema fields_xsd Drilldown into CandidateSupplier in schema components_xsd Drilldown into DataCapture in schema components_xsd Drilldown into ProcessingInformation in schema components_xsd Drilldown into DocumentSequence in schema fields_xsd Drilldown into AlternateDocumentID in schema fields_xsd Drilldown into DocumentID in schema fields_xsd Drilldown into DocumentIDGroup in schema components_xsd Drilldown into validTo in schema fields_xsd Drilldown into validFrom in schema fields_xsd Drilldown into EffectiveDateAttributeGroup in schema fields_xsd Drilldown into languageCode in schema candidate_xsd Drilldown into CandidateType in schema candidate_xsdXSD Diagram of Candidate in schema candidate_xsd (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xsd:element name="Candidate" type="CandidateType" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
DocumentID nsA:DocumentID (1) (1)
AlternateDocumentID nsA:AlternateDocumentID 0 unbounded
DocumentSequence nsA:DocumentSequence 0 (1)
ProcessingInformation nsA:ProcessingInformation 0 (1)
DataCapture nsA:DataCapture 0 (1)
CandidateSupplier nsA:CandidateSupplier 0 unbounded
RecruitmentStatusCode nsA:RecruitmentStatusCode 0 (1)
PositionSeekingStatusCode nsA:PositionSeekingStatusCode 0 (1)
DistributionGuidelines nsA:DistributionGuidelines 0 (1)
CandidatePerson nsA:CandidatePerson 0 (1)
CandidateProfile nsA:CandidateProfile 0 unbounded
UserArea nsA:UserArea 0 (1)
<xs:group> nsA:DocumentIDGroup 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
languageCode nsA:languageCode Optional
validFrom nsA:validFrom Optional
validTo nsA:validTo Optional
Collapse Derivation Tree:
