Documentation for HR-XML - Human Resources XML
Definition Type: Element
Name: OrganizationChart
Namespace: http://www.hr-xml.org/3
Type: nsA:OrganizationChartType
Containing Schema: OrganizationChart.xsd
Abstract

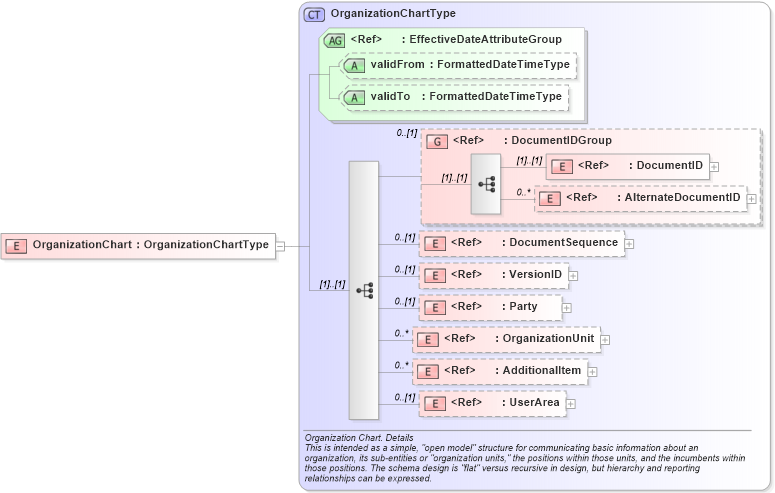

Collapse XSD Schema Diagram:
Drilldown into UserArea in schema fields_xsd Drilldown into AdditionalItem in schema components_xsd Drilldown into OrganizationUnit in schema organizationchart_xsd Drilldown into Party in schema components_xsd Drilldown into VersionID in schema fields_xsd Drilldown into DocumentSequence in schema fields_xsd Drilldown into AlternateDocumentID in schema fields_xsd Drilldown into DocumentID in schema fields_xsd Drilldown into DocumentIDGroup in schema components_xsd Drilldown into validTo in schema fields_xsd Drilldown into validFrom in schema fields_xsd Drilldown into EffectiveDateAttributeGroup in schema fields_xsd Drilldown into OrganizationChartType in schema organizationchart_xsdXSD Diagram of OrganizationChart in schema organizationchart_xsd (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xsd:element name="OrganizationChart" type="OrganizationChartType" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
DocumentID nsA:DocumentID (1) (1)
AlternateDocumentID nsA:AlternateDocumentID 0 unbounded
DocumentSequence nsA:DocumentSequence 0 (1)
VersionID nsA:VersionID 0 (1)
Party nsA:Party 0 (1)
OrganizationUnit nsA:OrganizationUnit 0 unbounded
AdditionalItem nsA:AdditionalItem 0 unbounded
UserArea nsA:UserArea 0 (1)
<xs:group> nsA:DocumentIDGroup 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
validFrom nsA:validFrom Optional
validTo nsA:validTo Optional
Collapse Derivation Tree:
