Documentation for HR-XML - Human Resources XML
Definition Type: Element
Name: SavingsPlanEnrollment
Namespace: http://www.hr-xml.org/3
Type: nsA:SavingsPlanEnrollmentType
Containing Schema: SavingsPlanEnrollment.xsd
Abstract

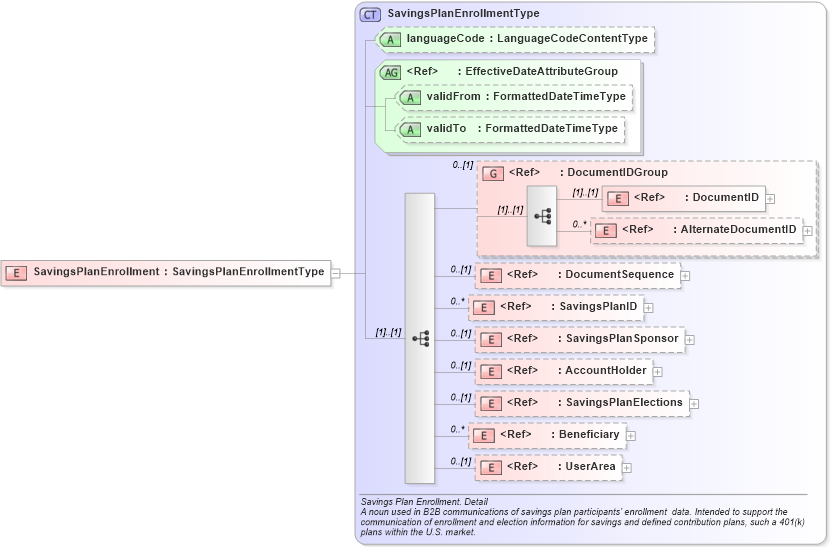

Collapse XSD Schema Diagram:
Drilldown into UserArea in schema fields_xsd Drilldown into Beneficiary in schema components_xsd Drilldown into SavingsPlanElections in schema components_xsd Drilldown into AccountHolder in schema components_xsd Drilldown into SavingsPlanSponsor in schema savingsplanenrollment_xsd Drilldown into SavingsPlanID in schema fields_xsd Drilldown into DocumentSequence in schema fields_xsd Drilldown into AlternateDocumentID in schema fields_xsd Drilldown into DocumentID in schema fields_xsd Drilldown into DocumentIDGroup in schema components_xsd Drilldown into validTo in schema fields_xsd Drilldown into validFrom in schema fields_xsd Drilldown into EffectiveDateAttributeGroup in schema fields_xsd Drilldown into languageCode in schema savingsplanenrollment_xsd Drilldown into SavingsPlanEnrollmentType in schema savingsplanenrollment_xsdXSD Diagram of SavingsPlanEnrollment in schema savingsplanenrollment_xsd (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xsd:element name="SavingsPlanEnrollment" type="SavingsPlanEnrollmentType" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
DocumentID nsA:DocumentID (1) (1)
AlternateDocumentID nsA:AlternateDocumentID 0 unbounded
DocumentSequence nsA:DocumentSequence 0 (1)
SavingsPlanID nsA:SavingsPlanID 0 unbounded
SavingsPlanSponsor nsA:SavingsPlanSponsor 0 (1)
AccountHolder nsA:AccountHolder 0 (1)
SavingsPlanElections nsA:SavingsPlanElections 0 (1)
Beneficiary nsA:Beneficiary 0 unbounded
UserArea nsA:UserArea 0 (1)
<xs:group> nsA:DocumentIDGroup 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
languageCode nsA:languageCode Optional
validFrom nsA:validFrom Optional
validTo nsA:validTo Optional
Collapse Derivation Tree:
