Documentation for HR-XML - Human Resources XML
Definition Type: ComplexType
Name: SavingsPlanEnrollmentType
Namespace: http://www.hr-xml.org/3
Containing Schema: SavingsPlanEnrollment.xsd
Abstract
Documentation:
Savings Plan Enrollment. Detail A noun used in B2B communications of savings plan participants' enrollment data. Intended to support the communication of enrollment and election information for savings and defined contribution plans, such a 401(k) plans within the U.S. market.

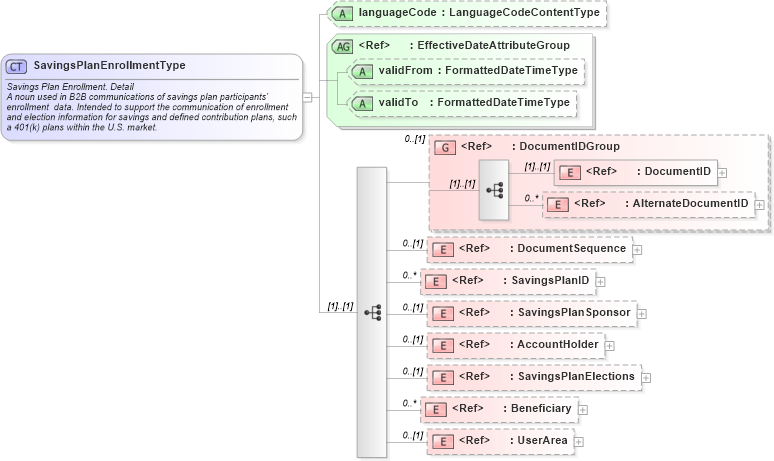

Collapse XSD Schema Diagram:
Drilldown into UserArea in schema fields_xsd Drilldown into Beneficiary in schema components_xsd Drilldown into SavingsPlanElections in schema components_xsd Drilldown into AccountHolder in schema components_xsd Drilldown into SavingsPlanSponsor in schema savingsplanenrollment_xsd Drilldown into SavingsPlanID in schema fields_xsd Drilldown into DocumentSequence in schema fields_xsd Drilldown into AlternateDocumentID in schema fields_xsd Drilldown into DocumentID in schema fields_xsd Drilldown into DocumentIDGroup in schema components_xsd Drilldown into validTo in schema fields_xsd Drilldown into validFrom in schema fields_xsd Drilldown into EffectiveDateAttributeGroup in schema fields_xsd Drilldown into languageCode in schema savingsplanenrollment_xsdXSD Diagram of SavingsPlanEnrollmentType in schema savingsplanenrollment_xsd (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xsd:complexType name="SavingsPlanEnrollmentType">
    <xsd:annotation>
        <xsd:documentation source="http://www.hr-xml.org" xml:lang="en">
            <ccts:DictionaryEntryName xmlns:ccts="urn:un:unece:uncefact:documentation:1.1">Savings Plan Enrollment. Detail</ccts:DictionaryEntryName>
            <ccts:DefinitionText xmlns:ccts="urn:un:unece:uncefact:documentation:1.1">A noun used in B2B communications of savings plan participants' enrollment  data. Intended to support the communication of enrollment and election information for savings and defined contribution plans, such a 401(k) plans within the U.S. market.</ccts:DefinitionText>
        </xsd:documentation>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:group ref="DocumentIDGroup" minOccurs="0" />
        <xsd:element ref="DocumentSequence" minOccurs="0" />
        <xsd:element ref="SavingsPlanID" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="SavingsPlanSponsor" minOccurs="0" />
        <xsd:element ref="AccountHolder" minOccurs="0" />
        <xsd:element ref="SavingsPlanElections" minOccurs="0" />
        <xsd:element ref="Beneficiary" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="UserArea" minOccurs="0" />
    </xsd:sequence>
    <xsd:attribute name="languageCode" type="LanguageCodeContentType" use="optional" />
    <xsd:attributeGroup ref="EffectiveDateAttributeGroup" />
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
DocumentID nsA:DocumentID (1) (1)
AlternateDocumentID nsA:AlternateDocumentID 0 unbounded
DocumentSequence nsA:DocumentSequence 0 (1)
SavingsPlanID nsA:SavingsPlanID 0 unbounded
SavingsPlanSponsor nsA:SavingsPlanSponsor 0 (1)
AccountHolder nsA:AccountHolder 0 (1)
SavingsPlanElections nsA:SavingsPlanElections 0 (1)
Beneficiary nsA:Beneficiary 0 unbounded
UserArea nsA:UserArea 0 (1)
<xs:group> nsA:DocumentIDGroup 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
languageCode nsA:languageCode Optional
validFrom nsA:validFrom Optional
validTo nsA:validTo Optional
Collapse Derivation Tree:
Collapse References:
nsA:SavingsPlanEnrollment
