Documentation for HR-XML - Human Resources XML
Definition Type: Element
Name: StockOptionGrant
Namespace: http://www.hr-xml.org/3
Type: nsA:StockOptionGrantType
Containing Schema: StockOptionGrant.xsd
Abstract

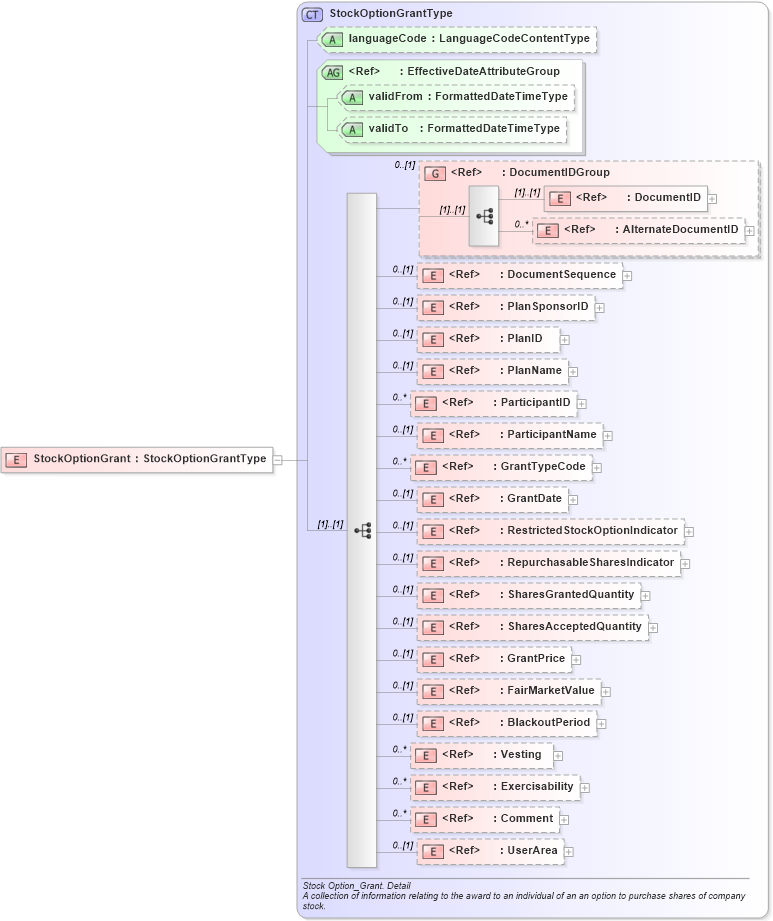

Collapse XSD Schema Diagram:
Drilldown into UserArea in schema fields_xsd Drilldown into Comment in schema fields_xsd Drilldown into Exercisability in schema components_xsd Drilldown into Vesting in schema components_xsd Drilldown into BlackoutPeriod in schema components_xsd Drilldown into FairMarketValue in schema fields_xsd Drilldown into GrantPrice in schema fields_xsd Drilldown into SharesAcceptedQuantity in schema fields_xsd Drilldown into SharesGrantedQuantity in schema fields_xsd Drilldown into RepurchasableSharesIndicator in schema fields_xsd Drilldown into RestrictedStockOptionIndicator in schema fields_xsd Drilldown into GrantDate in schema fields_xsd Drilldown into GrantTypeCode in schema fields_xsd Drilldown into ParticipantName in schema components_xsd Drilldown into ParticipantID in schema fields_xsd Drilldown into PlanName in schema fields_xsd Drilldown into PlanID in schema fields_xsd Drilldown into PlanSponsorID in schema fields_xsd Drilldown into DocumentSequence in schema fields_xsd Drilldown into AlternateDocumentID in schema fields_xsd Drilldown into DocumentID in schema fields_xsd Drilldown into DocumentIDGroup in schema components_xsd Drilldown into validTo in schema fields_xsd Drilldown into validFrom in schema fields_xsd Drilldown into EffectiveDateAttributeGroup in schema fields_xsd Drilldown into languageCode in schema stockoptiongrant_xsd Drilldown into StockOptionGrantType in schema stockoptiongrant_xsdXSD Diagram of StockOptionGrant in schema stockoptiongrant_xsd (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xsd:element name="StockOptionGrant" type="StockOptionGrantType" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
DocumentID nsA:DocumentID (1) (1)
AlternateDocumentID nsA:AlternateDocumentID 0 unbounded
DocumentSequence nsA:DocumentSequence 0 (1)
PlanSponsorID nsA:PlanSponsorID 0 (1)
PlanID nsA:PlanID 0 (1)
PlanName nsA:PlanName 0 (1)
ParticipantID nsA:ParticipantID 0 unbounded
ParticipantName nsA:ParticipantName 0 (1)
GrantTypeCode nsA:GrantTypeCode 0 unbounded
GrantDate nsA:GrantDate 0 (1)
RestrictedStockOptionIndicator nsA:RestrictedStockOptionIndicator 0 (1)
RepurchasableSharesIndicator nsA:RepurchasableSharesIndicator 0 (1)
SharesGrantedQuantity nsA:SharesGrantedQuantity 0 (1)
SharesAcceptedQuantity nsA:SharesAcceptedQuantity 0 (1)
GrantPrice nsA:GrantPrice 0 (1)
FairMarketValue nsA:FairMarketValue 0 (1)
BlackoutPeriod nsA:BlackoutPeriod 0 (1)
Vesting nsA:Vesting 0 unbounded
Exercisability nsA:Exercisability 0 unbounded
Comment nsA:Comment 0 unbounded
UserArea nsA:UserArea 0 (1)
<xs:group> nsA:DocumentIDGroup 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
languageCode nsA:languageCode Optional
validFrom nsA:validFrom Optional
validTo nsA:validTo Optional
Collapse Derivation Tree:
