Definition Type: ComplexType
Name: TimeCardType
Namespace: http://www.hr-xml.org/3
Containing Schema: TimeCard.xsd
Abstract
Documentation:
Time Card. Details A record of time worked; associated expenses to be reimbursed; and/or allowances associated with the engagement.

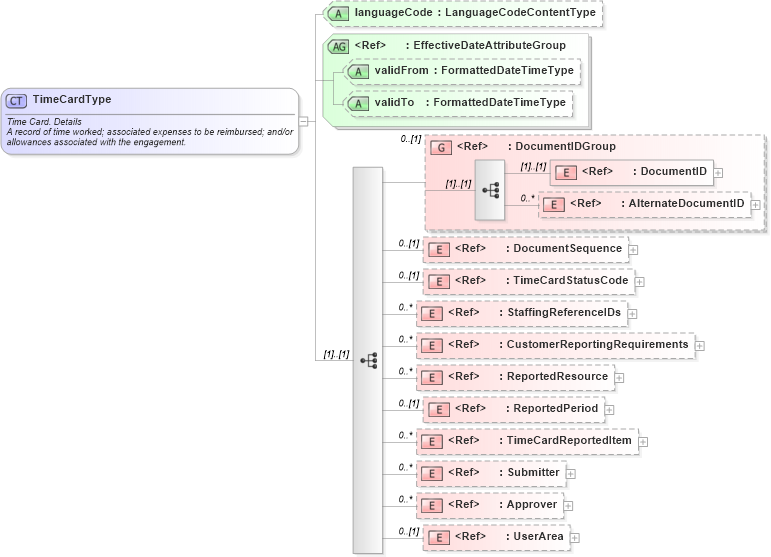

Collapse XSD Schema Diagram:
Drilldown into UserArea in schema fields_xsd Drilldown into Approver in schema components_xsd Drilldown into Submitter in schema components_xsd Drilldown into TimeCardReportedItem in schema timecard_xsd Drilldown into ReportedPeriod in schema components_xsd Drilldown into ReportedResource in schema components_xsd Drilldown into CustomerReportingRequirements in schema components_xsd Drilldown into StaffingReferenceIDs in schema components_xsd Drilldown into TimeCardStatusCode in schema fields_xsd Drilldown into DocumentSequence in schema fields_xsd Drilldown into AlternateDocumentID in schema fields_xsd Drilldown into DocumentID in schema fields_xsd Drilldown into DocumentIDGroup in schema components_xsd Drilldown into validTo in schema fields_xsd Drilldown into validFrom in schema fields_xsd Drilldown into EffectiveDateAttributeGroup in schema fields_xsd Drilldown into languageCode in schema timecard_xsdXSD Diagram of TimeCardType in schema timecard_xsd (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xsd:complexType name="TimeCardType">
    <xsd:annotation>
        <xsd:documentation source="http://www.hr-xml.org" xml:lang="en">
            <ccts:DictionaryEntryName xmlns:ccts="urn:un:unece:uncefact:documentation:1.1">Time Card. Details</ccts:DictionaryEntryName>
            <ccts:DefinitionText xmlns:ccts="urn:un:unece:uncefact:documentation:1.1">A record of time worked; associated expenses to be reimbursed; and/or allowances associated with the engagement.</ccts:DefinitionText>
        </xsd:documentation>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:group ref="DocumentIDGroup" minOccurs="0" />
        <xsd:element ref="DocumentSequence" minOccurs="0" />
        <xsd:element ref="TimeCardStatusCode" minOccurs="0" />
        <xsd:element ref="StaffingReferenceIDs" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="CustomerReportingRequirements" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="ReportedResource" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="ReportedPeriod" minOccurs="0" />
        <xsd:element ref="TimeCardReportedItem" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="Submitter" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="Approver" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="UserArea" minOccurs="0" />
    </xsd:sequence>
    <xsd:attribute name="languageCode" type="LanguageCodeContentType" use="optional" />
    <xsd:attributeGroup ref="EffectiveDateAttributeGroup" />
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
DocumentID nsA:DocumentID (1) (1)
AlternateDocumentID nsA:AlternateDocumentID 0 unbounded
DocumentSequence nsA:DocumentSequence 0 (1)
TimeCardStatusCode nsA:TimeCardStatusCode 0 (1)
StaffingReferenceIDs nsA:StaffingReferenceIDs 0 unbounded
CustomerReportingRequirements nsA:CustomerReportingRequirements 0 unbounded
ReportedResource nsA:ReportedResource 0 unbounded
ReportedPeriod nsA:ReportedPeriod 0 (1)
TimeCardReportedItem nsA:TimeCardReportedItem 0 unbounded
Submitter nsA:Submitter 0 unbounded
Approver nsA:Approver 0 unbounded
UserArea nsA:UserArea 0 (1)
<xs:group> nsA:DocumentIDGroup 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
languageCode nsA:languageCode Optional
validFrom nsA:validFrom Optional
validTo nsA:validTo Optional
Collapse Derivation Tree:
Collapse References:
nsA:TimeCard
