Documentation for National Information Exchange Model (NEIM)
Definition Type: ComplexType
Name: ActivityType
Namespace: http://niem.gov/niem/niem-core/2.0
Type: s:ComplexObjectType
Containing Schema: niem-core.xsd
Abstract
Documentation:
A data type for a single or set of related actions, events, or process steps.

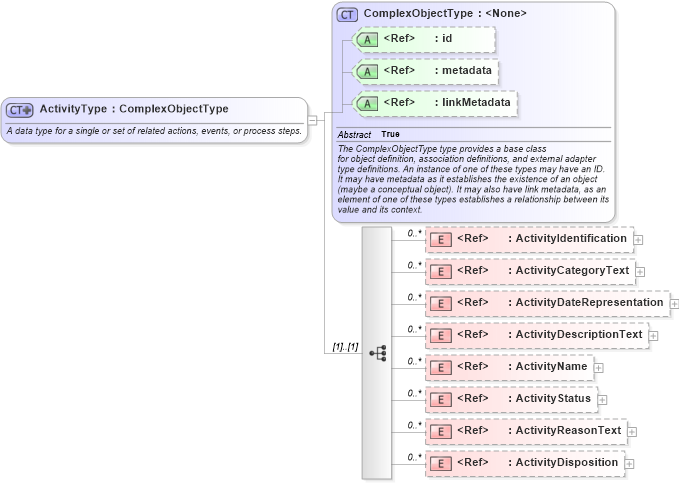

Collapse XSD Schema Diagram:
Drilldown into ActivityDisposition in schema niem-core_xsd Drilldown into ActivityReasonText in schema niem-core_xsd Drilldown into ActivityStatus in schema niem-core_xsd Drilldown into ActivityName in schema niem-core_xsd Drilldown into ActivityDescriptionText in schema niem-core_xsd Drilldown into ActivityDateRepresentation in schema niem-core_xsd Drilldown into ActivityCategoryText in schema niem-core_xsd Drilldown into ActivityIdentification in schema niem-core_xsd Drilldown into linkMetadata in schema structures_xsd Drilldown into metadata in schema structures_xsd Drilldown into id in schema structures_xsd Drilldown into ComplexObjectType in schema structures_xsdXSD Diagram of ActivityType in schema niem-core_xsd (National Information Exchange Model (NEIM))
Collapse XSD Schema Code:
<xsd:complexType name="ActivityType">
    <xsd:annotation>
        <xsd:documentation>A data type for a single or set of related actions, events, or process steps.
</xsd:documentation>
        <xsd:appinfo>
            <i:Base i:namespace="http://niem.gov/niem/structures/2.0" i:name="Object" xmlns:i="http://niem.gov/niem/appinfo/2.0" />
        </xsd:appinfo>
    </xsd:annotation>
    <xsd:complexContent>
        <xsd:extension base="s:ComplexObjectType">
            <xsd:sequence>
                <xsd:element ref="nc:ActivityIdentification" minOccurs="0" maxOccurs="unbounded" />
                <xsd:element ref="nc:ActivityCategoryText" minOccurs="0" maxOccurs="unbounded" />
                <xsd:element ref="nc:ActivityDateRepresentation" minOccurs="0" maxOccurs="unbounded" />
                <xsd:element ref="nc:ActivityDescriptionText" minOccurs="0" maxOccurs="unbounded" />
                <xsd:element ref="nc:ActivityName" minOccurs="0" maxOccurs="unbounded" />
                <xsd:element ref="nc:ActivityStatus" minOccurs="0" maxOccurs="unbounded" />
                <xsd:element ref="nc:ActivityReasonText" minOccurs="0" maxOccurs="unbounded" />
                <xsd:element ref="nc:ActivityDisposition" minOccurs="0" maxOccurs="unbounded" />
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ActivityIdentification nc:ActivityIdentification 0 unbounded
ActivityCategoryText nc:ActivityCategoryText 0 unbounded
ActivityDateRepresentation nc:ActivityDateRepresentation 0 unbounded
ActivityDescriptionText nc:ActivityDescriptionText 0 unbounded
ActivityName nc:ActivityName 0 unbounded
ActivityStatus nc:ActivityStatus 0 unbounded
ActivityReasonText nc:ActivityReasonText 0 unbounded
ActivityDisposition nc:ActivityDisposition 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
id s:id (Optional)
metadata s:metadata (Optional)
linkMetadata s:linkMetadata (Optional)
Collapse Derivation Tree:
Collapse References:
nc:Activity, em:AlarmEventType, im:AlienStudentDisciplinaryActionType, im:AlienStudentProgramExtensionRequestType, j:ArrestType, it:ArrivalType, nc:AssessmentType, j:BailType, j:BondType, j:BookingType, nc:CaseType, j:CitationType, j:CommunityService, j:ConditionGroupType, nc:ConditionType, it:ConsignmentType, j:ConvictionType, j:Counseling, j:CourtActivityType, j:CourtEventType, j:CourtOrderType, j:CriminalTraitAction, j:CustodyTransferType, nc:DisciplinaryActionCommunityService, nc:DisciplinaryActionCounseling, nc:DisciplinaryActionType, nc:DriverLicenseWithdrawalType, j:ForceType, nc:IncidentEvent, nc:IncidentType, nc:IntoxicationRelatedActivity, nc:ItemHoldingType, nc:ItemTransactionType, j:PassagePointType, nc:PersonEncounterType, j:PleaType, nc:ProgramAction, nc:ProgramType, nc:ProgressType, j:PropertySeizureType, nc:ReferralActivitync:ReferralType, nc:ReleaseType, im:RequestType, j:SanctionType, j:SentenceModificationType, j:SentenceType, j:ServiceCallType, j:SupervisionRestrictionType, j:TermType, im:TransferType, nc:VehicleInspectionType, j:VerdictType, j:VisitationType,
