Definition Type: ComplexType
Name: tOnAlarmPick
Namespace: http://docs.oasis-open.org/wsbpel/2.0/process/executable
Type: nsB:tExtensibleElements
Containing Schema: ws-bpel_executable.xsd
Abstract

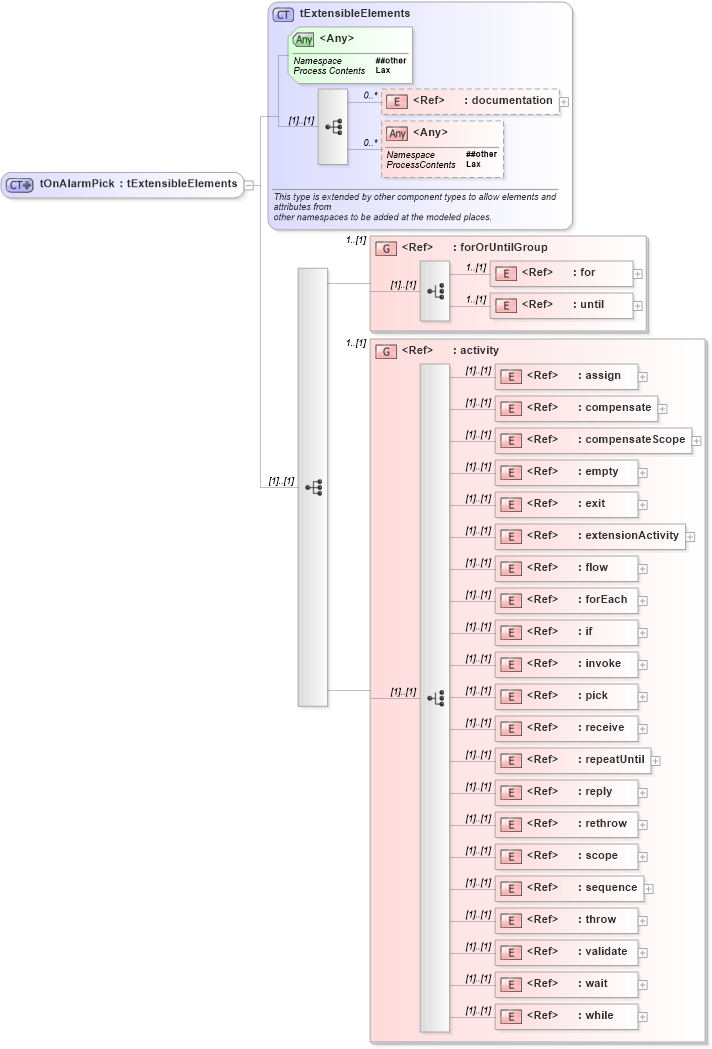

Collapse XSD Schema Diagram:
Drilldown into while in schema ws-bpel_executable_xsd Drilldown into wait in schema ws-bpel_executable_xsd Drilldown into validate in schema ws-bpel_executable_xsd Drilldown into throw in schema ws-bpel_executable_xsd Drilldown into sequence in schema ws-bpel_executable_xsd Drilldown into scope in schema ws-bpel_executable_xsd Drilldown into rethrow in schema ws-bpel_executable_xsd Drilldown into reply in schema ws-bpel_executable_xsd Drilldown into repeatUntil in schema ws-bpel_executable_xsd Drilldown into receive in schema ws-bpel_executable_xsd Drilldown into pick in schema ws-bpel_executable_xsd Drilldown into invoke in schema ws-bpel_executable_xsd Drilldown into if in schema ws-bpel_executable_xsd Drilldown into forEach in schema ws-bpel_executable_xsd Drilldown into flow in schema ws-bpel_executable_xsd Drilldown into extensionActivity in schema ws-bpel_executable_xsd Drilldown into exit in schema ws-bpel_executable_xsd Drilldown into empty in schema ws-bpel_executable_xsd Drilldown into compensateScope in schema ws-bpel_executable_xsd Drilldown into compensate in schema ws-bpel_executable_xsd Drilldown into assign in schema ws-bpel_executable_xsd Drilldown into activity in schema ws-bpel_executable_xsd Drilldown into until in schema ws-bpel_executable_xsd Drilldown into for in schema ws-bpel_executable_xsd Drilldown into forOrUntilGroup in schema ws-bpel_executable_xsd Drilldown into documentation in schema ws-bpel_executable_xsd Drilldown into tExtensibleElements in schema ws-bpel_executable_xsdXSD Diagram of tOnAlarmPick in schema ws-bpel_executable_xsd (OASIS Web Services Business Process Execution Language (WSBPEL) TC)
Collapse XSD Schema Code:
<xsd:complexType name="tOnAlarmPick">
    <xsd:complexContent>
        <xsd:extension base="tExtensibleElements">
            <xsd:sequence>
                <xsd:group ref="forOrUntilGroup" minOccurs="1" />
                <xsd:group ref="activity" minOccurs="1" />
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
documentation nsB:documentation 0 unbounded
for nsB:for 1 (1)
until nsB:until 1 (1)
assign nsB:assign (1) (1)
compensate nsB:compensate (1) (1)
compensateScope nsB:compensateScope (1) (1)
empty nsB:empty (1) (1)
exit nsB:exit (1) (1)
extensionActivity nsB:extensionActivity (1) (1)
flow nsB:flow (1) (1)
forEach nsB:forEach (1) (1)
if nsB:if (1) (1)
invoke nsB:invoke (1) (1)
pick nsB:pick (1) (1)
receive nsB:receive (1) (1)
repeatUntil nsB:repeatUntil (1) (1)
reply nsB:reply (1) (1)
rethrow nsB:rethrow (1) (1)
scope nsB:scope (1) (1)
sequence nsB:sequence (1) (1)
throw nsB:throw (1) (1)
validate nsB:validate (1) (1)
wait nsB:wait (1) (1)
while nsB:while (1) (1)
<xs:any> Allowed namespace: '##other' 0 unbounded
<xs:group> nsB:forOrUntilGroup 1 (1)
<xs:group> nsB:activity 1 (1)
Collapse Child Attributes:
Name Type Default Value Use
<anyAttribute> Allowed namespace: '##other'
Collapse Derivation Tree:
Collapse References:
nsB:onAlarm
