Definition Type: ComplexType
Name: tProcess
Namespace: http://docs.oasis-open.org/wsbpel/2.0/process/executable
Type: nsB:tExtensibleElements
Containing Schema: ws-bpel_executable.xsd
Abstract

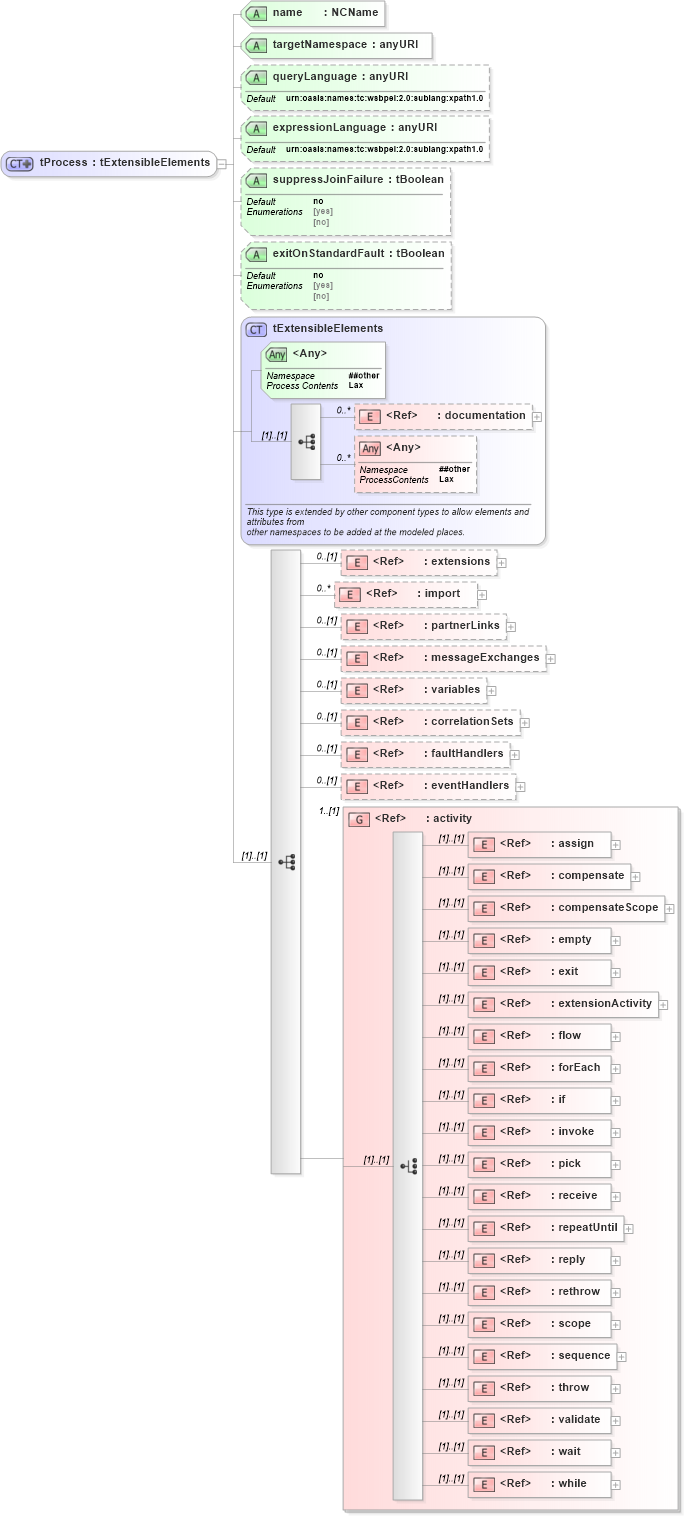

Collapse XSD Schema Diagram:
Drilldown into while in schema ws-bpel_executable_xsd Drilldown into wait in schema ws-bpel_executable_xsd Drilldown into validate in schema ws-bpel_executable_xsd Drilldown into throw in schema ws-bpel_executable_xsd Drilldown into sequence in schema ws-bpel_executable_xsd Drilldown into scope in schema ws-bpel_executable_xsd Drilldown into rethrow in schema ws-bpel_executable_xsd Drilldown into reply in schema ws-bpel_executable_xsd Drilldown into repeatUntil in schema ws-bpel_executable_xsd Drilldown into receive in schema ws-bpel_executable_xsd Drilldown into pick in schema ws-bpel_executable_xsd Drilldown into invoke in schema ws-bpel_executable_xsd Drilldown into if in schema ws-bpel_executable_xsd Drilldown into forEach in schema ws-bpel_executable_xsd Drilldown into flow in schema ws-bpel_executable_xsd Drilldown into extensionActivity in schema ws-bpel_executable_xsd Drilldown into exit in schema ws-bpel_executable_xsd Drilldown into empty in schema ws-bpel_executable_xsd Drilldown into compensateScope in schema ws-bpel_executable_xsd Drilldown into compensate in schema ws-bpel_executable_xsd Drilldown into assign in schema ws-bpel_executable_xsd Drilldown into activity in schema ws-bpel_executable_xsd Drilldown into eventHandlers in schema ws-bpel_executable_xsd Drilldown into faultHandlers in schema ws-bpel_executable_xsd Drilldown into correlationSets in schema ws-bpel_executable_xsd Drilldown into variables in schema ws-bpel_executable_xsd Drilldown into messageExchanges in schema ws-bpel_executable_xsd Drilldown into partnerLinks in schema ws-bpel_executable_xsd Drilldown into import in schema ws-bpel_executable_xsd Drilldown into extensions in schema ws-bpel_executable_xsd Drilldown into documentation in schema ws-bpel_executable_xsd Drilldown into tExtensibleElements in schema ws-bpel_executable_xsd Drilldown into exitOnStandardFault in schema ws-bpel_executable_xsd Drilldown into suppressJoinFailure in schema ws-bpel_executable_xsd Drilldown into expressionLanguage in schema ws-bpel_executable_xsd Drilldown into queryLanguage in schema ws-bpel_executable_xsd Drilldown into targetNamespace in schema ws-bpel_executable_xsd Drilldown into name in schema ws-bpel_executable_xsdXSD Diagram of tProcess in schema ws-bpel_executable_xsd (OASIS Web Services Business Process Execution Language (WSBPEL) TC)
Collapse XSD Schema Code:
<xsd:complexType name="tProcess">
    <xsd:complexContent>
        <xsd:extension base="tExtensibleElements">
            <xsd:sequence>
                <xsd:element ref="extensions" minOccurs="0" />
                <xsd:element ref="import" minOccurs="0" maxOccurs="unbounded" />
                <xsd:element ref="partnerLinks" minOccurs="0" />
                <xsd:element ref="messageExchanges" minOccurs="0" />
                <xsd:element ref="variables" minOccurs="0" />
                <xsd:element ref="correlationSets" minOccurs="0" />
                <xsd:element ref="faultHandlers" minOccurs="0" />
                <xsd:element ref="eventHandlers" minOccurs="0" />
                <xsd:group ref="activity" minOccurs="1" />
            </xsd:sequence>
            <xsd:attribute name="name" type="xsd:NCName" use="required" />
            <xsd:attribute name="targetNamespace" type="xsd:anyURI" use="required" />
            <xsd:attribute name="queryLanguage" type="xsd:anyURI" default="urn:oasis:names:tc:wsbpel:2.0:sublang:xpath1.0" />
            <xsd:attribute name="expressionLanguage" type="xsd:anyURI" default="urn:oasis:names:tc:wsbpel:2.0:sublang:xpath1.0" />
            <xsd:attribute name="suppressJoinFailure" type="tBoolean" default="no" />
            <xsd:attribute name="exitOnStandardFault" type="tBoolean" default="no" />
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
documentation nsB:documentation 0 unbounded
extensions nsB:extensions 0 (1)
import nsB:import 0 unbounded
partnerLinks nsB:partnerLinks 0 (1)
messageExchanges nsB:messageExchanges 0 (1)
variables nsB:variables 0 (1)
correlationSets nsB:correlationSets 0 (1)
faultHandlers nsB:faultHandlers 0 (1)
eventHandlers nsB:eventHandlers 0 (1)
assign nsB:assign (1) (1)
compensate nsB:compensate (1) (1)
compensateScope nsB:compensateScope (1) (1)
empty nsB:empty (1) (1)
exit nsB:exit (1) (1)
extensionActivity nsB:extensionActivity (1) (1)
flow nsB:flow (1) (1)
forEach nsB:forEach (1) (1)
if nsB:if (1) (1)
invoke nsB:invoke (1) (1)
pick nsB:pick (1) (1)
receive nsB:receive (1) (1)
repeatUntil nsB:repeatUntil (1) (1)
reply nsB:reply (1) (1)
rethrow nsB:rethrow (1) (1)
scope nsB:scope (1) (1)
sequence nsB:sequence (1) (1)
throw nsB:throw (1) (1)
validate nsB:validate (1) (1)
wait nsB:wait (1) (1)
while nsB:while (1) (1)
<xs:any> Allowed namespace: '##other' 0 unbounded
<xs:group> nsB:activity 1 (1)
Collapse Child Attributes:
Name Type Default Value Use
name nsB:name Required
targetNamespace nsB:targetNamespace Required
queryLanguage nsB:queryLanguage urn:oasis:names:tc:wsbpel:2.0:sublang:xpath1.0 (Optional)
expressionLanguage nsB:expressionLanguage urn:oasis:names:tc:wsbpel:2.0:sublang:xpath1.0 (Optional)
suppressJoinFailure nsB:suppressJoinFailure no (Optional)
exitOnStandardFault nsB:exitOnStandardFault no (Optional)
<anyAttribute> Allowed namespace: '##other'
Collapse Derivation Tree:
Collapse References:
nsB:process
