Documentation for OASIS Universal Business Language (UBL) TC
Definition Type: ComplexType
Name: ReceiptLineType
Namespace: urn:oasis:names:specification:ubl:schema:xsd:CommonAggregateComponents-1.0
Containing Schema: UBL-CommonAggregateComponents-1.0.xsd
Abstract
Documentation:
ABIE Receipt Line. Details contains the line item and package details for the delivery of an item on the Despatch Advice, when the despatch is not organised by transport handling unit (THU) Receipt Line

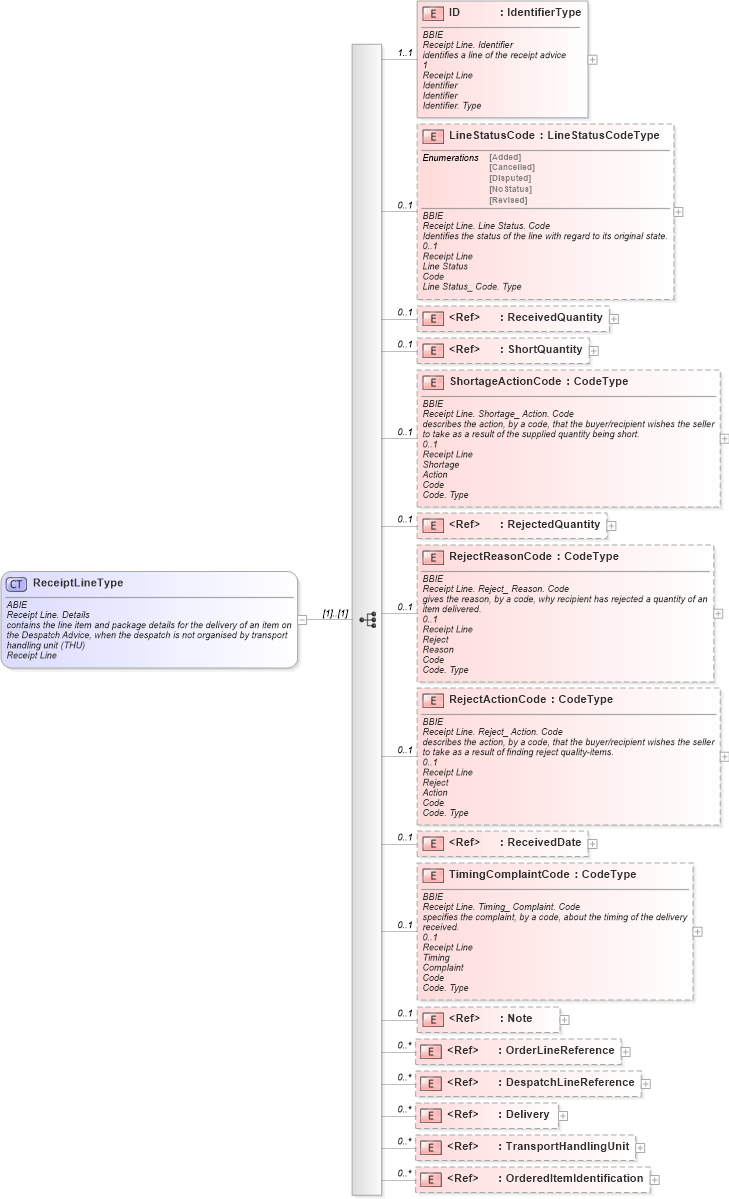

Collapse XSD Schema Diagram:
Drilldown into OrderedItemIdentification in schema ubl-commonaggregatecomponents-1_0_xsd Drilldown into TransportHandlingUnit in schema ubl-commonaggregatecomponents-1_0_xsd Drilldown into Delivery in schema ubl-commonaggregatecomponents-1_0_xsd Drilldown into DespatchLineReference in schema ubl-commonaggregatecomponents-1_0_xsd Drilldown into OrderLineReference in schema ubl-commonaggregatecomponents-1_0_xsd Drilldown into Note in schema ubl-commonbasiccomponents-1_0_xsd Drilldown into TimingComplaintCode in schema ubl-commonaggregatecomponents-1_0_xsd Drilldown into ReceivedDate in schema ubl-commonbasiccomponents-1_0_xsd Drilldown into RejectActionCode in schema ubl-commonaggregatecomponents-1_0_xsd Drilldown into RejectReasonCode in schema ubl-commonaggregatecomponents-1_0_xsd Drilldown into RejectedQuantity in schema ubl-commonbasiccomponents-1_0_xsd Drilldown into ShortageActionCode in schema ubl-commonaggregatecomponents-1_0_xsd Drilldown into ShortQuantity in schema ubl-commonbasiccomponents-1_0_xsd Drilldown into ReceivedQuantity in schema ubl-commonbasiccomponents-1_0_xsd Drilldown into LineStatusCode in schema ubl-commonaggregatecomponents-1_0_xsd Drilldown into ID in schema ubl-commonaggregatecomponents-1_0_xsdXSD Diagram of ReceiptLineType in schema ubl-commonaggregatecomponents-1_0_xsd (OASIS Universal Business Language (UBL) TC)
Collapse XSD Schema Code:
<xsd:complexType name="ReceiptLineType">
    <xsd:annotation>
        <xsd:documentation>
            <ccts:Component xmlns:ccts="urn:oasis:names:specification:ubl:schema:xsd:CoreComponentParameters-1.0">
                <ccts:ComponentType>ABIE</ccts:ComponentType>
                <ccts:DictionaryEntryName>Receipt Line. Details</ccts:DictionaryEntryName>
                <ccts:Definition>contains the line item and package details for the delivery of an item on the Despatch Advice, when the despatch is not organised by transport handling unit (THU)</ccts:Definition>
                <ccts:ObjectClass>Receipt Line</ccts:ObjectClass>
            </ccts:Component>
        </xsd:documentation>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:element name="ID" type="udt:IdentifierType" minOccurs="1" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:oasis:names:specification:ubl:schema:xsd:CoreComponentParameters-1.0">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Receipt Line. Identifier</ccts:DictionaryEntryName>
                        <ccts:Definition>identifies a line of the receipt advice</ccts:Definition>
                        <ccts:Cardinality>1</ccts:Cardinality>
                        <ccts:ObjectClass>Receipt Line</ccts:ObjectClass>
                        <ccts:PropertyTerm>Identifier</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Identifier</ccts:RepresentationTerm>
                        <ccts:DataType>Identifier. Type</ccts:DataType>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="LineStatusCode" type="lstat:LineStatusCodeType" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:oasis:names:specification:ubl:schema:xsd:CoreComponentParameters-1.0">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Receipt Line. Line Status. Code</ccts:DictionaryEntryName>
                        <ccts:Definition>Identifies the status of the line with regard to its original state.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Receipt Line</ccts:ObjectClass>
                        <ccts:PropertyTerm>Line Status</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Code</ccts:RepresentationTerm>
                        <ccts:DataType>Line Status_ Code. Type</ccts:DataType>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:ReceivedQuantity" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:oasis:names:specification:ubl:schema:xsd:CoreComponentParameters-1.0">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Receipt Line. Received_ Quantity. Quantity</ccts:DictionaryEntryName>
                        <ccts:Definition>gives the quantity of an item actually received by the recipient</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Receipt Line</ccts:ObjectClass>
                        <ccts:PropertyTermQualifier>Received</ccts:PropertyTermQualifier>
                        <ccts:PropertyTerm>Quantity</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Quantity</ccts:RepresentationTerm>
                        <ccts:DataType>Quantity. Type</ccts:DataType>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:ShortQuantity" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:oasis:names:specification:ubl:schema:xsd:CoreComponentParameters-1.0">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Receipt Line. Short_ Quantity. Quantity</ccts:DictionaryEntryName>
                        <ccts:Definition>gives the quantity of an item that the recipient found to be missing as compared with the quantity declared as despatched by the seller.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Receipt Line</ccts:ObjectClass>
                        <ccts:PropertyTermQualifier>Short</ccts:PropertyTermQualifier>
                        <ccts:PropertyTerm>Quantity</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Quantity</ccts:RepresentationTerm>
                        <ccts:DataType>Quantity. Type</ccts:DataType>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="ShortageActionCode" type="udt:CodeType" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:oasis:names:specification:ubl:schema:xsd:CoreComponentParameters-1.0">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Receipt Line. Shortage_ Action. Code</ccts:DictionaryEntryName>
                        <ccts:Definition>describes the action, by a code, that the buyer/recipient wishes the seller to take as a result of the supplied quantity being short.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Receipt Line</ccts:ObjectClass>
                        <ccts:PropertyTermQualifier>Shortage</ccts:PropertyTermQualifier>
                        <ccts:PropertyTerm>Action</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Code</ccts:RepresentationTerm>
                        <ccts:DataType>Code. Type</ccts:DataType>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:RejectedQuantity" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:oasis:names:specification:ubl:schema:xsd:CoreComponentParameters-1.0">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Receipt Line. Rejected_ Quantity. Quantity</ccts:DictionaryEntryName>
                        <ccts:Definition>gives the quantity of an item on a delivery that the recipient rejects for some reason.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Receipt Line</ccts:ObjectClass>
                        <ccts:PropertyTermQualifier>Rejected</ccts:PropertyTermQualifier>
                        <ccts:PropertyTerm>Quantity</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Quantity</ccts:RepresentationTerm>
                        <ccts:DataType>Quantity. Type</ccts:DataType>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="RejectReasonCode" type="udt:CodeType" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:oasis:names:specification:ubl:schema:xsd:CoreComponentParameters-1.0">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Receipt Line. Reject_ Reason. Code</ccts:DictionaryEntryName>
                        <ccts:Definition>gives the reason, by a code, why recipient has rejected a quantity of an item delivered.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Receipt Line</ccts:ObjectClass>
                        <ccts:PropertyTermQualifier>Reject</ccts:PropertyTermQualifier>
                        <ccts:PropertyTerm>Reason</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Code</ccts:RepresentationTerm>
                        <ccts:DataType>Code. Type</ccts:DataType>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="RejectActionCode" type="udt:CodeType" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:oasis:names:specification:ubl:schema:xsd:CoreComponentParameters-1.0">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Receipt Line. Reject_ Action. Code</ccts:DictionaryEntryName>
                        <ccts:Definition>describes the action, by a code, that the buyer/recipient wishes the seller to take as a result of finding reject quality-items.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Receipt Line</ccts:ObjectClass>
                        <ccts:PropertyTermQualifier>Reject</ccts:PropertyTermQualifier>
                        <ccts:PropertyTerm>Action</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Code</ccts:RepresentationTerm>
                        <ccts:DataType>Code. Type</ccts:DataType>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:ReceivedDate" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:oasis:names:specification:ubl:schema:xsd:CoreComponentParameters-1.0">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Receipt Line. Received_ Date. Date</ccts:DictionaryEntryName>
                        <ccts:Definition>gives the date when the delivery was received.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Receipt Line</ccts:ObjectClass>
                        <ccts:PropertyTermQualifier>Received</ccts:PropertyTermQualifier>
                        <ccts:PropertyTerm>Date</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Date</ccts:RepresentationTerm>
                        <ccts:DataType>Date_Date Time. Type</ccts:DataType>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="TimingComplaintCode" type="udt:CodeType" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:oasis:names:specification:ubl:schema:xsd:CoreComponentParameters-1.0">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Receipt Line. Timing_ Complaint. Code</ccts:DictionaryEntryName>
                        <ccts:Definition>specifies the complaint, by a code, about the timing of the delivery received.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Receipt Line</ccts:ObjectClass>
                        <ccts:PropertyTermQualifier>Timing</ccts:PropertyTermQualifier>
                        <ccts:PropertyTerm>Complaint</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Code</ccts:RepresentationTerm>
                        <ccts:DataType>Code. Type</ccts:DataType>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:Note" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:oasis:names:specification:ubl:schema:xsd:CoreComponentParameters-1.0">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Receipt Line. Note. Text</ccts:DictionaryEntryName>
                        <ccts:Definition>contains any free form text pertinent to the line of the document. This element may contain notes or any other similar information that is not contained explicitly in another structure.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Receipt Line</ccts:ObjectClass>
                        <ccts:PropertyTerm>Note</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Text</ccts:RepresentationTerm>
                        <ccts:DataType>Text. Type</ccts:DataType>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="OrderLineReference" minOccurs="0" maxOccurs="unbounded">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:oasis:names:specification:ubl:schema:xsd:CoreComponentParameters-1.0">
                        <ccts:ComponentType>ASBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Receipt Line. Order Line Reference</ccts:DictionaryEntryName>
                        <ccts:Definition>associates the receipt line with one or more order lines</ccts:Definition>
                        <ccts:Cardinality>0..n</ccts:Cardinality>
                        <ccts:ObjectClass>Receipt Line</ccts:ObjectClass>
                        <ccts:PropertyTerm>Order Line Reference</ccts:PropertyTerm>
                        <ccts:AssociatedObjectClass>Order Line Reference</ccts:AssociatedObjectClass>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="DespatchLineReference" minOccurs="0" maxOccurs="unbounded">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:oasis:names:specification:ubl:schema:xsd:CoreComponentParameters-1.0">
                        <ccts:ComponentType>ASBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Receipt Line. Despatch_ Line Reference. Line Reference</ccts:DictionaryEntryName>
                        <ccts:Definition>associates the receipt line with one or more despatch advice lines</ccts:Definition>
                        <ccts:Cardinality>0..n</ccts:Cardinality>
                        <ccts:ObjectClass>Receipt Line</ccts:ObjectClass>
                        <ccts:PropertyTermQualifier>Despatch</ccts:PropertyTermQualifier>
                        <ccts:PropertyTerm>Line Reference</ccts:PropertyTerm>
                        <ccts:AssociatedObjectClass>Line Reference</ccts:AssociatedObjectClass>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="Delivery" minOccurs="0" maxOccurs="unbounded">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:oasis:names:specification:ubl:schema:xsd:CoreComponentParameters-1.0">
                        <ccts:ComponentType>ASBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Receipt Line. Delivery</ccts:DictionaryEntryName>
                        <ccts:Definition>associates the line with details of a delivery (or deliveries)</ccts:Definition>
                        <ccts:Cardinality>0..n</ccts:Cardinality>
                        <ccts:ObjectClass>Receipt Line</ccts:ObjectClass>
                        <ccts:PropertyTerm>Delivery</ccts:PropertyTerm>
                        <ccts:AssociatedObjectClass>Delivery</ccts:AssociatedObjectClass>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="TransportHandlingUnit" minOccurs="0" maxOccurs="unbounded">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:oasis:names:specification:ubl:schema:xsd:CoreComponentParameters-1.0">
                        <ccts:ComponentType>ASBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Receipt Line. Transport Handling Unit</ccts:DictionaryEntryName>
                        <ccts:Definition>associates the receipt line with the transport handling unit.</ccts:Definition>
                        <ccts:Cardinality>0..n</ccts:Cardinality>
                        <ccts:ObjectClass>Receipt Line</ccts:ObjectClass>
                        <ccts:PropertyTerm>Transport Handling Unit</ccts:PropertyTerm>
                        <ccts:AssociatedObjectClass>Transport Handling Unit</ccts:AssociatedObjectClass>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="OrderedItemIdentification" minOccurs="0" maxOccurs="unbounded">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:oasis:names:specification:ubl:schema:xsd:CoreComponentParameters-1.0">
                        <ccts:ComponentType>ASBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Receipt Line. Ordered_ Item Identification. Item Identification</ccts:DictionaryEntryName>
                        <ccts:Definition>a receipt line may be associated with one or more line items off an order. For example, goods consolidated when shipped.</ccts:Definition>
                        <ccts:Cardinality>0..n</ccts:Cardinality>
                        <ccts:ObjectClass>Receipt Line</ccts:ObjectClass>
                        <ccts:PropertyTermQualifier>Ordered</ccts:PropertyTermQualifier>
                        <ccts:PropertyTerm>Item Identification</ccts:PropertyTerm>
                        <ccts:AssociatedObjectClass>Item Identification</ccts:AssociatedObjectClass>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ID cac:ID 1 1
LineStatusCode cac:LineStatusCode 0 1
ReceivedQuantity cbc:ReceivedQuantity 0 1
ShortQuantity cbc:ShortQuantity 0 1
ShortageActionCode cac:ShortageActionCode 0 1
RejectedQuantity cbc:RejectedQuantity 0 1
RejectReasonCode cac:RejectReasonCode 0 1
RejectActionCode cac:RejectActionCode 0 1
ReceivedDate cbc:ReceivedDate 0 1
TimingComplaintCode cac:TimingComplaintCode 0 1
Note cbc:Note 0 1
OrderLineReference cac:OrderLineReference 0 unbounded
DespatchLineReference cac:DespatchLineReference 0 unbounded
Delivery cac:Delivery 0 unbounded
TransportHandlingUnit cac:TransportHandlingUnit 0 unbounded
OrderedItemIdentification cac:OrderedItemIdentification 0 unbounded
Collapse Derivation Tree:
Collapse References:
cac:ReceiptLine, cac:ReceivedHandlingUnitReceiptLine
Documentation for OASIS Universal Business Language (UBL) TC

Generated using Liquid Studio - Developer Bundle 21.0.0.0
