Documentation for Microsoft Office 2003 Reference Schemas
Definition Type: Element
Name: dataAdapters
Namespace: http://schemas.microsoft.com/office/infopath/2003/solutionDefinition
Containing Schema: sd.xsd
Abstract

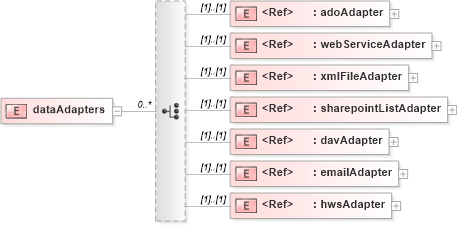

Collapse XSD Schema Diagram:
Drilldown into hwsAdapter in schema sd_xsd Drilldown into emailAdapter in schema sd_xsd Drilldown into davAdapter in schema sd_xsd Drilldown into sharepointListAdapter in schema sd_xsd Drilldown into xmlFileAdapter in schema sd_xsd Drilldown into webServiceAdapter in schema sd_xsd Drilldown into adoAdapter in schema sd_xsdXSD Diagram of dataAdapters in schema sd_xsd (Microsoft Office 2003 Reference Schemas)
Collapse XSD Schema Code:
<xsd:element name="dataAdapters">
    <xsd:complexType>
        <xsd:choice minOccurs="0" maxOccurs="unbounded">
            <xsd:element ref="xsf:adoAdapter" />
            <xsd:element ref="xsf:webServiceAdapter" />
            <xsd:element ref="xsf:xmlFileAdapter" />
            <xsd:element ref="xsf:sharepointListAdapter" />
            <xsd:element ref="xsf:davAdapter" />
            <xsd:element ref="xsf:emailAdapter" />
            <xsd:element ref="xsf:hwsAdapter" />
        </xsd:choice>
    </xsd:complexType>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
adoAdapter xsf:adoAdapter (1) (1)
webServiceAdapter xsf:webServiceAdapter (1) (1)
xmlFileAdapter xsf:xmlFileAdapter (1) (1)
sharepointListAdapter xsf:sharepointListAdapter (1) (1)
davAdapter xsf:davAdapter (1) (1)
emailAdapter xsf:emailAdapter (1) (1)
hwsAdapter xsf:hwsAdapter (1) (1)
