Documentation for Open Travel (OTA)
Definition Type: ComplexType
Name: Facility_Hotel
Namespace: http://www.opentravel.org/OTM/organization/hospitality/v3
Type: org-0300:Facility
Containing Schema: OrganizationHospitality_3_0_0.xsd
Abstract
Documentation:
Describes a facility (e.g. Hotel Facility,Conference Facility, Golf Facility). A facility must have a single address and a single geolocation.

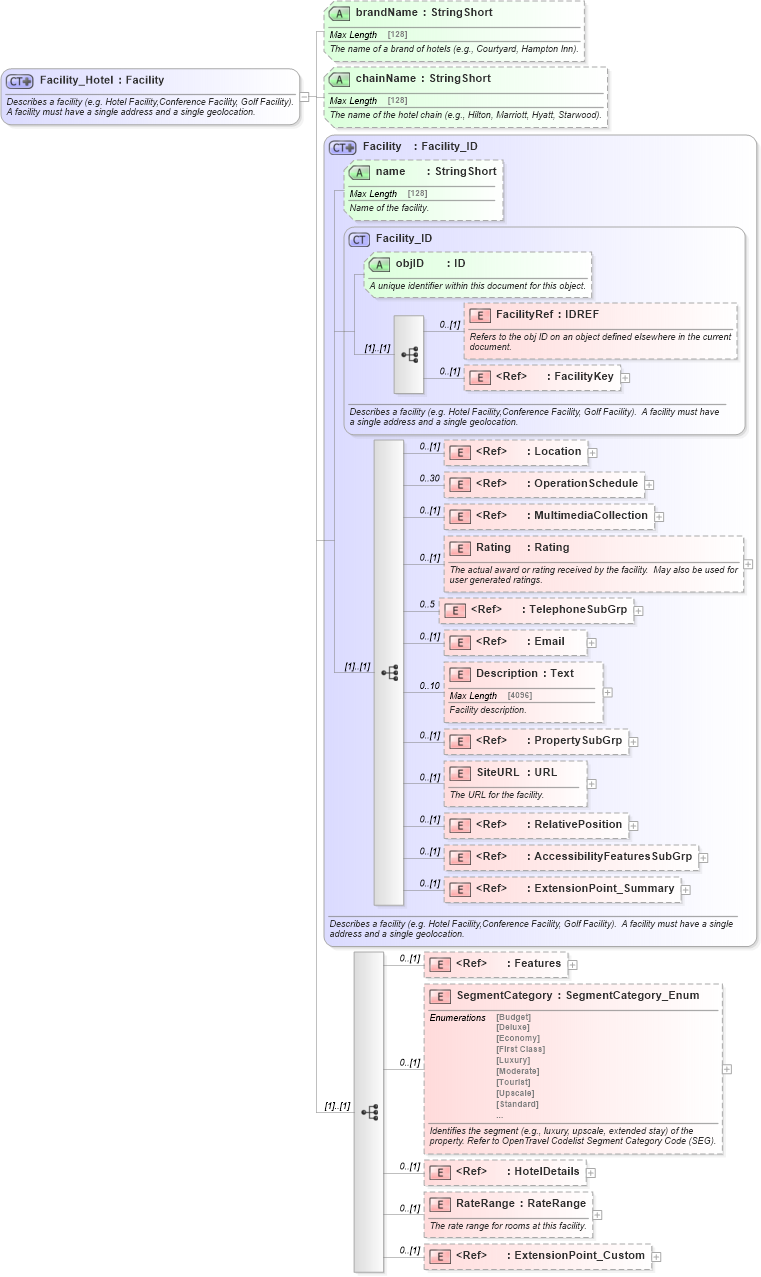

Collapse XSD Schema Diagram:
Drilldown into ExtensionPoint_Custom in schema otm_builtins_xsd Drilldown into RateRange in schema organizationhospitality_3_0_0_xsd Drilldown into HotelDetails in schema organizationhospitality_3_0_0_xsd Drilldown into SegmentCategory in schema organizationhospitality_3_0_0_xsd Drilldown into Features in schema common_4_0_0_xsd Drilldown into ExtensionPoint_Summary in schema otm_builtins_xsd Drilldown into AccessibilityFeaturesSubGrp in schema common_4_0_0_xsd Drilldown into RelativePosition in schema common_4_0_0_xsd Drilldown into SiteURL in schema organization_3_0_0_xsd Drilldown into PropertySubGrp in schema organization_3_0_0_xsd Drilldown into Description in schema organization_3_0_0_xsd Drilldown into Email in schema common_4_0_0_xsd Drilldown into TelephoneSubGrp in schema common_4_0_0_xsd Drilldown into Rating in schema organization_3_0_0_xsd Drilldown into MultimediaCollection in schema common_4_0_0_xsd Drilldown into OperationSchedule in schema common_4_0_0_xsd Drilldown into Location in schema common_4_0_0_xsd Drilldown into FacilityKey in schema organization_3_0_0_xsd Drilldown into FacilityRef in schema organization_3_0_0_xsd Drilldown into objID in schema organization_3_0_0_xsd Drilldown into Facility_ID in schema organization_3_0_0_xsd Drilldown into name in schema organization_3_0_0_xsd Drilldown into Facility in schema organization_3_0_0_xsd Drilldown into chainName in schema organizationhospitality_3_0_0_xsd Drilldown into brandName in schema organizationhospitality_3_0_0_xsdXSD Diagram of Facility_Hotel in schema organizationhospitality_3_0_0_xsd (Open Travel (OTA))
Collapse XSD Schema Code:
<xsd:complexType name="Facility_Hotel">
    <xsd:annotation>
        <xsd:documentation source="Description">Describes a facility (e.g. Hotel Facility,Conference Facility, Golf Facility).  A facility must have a single address and a single geolocation.</xsd:documentation>
        <xsd:appinfo>
            <otm:OTA2Entity type="BusinessObject" xmlns:otm="http://www.OpenTravel.org/ns/OTA2/AppInfo_v01_00">Facility</otm:OTA2Entity>
        </xsd:appinfo>
    </xsd:annotation>
    <xsd:complexContent>
        <xsd:extension base="org-0300:Facility">
            <xsd:sequence>
                <xsd:element minOccurs="0" ref="ota2-0400:Features">
                    <xsd:annotation>
                        <xsd:documentation source="Description">Identifies features of a property.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element minOccurs="0" name="SegmentCategory" type="ota2-0300:SegmentCategory_Enum">
                    <xsd:annotation>
                        <xsd:documentation source="Description">Identifies the segment (e.g., luxury, upscale, extended stay) of the property. Refer to OpenTravel Codelist Segment Category Code (SEG).</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element minOccurs="0" ref="orghs-0300:HotelDetails">
                    <xsd:annotation>
                        <xsd:documentation source="Description">Detailed hotel facility information.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element minOccurs="0" name="RateRange" type="ota2-0400:RateRange">
                    <xsd:annotation>
                        <xsd:documentation source="Description">The rate range for rooms at this facility.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element minOccurs="0" ref="ota2:ExtensionPoint_Custom" />
            </xsd:sequence>
            <xsd:attribute name="brandName" type="ota2-0400:StringShort" use="optional">
                <xsd:annotation>
                    <xsd:documentation source="Description">The name of a brand of hotels (e.g., Courtyard, Hampton Inn).</xsd:documentation>
                </xsd:annotation>
            </xsd:attribute>
            <xsd:attribute name="chainName" type="ota2-0400:StringShort" use="optional">
                <xsd:annotation>
                    <xsd:documentation source="Description">The name of the hotel chain (e.g., Hilton, Marriott, Hyatt, Starwood).</xsd:documentation>
                </xsd:annotation>
            </xsd:attribute>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
FacilityRef org-0300:FacilityRef 0 (1)
FacilityKey org-0300:FacilityKey 0 (1)
Location ota2-0400:Location 0 (1)
OperationSchedule ota2-0400:OperationSchedule 0 30
MultimediaCollection ota2-0400:MultimediaCollection 0 (1)
Rating org-0300:Rating 0 (1)
TelephoneSubGrp ota2-0400:TelephoneSubGrp 0 5
Email ota2-0400:Email 0 (1)
Description org-0300:Description 0 10
PropertySubGrp org-0300:PropertySubGrp 0 (1)
SiteURL org-0300:SiteURL 0 (1)
RelativePosition ota2-0400:RelativePosition 0 (1)
AccessibilityFeaturesSubGrp ota2-0400:AccessibilityFeaturesSubGrp 0 (1)
ExtensionPoint_Summary ota2:ExtensionPoint_Summary 0 (1)
Features ota2-0400:Features 0 (1)
SegmentCategory orghs-0300:SegmentCategory 0 (1)
HotelDetails orghs-0300:HotelDetails 0 (1)
RateRange orghs-0300:RateRange 0 (1)
ExtensionPoint_Custom ota2:ExtensionPoint_Custom 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
objID org-0300:objID Optional
name org-0300:name Optional
brandName orghs-0300:brandName Optional
chainName orghs-0300:chainName Optional
Collapse Derivation Tree:
Collapse References:
orghs-0300:FacilityHotel
