Documentation for Open Travel (OTA)
Definition Type: ComplexType
Name: Reservation_ID
Namespace: http://www.opentravel.org/OTM/reservation/v2
Containing Schema: Reservation_2_0_0.xsd
Abstract
Documentation:
A container associating travelers and orders pertaining to a particular trip or event.

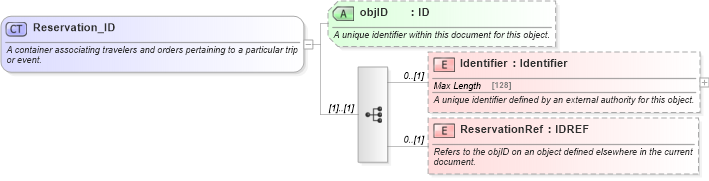

Collapse XSD Schema Diagram:
Drilldown into ReservationRef in schema reservation_2_0_0_xsd Drilldown into Identifier in schema reservation_2_0_0_xsd Drilldown into objID in schema reservation_2_0_0_xsdXSD Diagram of Reservation_ID in schema reservation_2_0_0_xsd (Open Travel (OTA))
Collapse XSD Schema Code:
<xsd:complexType name="Reservation_ID">
    <xsd:annotation>
        <xsd:documentation source="Description">A container associating travelers and orders pertaining to a particular trip or event.</xsd:documentation>
        <xsd:appinfo>
            <otm:OTA2Entity type="BusinessObject" xmlns:otm="http://www.OpenTravel.org/ns/OTA2/AppInfo_v01_00">Reservation</otm:OTA2Entity>
        </xsd:appinfo>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:element minOccurs="0" name="Identifier" type="ota2-0400:Identifier">
            <xsd:annotation>
                <xsd:documentation source="Description">A unique identifier defined by an external authority for this object.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element minOccurs="0" name="ReservationRef" type="xsd:IDREF">
            <xsd:annotation>
                <xsd:documentation source="Description">Refers to the objID on an object defined elsewhere in the current document.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
    <xsd:attribute name="objID" type="xsd:ID" use="optional">
        <xsd:annotation>
            <xsd:documentation source="Description">A unique identifier within this document for this object.</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Identifier res-0200:Identifier 0 (1)
ReservationRef res-0200:ReservationRef 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
objID res-0200:objID Optional
Collapse Derivation Tree:
Collapse References:
res-0200:Reservation, res-0200:ReservationID, res-0200:ReservationIdentifier, res-0200:ReservationSubGrp
