Documentation for Open Travel (OTA)
Definition Type: Element
Name: Reservation
Namespace: http://www.opentravel.org/OTM/reservation/v2
Type: res-0200:Reservation
Containing Schema: Reservation_2_0_0.xsd
Abstract

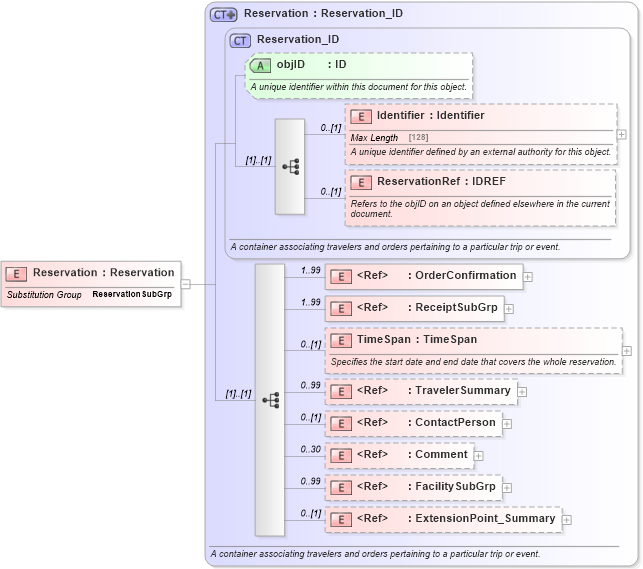

Collapse XSD Schema Diagram:
Drilldown into ExtensionPoint_Summary in schema otm_builtins_xsd Drilldown into FacilitySubGrp in schema organization_3_0_0_xsd Drilldown into Comment in schema common_4_0_0_xsd Drilldown into ContactPerson in schema common_4_0_0_xsd Drilldown into TravelerSummary in schema common_4_0_0_xsd Drilldown into TimeSpan in schema reservation_2_0_0_xsd Drilldown into ReceiptSubGrp in schema reservation_2_0_0_xsd Drilldown into OrderConfirmation in schema order_3_0_0_xsd Drilldown into ReservationRef in schema reservation_2_0_0_xsd Drilldown into Identifier in schema reservation_2_0_0_xsd Drilldown into objID in schema reservation_2_0_0_xsd Drilldown into Reservation_ID in schema reservation_2_0_0_xsd Drilldown into Reservation in schema reservation_2_0_0_xsdXSD Diagram of Reservation in schema reservation_2_0_0_xsd (Open Travel (OTA))
Collapse XSD Schema Code:
<xsd:element name="Reservation" substitutionGroup="res-0200:ReservationSubGrp" type="res-0200:Reservation" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Identifier res-0200:Identifier 0 (1)
ReservationRef res-0200:ReservationRef 0 (1)
OrderConfirmation order-0300:OrderConfirmation 1 99
ReceiptSubGrp res-0200:ReceiptSubGrp 1 99
TimeSpan res-0200:TimeSpan 0 (1)
TravelerSummary ota2-0400:TravelerSummary 0 99
ContactPerson ota2-0400:ContactPerson 0 (1)
Comment ota2-0400:Comment 0 30
FacilitySubGrp org-0300:FacilitySubGrp 0 99
ExtensionPoint_Summary ota2:ExtensionPoint_Summary 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
objID res-0200:objID Optional
Collapse Derivation Tree:
Collapse References:
res-0200:ReservationSubGrp
