Documentation for Open Travel (OTA)
Definition Type: ComplexType
Name: Reservation
Namespace: http://www.opentravel.org/OTM/reservation/v2
Type: res-0200:Reservation_ID
Containing Schema: Reservation_2_0_0.xsd
Abstract
Documentation:
A container associating travelers and orders pertaining to a particular trip or event.

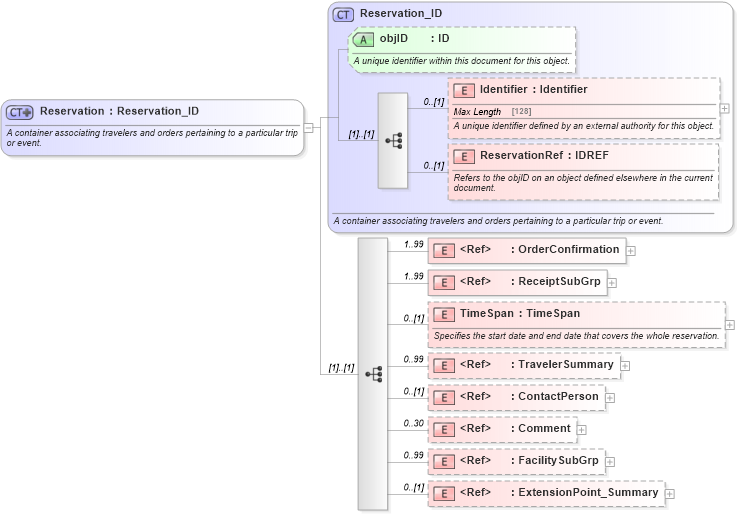

Collapse XSD Schema Diagram:
Drilldown into ExtensionPoint_Summary in schema otm_builtins_xsd Drilldown into FacilitySubGrp in schema organization_3_0_0_xsd Drilldown into Comment in schema common_4_0_0_xsd Drilldown into ContactPerson in schema common_4_0_0_xsd Drilldown into TravelerSummary in schema common_4_0_0_xsd Drilldown into TimeSpan in schema reservation_2_0_0_xsd Drilldown into ReceiptSubGrp in schema reservation_2_0_0_xsd Drilldown into OrderConfirmation in schema order_3_0_0_xsd Drilldown into ReservationRef in schema reservation_2_0_0_xsd Drilldown into Identifier in schema reservation_2_0_0_xsd Drilldown into objID in schema reservation_2_0_0_xsd Drilldown into Reservation_ID in schema reservation_2_0_0_xsdXSD Diagram of Reservation in schema reservation_2_0_0_xsd (Open Travel (OTA))
Collapse XSD Schema Code:
<xsd:complexType name="Reservation">
    <xsd:annotation>
        <xsd:documentation source="Description">A container associating travelers and orders pertaining to a particular trip or event.</xsd:documentation>
        <xsd:appinfo>
            <otm:OTA2Entity type="BusinessObject" xmlns:otm="http://www.OpenTravel.org/ns/OTA2/AppInfo_v01_00">Reservation</otm:OTA2Entity>
        </xsd:appinfo>
    </xsd:annotation>
    <xsd:complexContent>
        <xsd:extension base="res-0200:Reservation_ID">
            <xsd:sequence>
                <xsd:element maxOccurs="99" minOccurs="1" ref="order-0300:OrderConfirmation">
                    <xsd:annotation>
                        <xsd:documentation source="Description">A collection of confirmed offers.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element maxOccurs="99" minOccurs="1" ref="res-0200:ReceiptSubGrp">
                    <xsd:annotation>
                        <xsd:documentation source="Description">Receipt for the reservation.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element minOccurs="0" name="TimeSpan" type="ota2-0400:TimeSpan">
                    <xsd:annotation>
                        <xsd:documentation source="Description">Specifies the start date and end date that covers the whole reservation.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element maxOccurs="99" minOccurs="0" ref="ota2-0400:TravelerSummary">
                    <xsd:annotation>
                        <xsd:documentation source="Description">For travelers uniquely identified in the order this should just be the traveler ID.  For travelers not identified in the orders, this may be more detailed information about the traveler.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element minOccurs="0" ref="ota2-0400:ContactPerson">
                    <xsd:annotation>
                        <xsd:documentation source="Description">Information pertaining to the contact for the reservation.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element maxOccurs="30" minOccurs="0" ref="ota2-0400:Comment">
                    <xsd:annotation>
                        <xsd:documentation source="Description">Comments pertaining to the reservation.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element maxOccurs="99" minOccurs="0" ref="org-0300:FacilitySubGrp">
                    <xsd:annotation>
                        <xsd:documentation source="Description">One or more facilities associated with this reservation.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element minOccurs="0" ref="ota2:ExtensionPoint_Summary" />
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Identifier res-0200:Identifier 0 (1)
ReservationRef res-0200:ReservationRef 0 (1)
OrderConfirmation order-0300:OrderConfirmation 1 99
ReceiptSubGrp res-0200:ReceiptSubGrp 1 99
TimeSpan res-0200:TimeSpan 0 (1)
TravelerSummary ota2-0400:TravelerSummary 0 99
ContactPerson ota2-0400:ContactPerson 0 (1)
Comment ota2-0400:Comment 0 30
FacilitySubGrp org-0300:FacilitySubGrp 0 99
ExtensionPoint_Summary ota2:ExtensionPoint_Summary 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
objID res-0200:objID Optional
Collapse Derivation Tree:
Collapse References:
res-0200:Reservation, res-0200:Reservation_Cancellation, res-0200:ReservationSummary
