Documentation for Open Travel (OTA)
Definition Type: ComplexType
Name: Reservation_Cancellation
Namespace: http://www.opentravel.org/OTM/reservation/v2
Type: res-0200:Reservation
Containing Schema: Reservation_2_0_0.xsd
Abstract
Documentation:
A container associating travelers and orders pertaining to a particular trip or event.

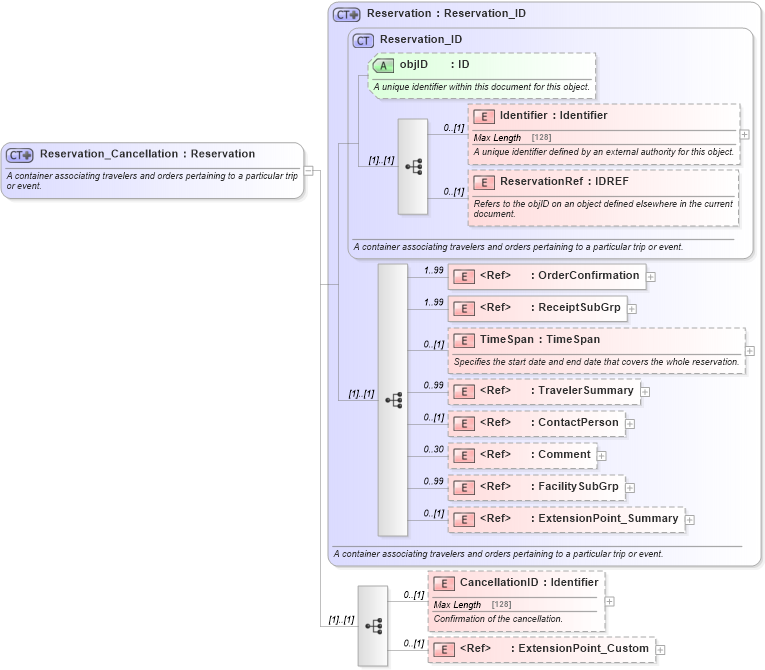

Collapse XSD Schema Diagram:
Drilldown into ExtensionPoint_Custom in schema otm_builtins_xsd Drilldown into CancellationID in schema reservation_2_0_0_xsd Drilldown into ExtensionPoint_Summary in schema otm_builtins_xsd Drilldown into FacilitySubGrp in schema organization_3_0_0_xsd Drilldown into Comment in schema common_4_0_0_xsd Drilldown into ContactPerson in schema common_4_0_0_xsd Drilldown into TravelerSummary in schema common_4_0_0_xsd Drilldown into TimeSpan in schema reservation_2_0_0_xsd Drilldown into ReceiptSubGrp in schema reservation_2_0_0_xsd Drilldown into OrderConfirmation in schema order_3_0_0_xsd Drilldown into ReservationRef in schema reservation_2_0_0_xsd Drilldown into Identifier in schema reservation_2_0_0_xsd Drilldown into objID in schema reservation_2_0_0_xsd Drilldown into Reservation_ID in schema reservation_2_0_0_xsd Drilldown into Reservation in schema reservation_2_0_0_xsdXSD Diagram of Reservation_Cancellation in schema reservation_2_0_0_xsd (Open Travel (OTA))
Collapse XSD Schema Code:
<xsd:complexType name="Reservation_Cancellation">
    <xsd:annotation>
        <xsd:documentation source="Description">A container associating travelers and orders pertaining to a particular trip or event.</xsd:documentation>
        <xsd:appinfo>
            <otm:OTA2Entity type="BusinessObject" xmlns:otm="http://www.OpenTravel.org/ns/OTA2/AppInfo_v01_00">Reservation</otm:OTA2Entity>
        </xsd:appinfo>
    </xsd:annotation>
    <xsd:complexContent>
        <xsd:extension base="res-0200:Reservation">
            <xsd:sequence>
                <xsd:element minOccurs="0" name="CancellationID" type="ota2-0400:Identifier">
                    <xsd:annotation>
                        <xsd:documentation source="Description">Confirmation of the cancellation.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element minOccurs="0" ref="ota2:ExtensionPoint_Custom" />
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Identifier res-0200:Identifier 0 (1)
ReservationRef res-0200:ReservationRef 0 (1)
OrderConfirmation order-0300:OrderConfirmation 1 99
ReceiptSubGrp res-0200:ReceiptSubGrp 1 99
TimeSpan res-0200:TimeSpan 0 (1)
TravelerSummary ota2-0400:TravelerSummary 0 99
ContactPerson ota2-0400:ContactPerson 0 (1)
Comment ota2-0400:Comment 0 30
FacilitySubGrp org-0300:FacilitySubGrp 0 99
ExtensionPoint_Summary ota2:ExtensionPoint_Summary 0 (1)
CancellationID res-0200:CancellationID 0 (1)
ExtensionPoint_Custom ota2:ExtensionPoint_Custom 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
objID res-0200:objID Optional
Collapse Derivation Tree:
Collapse References:
res-0200:ReservationCancellation
