Definition Type: Element
Name: PartsInvoiceLine
Namespace: http://www.starstandard.org/STAR/5
Type: star:PartsInvoiceLineType
Containing Schema: PartsInvoice.xsd
Abstract
Documentation:
The PaymentTerms Component represents payment due date and terms information.

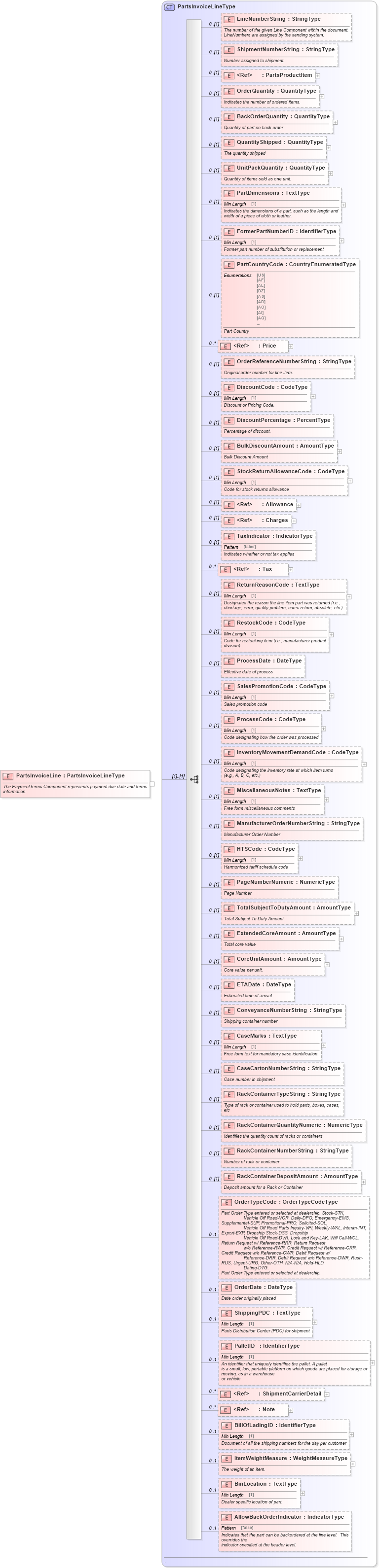

Collapse XSD Schema Diagram:
Drilldown into AllowBackOrderIndicator in schema partsinvoice_xsd Drilldown into BinLocation in schema partsinvoice_xsd Drilldown into ItemWeightMeasure in schema partsinvoice_xsd Drilldown into BillOfLadingID in schema partsinvoice_xsd Drilldown into Note in schema fields_xsd1 Drilldown into ShipmentCarrierDetail in schema components_xsd Drilldown into PalletID in schema partsinvoice_xsd Drilldown into ShippingPDC in schema partsinvoice_xsd Drilldown into OrderDate in schema partsinvoice_xsd Drilldown into OrderTypeCode in schema partsinvoice_xsd Drilldown into RackContainerDepositAmount in schema partsinvoice_xsd Drilldown into RackContainerNumberString in schema partsinvoice_xsd Drilldown into RackContainerQuantityNumeric in schema partsinvoice_xsd Drilldown into RackContainerTypeString in schema partsinvoice_xsd Drilldown into CaseCartonNumberString in schema partsinvoice_xsd Drilldown into CaseMarks in schema partsinvoice_xsd Drilldown into ConveyanceNumberString in schema partsinvoice_xsd Drilldown into ETADate in schema partsinvoice_xsd Drilldown into CoreUnitAmount in schema partsinvoice_xsd Drilldown into ExtendedCoreAmount in schema partsinvoice_xsd Drilldown into TotalSubjectToDutyAmount in schema partsinvoice_xsd Drilldown into PageNumberNumeric in schema partsinvoice_xsd Drilldown into HTSCode in schema partsinvoice_xsd Drilldown into ManufacturerOrderNumberString in schema partsinvoice_xsd Drilldown into MiscellaneousNotes in schema partsinvoice_xsd Drilldown into InventoryMovementDemandCode in schema partsinvoice_xsd Drilldown into ProcessCode in schema partsinvoice_xsd Drilldown into SalesPromotionCode in schema partsinvoice_xsd Drilldown into ProcessDate in schema partsinvoice_xsd Drilldown into RestockCode in schema partsinvoice_xsd Drilldown into ReturnReasonCode in schema partsinvoice_xsd Drilldown into Tax in schema components_xsd Drilldown into TaxIndicator in schema partsinvoice_xsd Drilldown into Charges in schema components_xsd Drilldown into Allowance in schema components_xsd Drilldown into StockReturnAllowanceCode in schema partsinvoice_xsd Drilldown into BulkDiscountAmount in schema partsinvoice_xsd Drilldown into DiscountPercentage in schema partsinvoice_xsd Drilldown into DiscountCode in schema partsinvoice_xsd Drilldown into OrderReferenceNumberString in schema partsinvoice_xsd Drilldown into Price in schema components_xsd Drilldown into PartCountryCode in schema partsinvoice_xsd Drilldown into FormerPartNumberID in schema partsinvoice_xsd Drilldown into PartDimensions in schema partsinvoice_xsd Drilldown into UnitPackQuantity in schema partsinvoice_xsd Drilldown into QuantityShipped in schema partsinvoice_xsd Drilldown into BackOrderQuantity in schema partsinvoice_xsd Drilldown into OrderQuantity in schema partsinvoice_xsd Drilldown into PartsProductItem in schema components_xsd Drilldown into ShipmentNumberString in schema partsinvoice_xsd Drilldown into LineNumberString in schema partsinvoice_xsd Drilldown into PartsInvoiceLineType in schema partsinvoice_xsdXSD Diagram of PartsInvoiceLine in schema partsinvoice_xsd (Standards for Technology in Automotive Retail)
Collapse XSD Schema Code:
<xsd:element name="PartsInvoiceLine" type="PartsInvoiceLineType">
    <xsd:annotation>
        <xsd:documentation source="http://www.starstandard.org/STAR/5"> The PaymentTerms Component represents payment due date and terms
            information.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
LineNumberString star:LineNumberString 0 (1)
ShipmentNumberString star:ShipmentNumberString 0 (1)
PartsProductItem star:PartsProductItem 0 (1)
OrderQuantity star:OrderQuantity 0 (1)
BackOrderQuantity star:BackOrderQuantity 0 (1)
QuantityShipped star:QuantityShipped 0 (1)
UnitPackQuantity star:UnitPackQuantity 0 (1)
PartDimensions star:PartDimensions 0 (1)
FormerPartNumberID star:FormerPartNumberID 0 (1)
PartCountryCode star:PartCountryCode 0 (1)
Price star:Price 0 unbounded
OrderReferenceNumberString star:OrderReferenceNumberString 0 (1)
DiscountCode star:DiscountCode 0 (1)
DiscountPercentage star:DiscountPercentage 0 (1)
BulkDiscountAmount star:BulkDiscountAmount 0 (1)
StockReturnAllowanceCode star:StockReturnAllowanceCode 0 (1)
Allowance star:Allowance 0 (1)
Charges star:Charges 0 (1)
TaxIndicator star:TaxIndicator 0 (1)
Tax star:Tax 0 unbounded
ReturnReasonCode star:ReturnReasonCode 0 (1)
RestockCode star:RestockCode 0 (1)
ProcessDate star:ProcessDate 0 (1)
SalesPromotionCode star:SalesPromotionCode 0 (1)
ProcessCode star:ProcessCode 0 (1)
InventoryMovementDemandCode star:InventoryMovementDemandCode 0 (1)
MiscellaneousNotes star:MiscellaneousNotes 0 (1)
ManufacturerOrderNumberString star:ManufacturerOrderNumberString 0 (1)
HTSCode star:HTSCode 0 (1)
PageNumberNumeric star:PageNumberNumeric 0 (1)
TotalSubjectToDutyAmount star:TotalSubjectToDutyAmount 0 (1)
ExtendedCoreAmount star:ExtendedCoreAmount 0 (1)
CoreUnitAmount star:CoreUnitAmount 0 (1)
ETADate star:ETADate 0 (1)
ConveyanceNumberString star:ConveyanceNumberString 0 (1)
CaseMarks star:CaseMarks 0 (1)
CaseCartonNumberString star:CaseCartonNumberString 0 (1)
RackContainerTypeString star:RackContainerTypeString 0 (1)
RackContainerQuantityNumeric star:RackContainerQuantityNumeric 0 (1)
RackContainerNumberString star:RackContainerNumberString 0 (1)
RackContainerDepositAmount star:RackContainerDepositAmount 0 (1)
OrderTypeCode star:OrderTypeCode 0 1
OrderDate star:OrderDate 0 1
ShippingPDC star:ShippingPDC 0 1
PalletID star:PalletID 0 1
ShipmentCarrierDetail star:ShipmentCarrierDetail 0 unbounded
Note oagis:Note 0 unbounded
BillOfLadingID star:BillOfLadingID 0 1
ItemWeightMeasure star:ItemWeightMeasure 0 1
BinLocation star:BinLocation 0 1
AllowBackOrderIndicator star:AllowBackOrderIndicator 0 1
Collapse Derivation Tree:
