Documentation for Standards for Technology in Automotive Retail
Definition Type: ComplexType
Name: PartsInvoiceLineType
Namespace: http://www.starstandard.org/STAR/5
Containing Schema: PartsInvoice.xsd
Abstract
Documentation:
.

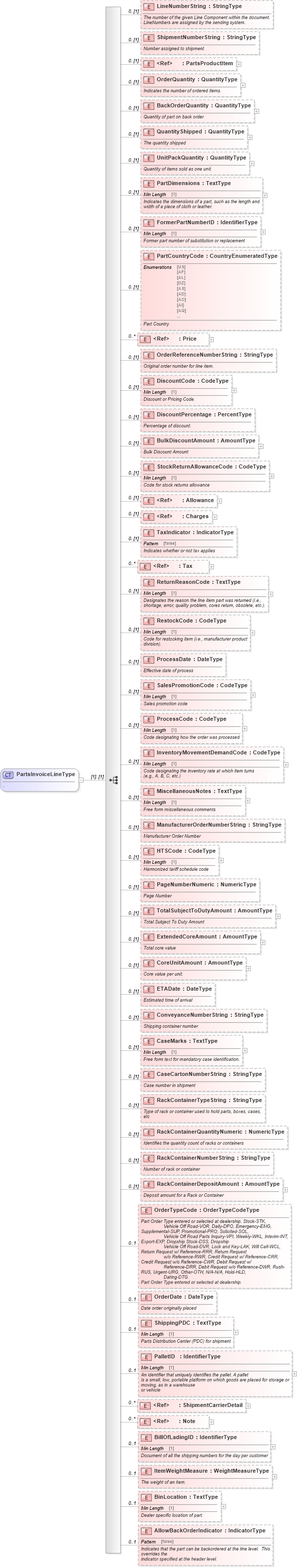

Collapse XSD Schema Diagram:
Drilldown into AllowBackOrderIndicator in schema partsinvoice_xsd Drilldown into BinLocation in schema partsinvoice_xsd Drilldown into ItemWeightMeasure in schema partsinvoice_xsd Drilldown into BillOfLadingID in schema partsinvoice_xsd Drilldown into Note in schema fields_xsd1 Drilldown into ShipmentCarrierDetail in schema components_xsd Drilldown into PalletID in schema partsinvoice_xsd Drilldown into ShippingPDC in schema partsinvoice_xsd Drilldown into OrderDate in schema partsinvoice_xsd Drilldown into OrderTypeCode in schema partsinvoice_xsd Drilldown into RackContainerDepositAmount in schema partsinvoice_xsd Drilldown into RackContainerNumberString in schema partsinvoice_xsd Drilldown into RackContainerQuantityNumeric in schema partsinvoice_xsd Drilldown into RackContainerTypeString in schema partsinvoice_xsd Drilldown into CaseCartonNumberString in schema partsinvoice_xsd Drilldown into CaseMarks in schema partsinvoice_xsd Drilldown into ConveyanceNumberString in schema partsinvoice_xsd Drilldown into ETADate in schema partsinvoice_xsd Drilldown into CoreUnitAmount in schema partsinvoice_xsd Drilldown into ExtendedCoreAmount in schema partsinvoice_xsd Drilldown into TotalSubjectToDutyAmount in schema partsinvoice_xsd Drilldown into PageNumberNumeric in schema partsinvoice_xsd Drilldown into HTSCode in schema partsinvoice_xsd Drilldown into ManufacturerOrderNumberString in schema partsinvoice_xsd Drilldown into MiscellaneousNotes in schema partsinvoice_xsd Drilldown into InventoryMovementDemandCode in schema partsinvoice_xsd Drilldown into ProcessCode in schema partsinvoice_xsd Drilldown into SalesPromotionCode in schema partsinvoice_xsd Drilldown into ProcessDate in schema partsinvoice_xsd Drilldown into RestockCode in schema partsinvoice_xsd Drilldown into ReturnReasonCode in schema partsinvoice_xsd Drilldown into Tax in schema components_xsd Drilldown into TaxIndicator in schema partsinvoice_xsd Drilldown into Charges in schema components_xsd Drilldown into Allowance in schema components_xsd Drilldown into StockReturnAllowanceCode in schema partsinvoice_xsd Drilldown into BulkDiscountAmount in schema partsinvoice_xsd Drilldown into DiscountPercentage in schema partsinvoice_xsd Drilldown into DiscountCode in schema partsinvoice_xsd Drilldown into OrderReferenceNumberString in schema partsinvoice_xsd Drilldown into Price in schema components_xsd Drilldown into PartCountryCode in schema partsinvoice_xsd Drilldown into FormerPartNumberID in schema partsinvoice_xsd Drilldown into PartDimensions in schema partsinvoice_xsd Drilldown into UnitPackQuantity in schema partsinvoice_xsd Drilldown into QuantityShipped in schema partsinvoice_xsd Drilldown into BackOrderQuantity in schema partsinvoice_xsd Drilldown into OrderQuantity in schema partsinvoice_xsd Drilldown into PartsProductItem in schema components_xsd Drilldown into ShipmentNumberString in schema partsinvoice_xsd Drilldown into LineNumberString in schema partsinvoice_xsdXSD Diagram of PartsInvoiceLineType in schema partsinvoice_xsd (Standards for Technology in Automotive Retail)
Collapse XSD Schema Code:
<xsd:complexType name="PartsInvoiceLineType">
    <xsd:annotation xmlns="http://www.starstandards.org/STAR">
        <xsd:documentation source="http://www.starstandard.org/STAR/5">.</xsd:documentation>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:element name="LineNumberString" type="qdt:StringType" minOccurs="0">
            <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                <xsd:documentation source="http://www.starstandard.org/STAR/5">The number of the given Line Component within the document.
                  LineNumbers are assigned by the sending system.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="ShipmentNumberString" type="qdt:StringType" minOccurs="0">
            <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                <xsd:documentation source="http://www.starstandard.org/STAR/5">Number assigned to shipment.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="PartsProductItem" minOccurs="0" />
        <xsd:element name="OrderQuantity" type="sqdt:QuantityType" minOccurs="0">
            <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                <xsd:documentation source="http://www.starstandard.org/STAR/5">Indicates the number of ordered items.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="BackOrderQuantity" type="sqdt:QuantityType" minOccurs="0">
            <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                <xsd:documentation source="http://www.starstandard.org/STAR/5">Quantity of part on back order</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="QuantityShipped" type="sqdt:QuantityType" minOccurs="0">
            <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                <xsd:documentation source="http://www.starstandard.org/STAR/5">The quantity shipped</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="UnitPackQuantity" type="sqdt:QuantityType" minOccurs="0">
            <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                <xsd:documentation source="http://www.starstandard.org/STAR/5">Quantity of items sold as one unit.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="PartDimensions" type="udt:TextType" minOccurs="0">
            <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                <xsd:documentation source="http://www.starstandard.org/STAR/5">Indicates the dimensions of a part, such as the length and
                  width of a piece of cloth or leather.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="FormerPartNumberID" type="udt:IdentifierType" minOccurs="0">
            <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                <xsd:documentation source="http://www.starstandard.org/STAR/5">Former part number of substitution or replacement
               </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="PartCountryCode" type="scl:CountryEnumeratedType" minOccurs="0">
            <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                <xsd:documentation source="http://www.starstandard.org/STAR/5">Part Country</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="Price" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element name="OrderReferenceNumberString" type="qdt:StringType" minOccurs="0">
            <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                <xsd:documentation source="http://www.starstandard.org/STAR/5">Original order number for line item.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="DiscountCode" type="udt:CodeType" minOccurs="0">
            <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                <xsd:documentation source="http://www.starstandard.org/STAR/5">Discount or Pricing Code.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="DiscountPercentage" type="udt:PercentType" minOccurs="0">
            <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                <xsd:documentation source="http://www.starstandard.org/STAR/5">Percentage of discount.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="BulkDiscountAmount" type="udt:AmountType" minOccurs="0">
            <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                <xsd:documentation source="http://www.starstandard.org/STAR/5">Bulk Discount Amount</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="StockReturnAllowanceCode" type="udt:CodeType" minOccurs="0">
            <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                <xsd:documentation source="http://www.starstandard.org/STAR/5">Code for stock returns allowance</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="Allowance" minOccurs="0" />
        <xsd:element ref="Charges" minOccurs="0" />
        <xsd:element name="TaxIndicator" type="udt:IndicatorType" minOccurs="0">
            <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                <xsd:documentation source="http://www.starstandard.org/STAR/5">Indicates whether or not tax applies</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="Tax" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element name="ReturnReasonCode" type="udt:TextType" minOccurs="0">
            <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                <xsd:documentation source="http://www.starstandard.org/STAR/5">Designates the reason the line item part was returned (i.e.,
                  shortage, error, quality problem, cores return, obsolete, etc.).</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="RestockCode" type="udt:CodeType" minOccurs="0">
            <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                <xsd:documentation source="http://www.starstandard.org/STAR/5">Code for restocking item (i.e., manufacturer product
                  division).</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="ProcessDate" type="udt:DateType" minOccurs="0">
            <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                <xsd:documentation source="http://www.starstandard.org/STAR/5">Effective date of process</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="SalesPromotionCode" type="udt:CodeType" minOccurs="0">
            <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                <xsd:documentation source="http://www.starstandard.org/STAR/5">Sales promotion code</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="ProcessCode" type="udt:CodeType" minOccurs="0">
            <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                <xsd:documentation source="http://www.starstandard.org/STAR/5">Code designating how the order was processed
               </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="InventoryMovementDemandCode" type="udt:CodeType" minOccurs="0">
            <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                <xsd:documentation source="http://www.starstandard.org/STAR/5">Code designating the inventory rate at which item turns
                  (e.g., A, B, C, etc.)</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="MiscellaneousNotes" type="udt:TextType" minOccurs="0">
            <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                <xsd:documentation source="http://www.starstandard.org/STAR/5">Free form miscellaneous comments</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="ManufacturerOrderNumberString" type="qdt:StringType" minOccurs="0">
            <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                <xsd:documentation source="http://www.starstandard.org/STAR/5">Manufacturer Order Number</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="HTSCode" type="udt:CodeType" minOccurs="0">
            <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                <xsd:documentation source="http://www.starstandard.org/STAR/5">Harmonized tariff schedule code</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="PageNumberNumeric" type="udt:NumericType" minOccurs="0">
            <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                <xsd:documentation source="http://www.starstandard.org/STAR/5">Page Number</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="TotalSubjectToDutyAmount" type="udt:AmountType" minOccurs="0">
            <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                <xsd:documentation source="http://www.starstandard.org/STAR/5">Total Subject To Duty Amount</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="ExtendedCoreAmount" type="udt:AmountType" minOccurs="0">
            <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                <xsd:documentation source="http://www.starstandard.org/STAR/5">Total core value</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="CoreUnitAmount" type="udt:AmountType" minOccurs="0">
            <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                <xsd:documentation source="http://www.starstandard.org/STAR/5">Core value per unit.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="ETADate" type="udt:DateType" minOccurs="0">
            <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                <xsd:documentation source="http://www.starstandard.org/STAR/5">Estimated time of arrival</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="ConveyanceNumberString" type="qdt:StringType" minOccurs="0">
            <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                <xsd:documentation source="http://www.starstandard.org/STAR/5">Shipping container number</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="CaseMarks" type="udt:TextType" minOccurs="0">
            <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                <xsd:documentation source="http://www.starstandard.org/STAR/5">Free form text for mandatory case identification.
               </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="CaseCartonNumberString" type="qdt:StringType" minOccurs="0">
            <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                <xsd:documentation source="http://www.starstandard.org/STAR/5">Case number in shipment</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="RackContainerTypeString" type="qdt:StringType" minOccurs="0">
            <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                <xsd:documentation source="http://www.starstandard.org/STAR/5">Type of rack or container used to hold parts, boxes, cases,
                  etc</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="RackContainerQuantityNumeric" type="udt:NumericType" minOccurs="0">
            <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                <xsd:documentation source="http://www.starstandard.org/STAR/5">Identifies the quantity count of racks or containers
               </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="RackContainerNumberString" type="qdt:StringType" minOccurs="0">
            <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                <xsd:documentation source="http://www.starstandard.org/STAR/5">Number of rack or container</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="RackContainerDepositAmount" type="udt:AmountType" minOccurs="0">
            <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                <xsd:documentation source="http://www.starstandard.org/STAR/5">Deposit amount for a Rack or Container</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="OrderTypeCode" type="sqdt:OrderTypeCodeType" minOccurs="0" maxOccurs="1">
            <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                <xsd:documentation source="http://www.starstandard.org/STAR/5">Part Order Type entered or selected at dealership. Stock-STK,
                  Vehicle Off Road-VOR, Daily-DPO, Emergency-EMG, Supplemental-SUP, Promotional-PRO, Solicited-SOL,
                  Vehicle Off Road Parts Inquiry-VPI, Weekly-WKL, Interim-INT, Export-EXP, Dropship Stock-DSS, Dropship
                  Vehicle Off Road-DVR, Lock and Key-LAK, Will Call-WCL, Return Request w/ Reference-RRR, Return Request
                  w/o Reference-RWR, Credit Request w/ Reference-CRR, Credit Request w/o Reference-CWR, Debit Request w/
                  Reference-DRR, Debit Request w/o Reference-DWR, Rush-RUS, Urgent-URG, Other-OTH, N/A-N/A, Hold-HLD,
                  Dating-DTG.</xsd:documentation>
                <xsd:documentation source="http://www.starstandard.org/STAR/5/PartOrder">Part Order Type entered or selected at dealership.
               </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="OrderDate" type="udt:DateType" minOccurs="0" maxOccurs="1">
            <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                <xsd:documentation source="http://www.starstandard.org/STAR/5">Date order originally placed</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="ShippingPDC" type="udt:TextType" minOccurs="0" maxOccurs="1">
            <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                <xsd:documentation source="http://www.starstandard.org/STAR/5">Parts Distribution Center (PDC) for shipment
               </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="PalletID" type="udt:IdentifierType" minOccurs="0" maxOccurs="1">
            <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                <xsd:documentation source="http://www.starstandard.org/STAR/5">An identifier that uniquely identifies the pallet. A pallet
                  is a small, low, portable platform on which goods are placed for storage or moving, as in a warehouse
                  or vehicle</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="ShipmentCarrierDetail" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="oagis:Note" minOccurs="0" maxOccurs="unbounded">
            <xsd:annotation>
                <xsd:documentation source="http://www.starstandard.org/STAR/5"> Free form notes that are entered by the dealer at the time
                  of order entry. These notes are for informational purposes only, no system processing or business
                  logic that would require extraction of data requirements is to appear in this field.
               </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="BillOfLadingID" type="udt:IdentifierType" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation source="http://www.starstandard.org/STAR/5">
                    Document of all the shipping numbers for the day per customer
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="ItemWeightMeasure" type="sqdt:WeightMeasureType" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation source="http://www.starstandard.org/STAR/5">
                    The weight of an item.
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="BinLocation" type="udt:TextType" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation source="http://www.starstandard.org/STAR/5">
                    Dealer specific location of part.
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="AllowBackOrderIndicator" type="udt:IndicatorType" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation source="http://www.starstandard.org/STR/5">
                    Indicates that the part can be backordered at the line level.  This overrides the
                    indicator specified at the header level.
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
LineNumberString star:LineNumberString 0 (1)
ShipmentNumberString star:ShipmentNumberString 0 (1)
PartsProductItem star:PartsProductItem 0 (1)
OrderQuantity star:OrderQuantity 0 (1)
BackOrderQuantity star:BackOrderQuantity 0 (1)
QuantityShipped star:QuantityShipped 0 (1)
UnitPackQuantity star:UnitPackQuantity 0 (1)
PartDimensions star:PartDimensions 0 (1)
FormerPartNumberID star:FormerPartNumberID 0 (1)
PartCountryCode star:PartCountryCode 0 (1)
Price star:Price 0 unbounded
OrderReferenceNumberString star:OrderReferenceNumberString 0 (1)
DiscountCode star:DiscountCode 0 (1)
DiscountPercentage star:DiscountPercentage 0 (1)
BulkDiscountAmount star:BulkDiscountAmount 0 (1)
StockReturnAllowanceCode star:StockReturnAllowanceCode 0 (1)
Allowance star:Allowance 0 (1)
Charges star:Charges 0 (1)
TaxIndicator star:TaxIndicator 0 (1)
Tax star:Tax 0 unbounded
ReturnReasonCode star:ReturnReasonCode 0 (1)
RestockCode star:RestockCode 0 (1)
ProcessDate star:ProcessDate 0 (1)
SalesPromotionCode star:SalesPromotionCode 0 (1)
ProcessCode star:ProcessCode 0 (1)
InventoryMovementDemandCode star:InventoryMovementDemandCode 0 (1)
MiscellaneousNotes star:MiscellaneousNotes 0 (1)
ManufacturerOrderNumberString star:ManufacturerOrderNumberString 0 (1)
HTSCode star:HTSCode 0 (1)
PageNumberNumeric star:PageNumberNumeric 0 (1)
TotalSubjectToDutyAmount star:TotalSubjectToDutyAmount 0 (1)
ExtendedCoreAmount star:ExtendedCoreAmount 0 (1)
CoreUnitAmount star:CoreUnitAmount 0 (1)
ETADate star:ETADate 0 (1)
ConveyanceNumberString star:ConveyanceNumberString 0 (1)
CaseMarks star:CaseMarks 0 (1)
CaseCartonNumberString star:CaseCartonNumberString 0 (1)
RackContainerTypeString star:RackContainerTypeString 0 (1)
RackContainerQuantityNumeric star:RackContainerQuantityNumeric 0 (1)
RackContainerNumberString star:RackContainerNumberString 0 (1)
RackContainerDepositAmount star:RackContainerDepositAmount 0 (1)
OrderTypeCode star:OrderTypeCode 0 1
OrderDate star:OrderDate 0 1
ShippingPDC star:ShippingPDC 0 1
PalletID star:PalletID 0 1
ShipmentCarrierDetail star:ShipmentCarrierDetail 0 unbounded
Note oagis:Note 0 unbounded
BillOfLadingID star:BillOfLadingID 0 1
ItemWeightMeasure star:ItemWeightMeasure 0 1
BinLocation star:BinLocation 0 1
AllowBackOrderIndicator star:AllowBackOrderIndicator 0 1
Collapse Derivation Tree:
Collapse References:
star:PartsInvoiceLine
Documentation for Standards for Technology in Automotive Retail

Generated using Liquid Studio - Developer Bundle 21.0.0.0
