Definition Type: ComplexType
Name: SubletType
Namespace: http://www.starstandard.org/STAR/5
Containing Schema: Components.xsd
Abstract

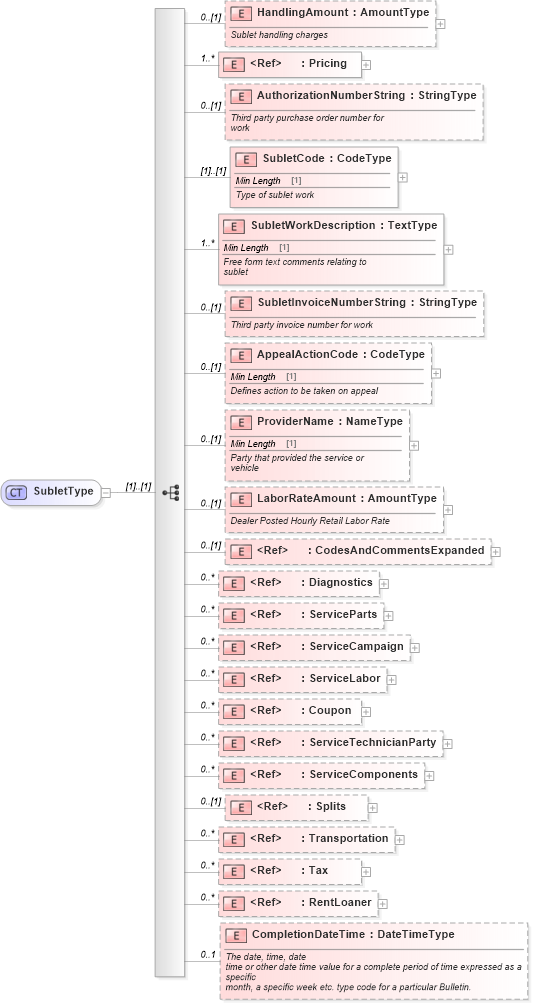

Collapse XSD Schema Diagram:
Drilldown into CompletionDateTime in schema components_xsd Drilldown into RentLoaner in schema components_xsd Drilldown into Tax in schema components_xsd Drilldown into Transportation in schema components_xsd Drilldown into Splits in schema components_xsd Drilldown into ServiceComponents in schema components_xsd Drilldown into ServiceTechnicianParty in schema components_xsd Drilldown into Coupon in schema components_xsd Drilldown into ServiceLabor in schema components_xsd Drilldown into ServiceCampaign in schema components_xsd Drilldown into ServiceParts in schema components_xsd Drilldown into Diagnostics in schema components_xsd Drilldown into CodesAndCommentsExpanded in schema components_xsd Drilldown into LaborRateAmount in schema components_xsd Drilldown into ProviderName in schema components_xsd Drilldown into AppealActionCode in schema components_xsd Drilldown into SubletInvoiceNumberString in schema components_xsd Drilldown into SubletWorkDescription in schema components_xsd Drilldown into SubletCode in schema components_xsd Drilldown into AuthorizationNumberString in schema components_xsd Drilldown into Pricing in schema components_xsd Drilldown into HandlingAmount in schema components_xsdXSD Diagram of SubletType in schema components_xsd (Standards for Technology in Automotive Retail)
Collapse XSD Schema Code:
<xsd:complexType name="SubletType">
    <xsd:sequence>
        <xsd:element minOccurs="0" name="HandlingAmount" type="udt:AmountType">
            <xsd:annotation>
                <xsd:documentation>
                        Sublet handling charges
                    </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element maxOccurs="unbounded" minOccurs="1" ref="Pricing">
            <xsd:annotation>
                <xsd:documentation>
                        Sublet Invoice Price
                    </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element minOccurs="0" name="AuthorizationNumberString" type="qdt:StringType">
            <xsd:annotation>
                <xsd:documentation>
                        Third party purchase order number for
                        work
                    </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="SubletCode" type="udt:CodeType">
            <xsd:annotation>
                <xsd:documentation>
                        Type of sublet work
                    </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element maxOccurs="unbounded" minOccurs="1" name="SubletWorkDescription" type="udt:TextType">
            <xsd:annotation>
                <xsd:documentation>
                        Free form text comments relating to
                        sublet
                    </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element minOccurs="0" name="SubletInvoiceNumberString" type="qdt:StringType">
            <xsd:annotation>
                <xsd:documentation>
                        Third party invoice number for work
                    </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element minOccurs="0" name="AppealActionCode" type="udt:CodeType">
            <xsd:annotation>
                <xsd:documentation>
                        Defines action to be taken on appeal
                    </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element minOccurs="0" name="ProviderName" type="udt:NameType">
            <xsd:annotation>
                <xsd:documentation>
                        Party that provided the service or
                        vehicle
                    </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element minOccurs="0" name="LaborRateAmount" type="udt:AmountType">
            <xsd:annotation>
                <xsd:documentation>
                        Dealer Posted Hourly Retail Labor Rate
                    </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element minOccurs="0" ref="CodesAndCommentsExpanded">
            <xsd:annotation>
                <xsd:documentation>
                        Codes and comments related to Sublet
                    </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element maxOccurs="unbounded" minOccurs="0" ref="Diagnostics">
            <xsd:annotation>
                <xsd:documentation>
                        Diagnostics from vehicle service associated with
                        sublet
                    </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element maxOccurs="unbounded" minOccurs="0" ref="ServiceParts">
            <xsd:annotation>
                <xsd:documentation>
                        Parts used on sublet
                    </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element maxOccurs="unbounded" minOccurs="0" ref="ServiceCampaign">
            <xsd:annotation>
                <xsd:documentation>
                        Service Campaign (Recall) associated with
                        sublet
                    </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element maxOccurs="unbounded" minOccurs="0" ref="ServiceLabor">
            <xsd:annotation>
                <xsd:documentation>
                        Labor used on sublet
                    </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element maxOccurs="unbounded" minOccurs="0" ref="Coupon">
            <xsd:annotation>
                <xsd:documentation>
                        Coupn used on sublet
                    </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element maxOccurs="unbounded" minOccurs="0" ref="ServiceTechnicianParty">
            <xsd:annotation>
                <xsd:documentation>
                        Technician associcated with sublet
                    </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element maxOccurs="unbounded" minOccurs="0" ref="ServiceComponents">
            <xsd:annotation>
                <xsd:documentation>
                        Service Components associated with sublet(Miscellaneous,
                            GasOilGrease, PaintMaterials, ShopSupplies and Freight
                    </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element minOccurs="0" ref="Splits">
            <xsd:annotation>
                <xsd:documentation>
                        Splits assoicated with sublet
                    </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element maxOccurs="unbounded" minOccurs="0" ref="Transportation">
            <xsd:annotation>
                <xsd:documentation>
                        Transportation associcated with sublet
                    </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element maxOccurs="unbounded" minOccurs="0" ref="Tax">
            <xsd:annotation>
                <xsd:documentation>
                        Sublet tax price on associated parts and
                        labor
                    </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element maxOccurs="unbounded" minOccurs="0" ref="RentLoaner">
            <xsd:annotation>
                <xsd:documentation>
                        Rental or Loaner verhicles associated with Repair
                        Order
                    </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element maxOccurs="1" minOccurs="0" name="CompletionDateTime" type="udt:DateTimeType">
            <xsd:annotation>
                <xsd:documentation source="http://www.starstandard.org/STAR/5"> The date, time, date
                         time or other date time value for a complete period of time expressed as a specific
                         month, a specific week etc. type code for a particular Bulletin.
                     </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
HandlingAmount star:HandlingAmount 0 (1)
Pricing star:Pricing 1 unbounded
AuthorizationNumberString star:AuthorizationNumberString 0 (1)
SubletCode star:SubletCode (1) (1)
SubletWorkDescription star:SubletWorkDescription 1 unbounded
SubletInvoiceNumberString star:SubletInvoiceNumberString 0 (1)
AppealActionCode star:AppealActionCode 0 (1)
ProviderName star:ProviderName 0 (1)
LaborRateAmount star:LaborRateAmount 0 (1)
CodesAndCommentsExpanded star:CodesAndCommentsExpanded 0 (1)
Diagnostics star:Diagnostics 0 unbounded
ServiceParts star:ServiceParts 0 unbounded
ServiceCampaign star:ServiceCampaign 0 unbounded
ServiceLabor star:ServiceLabor 0 unbounded
Coupon star:Coupon 0 unbounded
ServiceTechnicianParty star:ServiceTechnicianParty 0 unbounded
ServiceComponents star:ServiceComponents 0 unbounded
Splits star:Splits 0 (1)
Transportation star:Transportation 0 unbounded
Tax star:Tax 0 unbounded
RentLoaner star:RentLoaner 0 unbounded
CompletionDateTime star:CompletionDateTime 0 1
Collapse Derivation Tree:
Collapse References:
star:Sublet
