Documentation for SportsML
Definition Type: Element
Name: td
Namespace: http://iptc.org/std/NITF/2006-10-18/
Containing Schema: nitf-3-4.xsd
Abstract

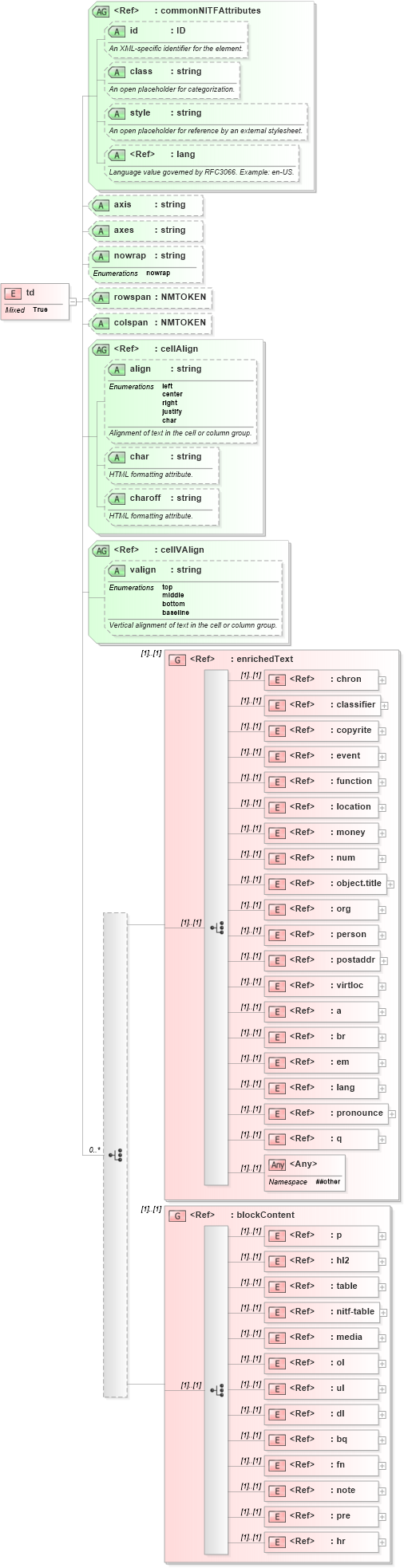

Collapse XSD Schema Diagram:
Drilldown into hr in schema nitf-3-4_xsd Drilldown into pre in schema nitf-3-4_xsd Drilldown into note in schema nitf-3-4_xsd Drilldown into fn in schema nitf-3-4_xsd Drilldown into bq in schema nitf-3-4_xsd Drilldown into dl in schema nitf-3-4_xsd Drilldown into ul in schema nitf-3-4_xsd Drilldown into ol in schema nitf-3-4_xsd Drilldown into media in schema nitf-3-4_xsd Drilldown into nitf-table in schema nitf-3-4_xsd Drilldown into table in schema nitf-3-4_xsd Drilldown into hl2 in schema nitf-3-4_xsd Drilldown into p in schema nitf-3-4_xsd Drilldown into blockContent in schema nitf-3-4_xsd Drilldown into q in schema nitf-3-4_xsd Drilldown into pronounce in schema nitf-3-4_xsd Drilldown into lang in schema nitf-3-4_xsd Drilldown into em in schema nitf-3-4_xsd Drilldown into br in schema nitf-3-4_xsd Drilldown into a in schema nitf-3-4_xsd Drilldown into virtloc in schema nitf-3-4_xsd Drilldown into postaddr in schema nitf-3-4_xsd Drilldown into person in schema nitf-3-4_xsd Drilldown into org in schema nitf-3-4_xsd Drilldown into object.title in schema nitf-3-4_xsd Drilldown into num in schema nitf-3-4_xsd Drilldown into money in schema nitf-3-4_xsd Drilldown into location in schema nitf-3-4_xsd Drilldown into function in schema nitf-3-4_xsd Drilldown into event in schema nitf-3-4_xsd Drilldown into copyrite in schema nitf-3-4_xsd Drilldown into classifier in schema nitf-3-4_xsd Drilldown into chron in schema nitf-3-4_xsd Drilldown into enrichedText in schema nitf-3-4_xsd Drilldown into valign in schema nitf-3-4_xsd Drilldown into cellVAlign in schema nitf-3-4_xsd Drilldown into charoff in schema nitf-3-4_xsd Drilldown into char in schema nitf-3-4_xsd Drilldown into align in schema nitf-3-4_xsd Drilldown into cellAlign in schema nitf-3-4_xsd Drilldown into colspan in schema nitf-3-4_xsd Drilldown into rowspan in schema nitf-3-4_xsd Drilldown into nowrap in schema nitf-3-4_xsd Drilldown into axes in schema nitf-3-4_xsd Drilldown into axis in schema nitf-3-4_xsd Drilldown into lang in schema xml_xsd Drilldown into style in schema nitf-3-4_xsd Drilldown into class in schema nitf-3-4_xsd Drilldown into id in schema nitf-3-4_xsd Drilldown into commonNITFAttributes in schema nitf-3-4_xsdXSD Diagram of td in schema nitf-3-4_xsd (SportsML)
Collapse XSD Schema Code:
<element name="td">
    <complexType mixed="true">
        <choice minOccurs="0" maxOccurs="unbounded">
            <group ref="nitf:enrichedText" />
            <group ref="nitf:blockContent" />
        </choice>
        <attributeGroup ref="nitf:commonNITFAttributes" />
        <attribute name="axis" type="string" use="optional" />
        <attribute name="axes" type="string" use="optional" />
        <attribute name="nowrap" use="optional">
            <simpleType>
                <restriction base="string">
                    <enumeration value="nowrap" />
                </restriction>
            </simpleType>
        </attribute>
        <attribute name="rowspan" type="NMTOKEN" use="optional" />
        <attribute name="colspan" type="NMTOKEN" use="optional" />
        <attributeGroup ref="nitf:cellAlign" />
        <attributeGroup ref="nitf:cellVAlign" />
    </complexType>
</element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
chron nitf:chron (1) (1)
classifier nitf:classifier (1) (1)
copyrite nitf:copyrite (1) (1)
event nitf:event (1) (1)
function nitf:function (1) (1)
location nitf:location (1) (1)
money nitf:money (1) (1)
num nitf:num (1) (1)
object.title nitf:object.title (1) (1)
org nitf:org (1) (1)
person nitf:person (1) (1)
postaddr nitf:postaddr (1) (1)
virtloc nitf:virtloc (1) (1)
a nitf:a (1) (1)
br nitf:br (1) (1)
em nitf:em (1) (1)
lang nitf:lang (1) (1)
pronounce nitf:pronounce (1) (1)
q nitf:q (1) (1)
p nitf:p (1) (1)
hl2 nitf:hl2 (1) (1)
table nitf:table (1) (1)
nitf-table nitf:nitf-table (1) (1)
media nitf:media (1) (1)
ol nitf:ol (1) (1)
ul nitf:ul (1) (1)
dl nitf:dl (1) (1)
bq nitf:bq (1) (1)
fn nitf:fn (1) (1)
note nitf:note (1) (1)
pre nitf:pre (1) (1)
hr nitf:hr (1) (1)
<xs:any> Allowed namespace: '##other' (1) (1)
<xs:group> nitf:enrichedText (1) (1)
<xs:group> nitf:blockContent (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id nitf:id Optional
class nitf:class Optional
style nitf:style Optional
lang nsA:lang Optional
axis nitf:axis Optional
axes nitf:axes Optional
nowrap nitf:nowrap Optional
rowspan nitf:rowspan Optional
colspan nitf:colspan Optional
align nitf:align Optional
char nitf:char Optional
charoff nitf:charoff Optional
valign nitf:valign Optional
