Definition Type: Element
Name: concept
Namespace: http://iptc.org/std/nar/2006-10-01/
Containing Schema: NewsML-G2_2.22-spec-All-Power.xsd
Abstract
Documentation:
A set of properties defining a concept

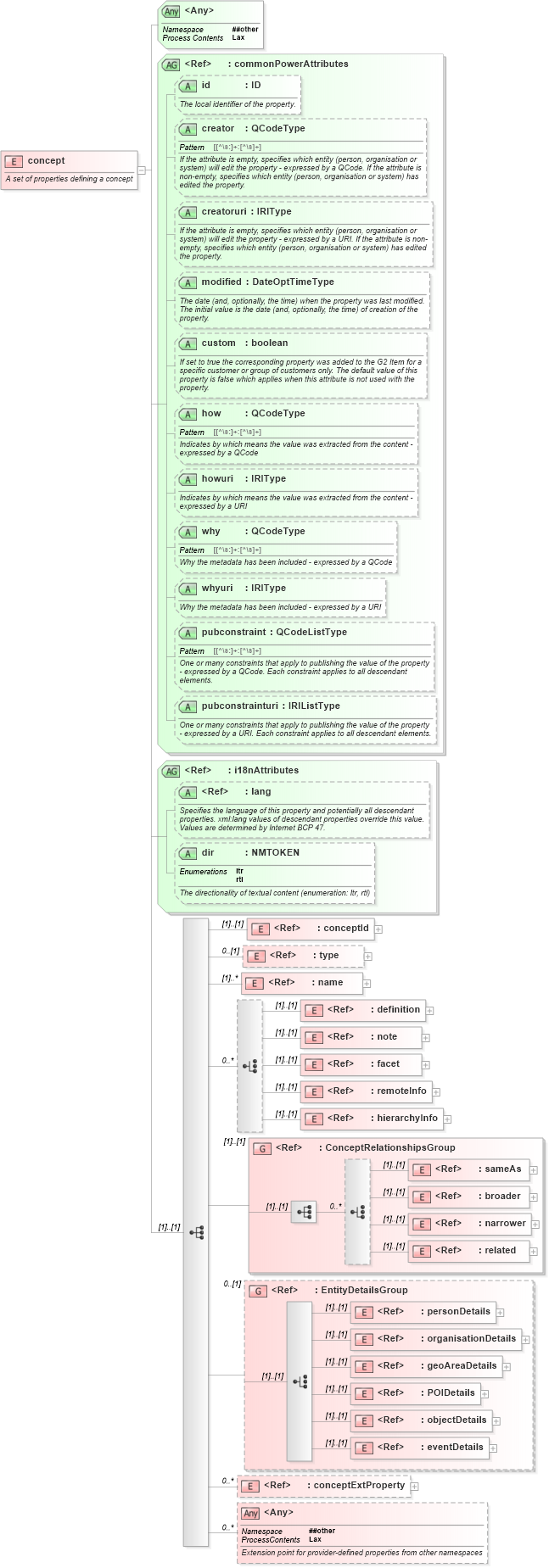

Collapse XSD Schema Diagram:
Drilldown into conceptExtProperty in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into eventDetails in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into objectDetails in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into POIDetails in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into geoAreaDetails in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into organisationDetails in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into personDetails in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into EntityDetailsGroup in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into related in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into narrower in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into broader in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into sameAs in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into ConceptRelationshipsGroup in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into hierarchyInfo in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into remoteInfo in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into facet in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into note in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into definition in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into name in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into type in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into conceptId in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into dir in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into  in schema Drilldown into i18nAttributes in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into pubconstrainturi in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into pubconstraint in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into whyuri in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into why in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into howuri in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into how in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into custom in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into modified in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into creatoruri in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into creator in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into id in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into commonPowerAttributes in schema newsml-g2_2_22-spec-all-power_xsdXSD Diagram of concept in schema newsml-g2_2_22-spec-all-power_xsd (SportsML)
Collapse XSD Schema Code:
<xs:element name="concept">
    <xs:annotation>
        <xs:documentation>A set of properties defining a concept</xs:documentation>
    </xs:annotation>
    <xs:complexType>
        <xs:sequence>
            <xs:element ref="conceptId" />
            <xs:element ref="type" minOccurs="0" />
            <xs:element ref="name" maxOccurs="unbounded" />
            <xs:choice minOccurs="0" maxOccurs="unbounded">
                <xs:element ref="definition" />
                <xs:element ref="note" />
                <xs:element ref="facet" />
                <xs:element ref="remoteInfo" />
                <xs:element ref="hierarchyInfo" />
            </xs:choice>
            <xs:group ref="ConceptRelationshipsGroup" />
            <xs:group ref="EntityDetailsGroup" minOccurs="0" />
            <xs:element ref="conceptExtProperty" minOccurs="0" maxOccurs="unbounded" />
            <xs:any namespace="##other" processContents="lax" minOccurs="0" maxOccurs="unbounded">
                <xs:annotation>
                    <xs:documentation>Extension point for provider-defined properties from other namespaces</xs:documentation>
                </xs:annotation>
            </xs:any>
        </xs:sequence>
        <xs:attributeGroup ref="commonPowerAttributes" />
        <xs:attributeGroup ref="i18nAttributes" />
        <xs:anyAttribute namespace="##other" processContents="lax" />
    </xs:complexType>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
conceptId nsA:conceptId (1) (1)
type nsA:type 0 (1)
name nsA:name (1) unbounded
definition nsA:definition (1) (1)
note nsA:note (1) (1)
facet nsA:facet (1) (1)
remoteInfo nsA:remoteInfo (1) (1)
hierarchyInfo nsA:hierarchyInfo (1) (1)
sameAs nsA:sameAs (1) (1)
broader nsA:broader (1) (1)
narrower nsA:narrower (1) (1)
related nsA:related (1) (1)
personDetails nsA:personDetails (1) (1)
organisationDetails nsA:organisationDetails (1) (1)
geoAreaDetails nsA:geoAreaDetails (1) (1)
POIDetails nsA:POIDetails (1) (1)
objectDetails nsA:objectDetails (1) (1)
eventDetails nsA:eventDetails (1) (1)
conceptExtProperty nsA:conceptExtProperty 0 unbounded
<xs:any> Allowed namespace: '##other' 0 unbounded
<xs:group> nsA:ConceptRelationshipsGroup (1) (1)
<xs:group> nsA:EntityDetailsGroup 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
id nsA:id Optional
creator nsA:creator Optional
creatoruri nsA:creatoruri Optional
modified nsA:modified Optional
custom nsA:custom Optional
how nsA:how Optional
howuri nsA:howuri Optional
why nsA:why Optional
whyuri nsA:whyuri Optional
pubconstraint nsA:pubconstraint Optional
pubconstrainturi nsA:pubconstrainturi Optional
lang Unresolved link to lang Optional
dir nsA:dir Optional
<anyAttribute> Allowed namespace: '##other'
