Documentation for HR-XML - Human Resources XML
Definition Type: Element
Name: Assignment
Namespace: http://ns.hr-xml.org/2007-04-15
Type: hr:AssignmentType
Containing Schema: Assignment.xsd
Abstract

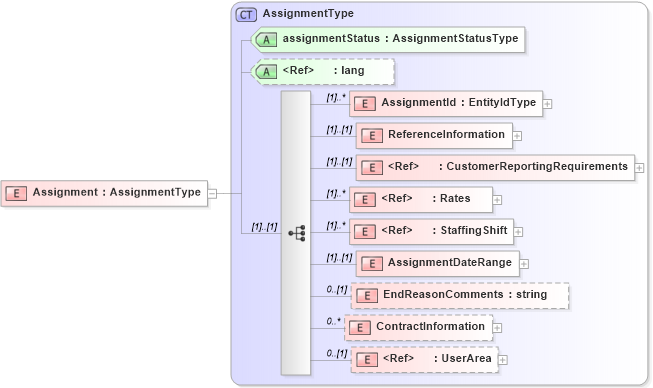

Collapse XSD Schema Diagram:
Drilldown into UserArea in schema userarea_xsd Drilldown into ContractInformation in schema assignment_xsd Drilldown into EndReasonComments in schema assignment_xsd Drilldown into AssignmentDateRange in schema assignment_xsd Drilldown into StaffingShift in schema staffingshift_xsd Drilldown into Rates in schema rates_xsd Drilldown into CustomerReportingRequirements in schema customerreportingrequirements_xsd Drilldown into ReferenceInformation in schema assignment_xsd Drilldown into AssignmentId in schema assignment_xsd Drilldown into lang in schema xml_xsd Drilldown into assignmentStatus in schema assignment_xsd Drilldown into AssignmentType in schema assignment_xsdXSD Diagram of Assignment in schema assignment_xsd (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xsd:element name="Assignment" type="AssignmentType" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
AssignmentId hr:AssignmentId (1) unbounded
ReferenceInformation hr:ReferenceInformation (1) (1)
CustomerReportingRequirements hr:CustomerReportingRequirements (1) (1)
Rates hr:Rates (1) unbounded
StaffingShift hr:StaffingShift (1) unbounded
AssignmentDateRange hr:AssignmentDateRange (1) (1)
EndReasonComments hr:EndReasonComments 0 (1)
ContractInformation hr:ContractInformation 0 unbounded
UserArea hr:UserArea 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
assignmentStatus hr:assignmentStatus Required
lang nsA:lang (Optional)
Collapse Derivation Tree:
