Documentation for Open Applications Group (OAGIS)
Definition Type: ComplexType
Name: MaintenanceOrderHeaderType
Namespace: http://www.openapplications.org/oagis/9
Type: nsA:HeaderType
Containing Schema: MaintenanceOrder.xsd
Abstract

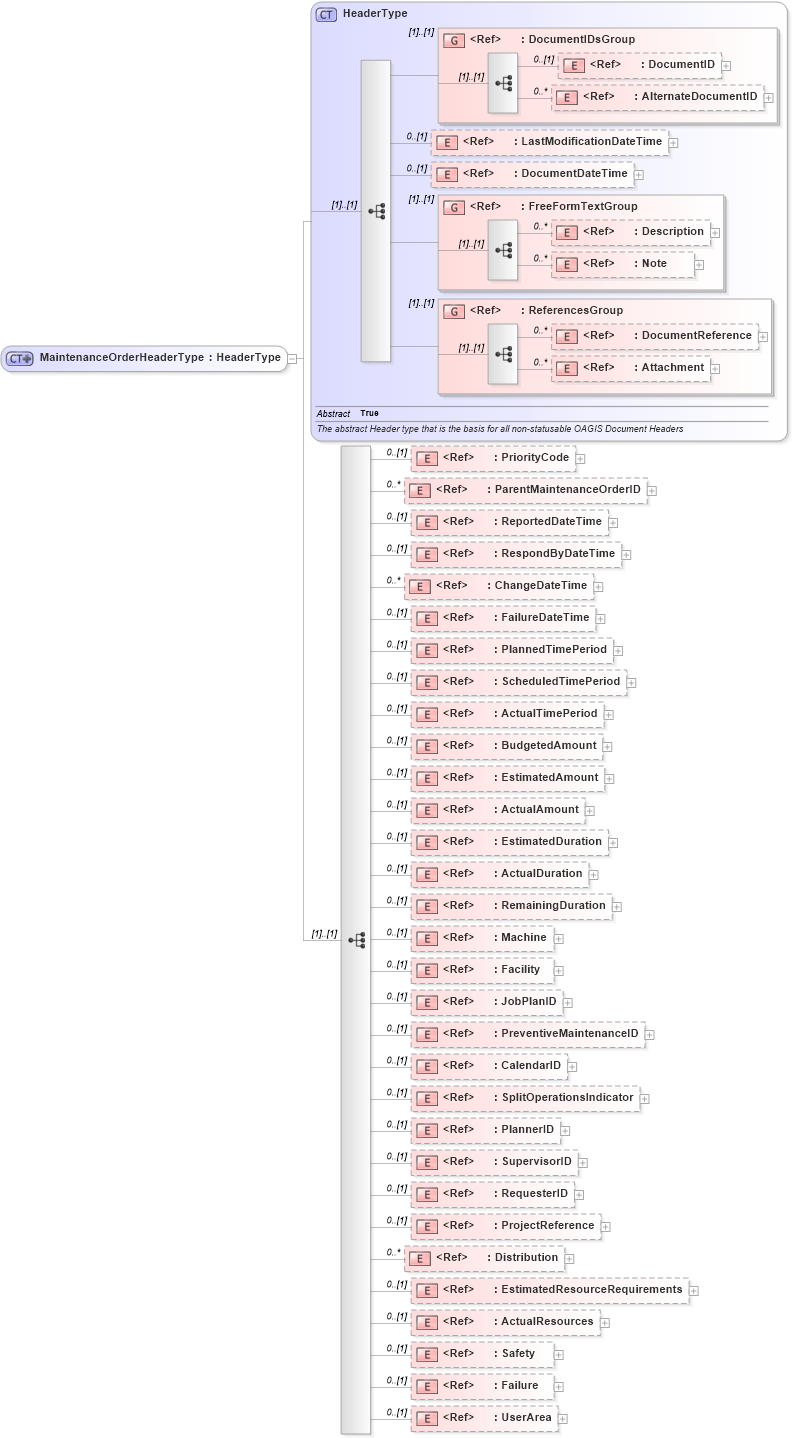

Collapse XSD Schema Diagram:
Drilldown into UserArea in schema fields_xsd Drilldown into Failure in schema components_xsd Drilldown into Safety in schema components_xsd Drilldown into ActualResources in schema manufacturingcomponents_xsd Drilldown into EstimatedResourceRequirements in schema manufacturingcomponents_xsd Drilldown into Distribution in schema components_xsd Drilldown into ProjectReference in schema components_xsd Drilldown into RequesterID in schema fields_xsd Drilldown into SupervisorID in schema fields_xsd Drilldown into PlannerID in schema fields_xsd Drilldown into SplitOperationsIndicator in schema fields_xsd Drilldown into CalendarID in schema fields_xsd Drilldown into PreventiveMaintenanceID in schema fields_xsd Drilldown into JobPlanID in schema fields_xsd Drilldown into Facility in schema components_xsd Drilldown into Machine in schema manufacturingcomponents_xsd Drilldown into RemainingDuration in schema fields_xsd Drilldown into ActualDuration in schema fields_xsd Drilldown into EstimatedDuration in schema fields_xsd Drilldown into ActualAmount in schema fields_xsd Drilldown into EstimatedAmount in schema fields_xsd Drilldown into BudgetedAmount in schema fields_xsd Drilldown into ActualTimePeriod in schema components_xsd Drilldown into ScheduledTimePeriod in schema components_xsd Drilldown into PlannedTimePeriod in schema components_xsd Drilldown into FailureDateTime in schema fields_xsd Drilldown into ChangeDateTime in schema fields_xsd Drilldown into RespondByDateTime in schema fields_xsd Drilldown into ReportedDateTime in schema fields_xsd Drilldown into ParentMaintenanceOrderID in schema fields_xsd Drilldown into PriorityCode in schema fields_xsd Drilldown into Attachment in schema components_xsd Drilldown into DocumentReference in schema components_xsd Drilldown into ReferencesGroup in schema components_xsd Drilldown into Note in schema fields_xsd Drilldown into Description in schema fields_xsd Drilldown into FreeFormTextGroup in schema meta_xsd Drilldown into DocumentDateTime in schema fields_xsd Drilldown into LastModificationDateTime in schema fields_xsd Drilldown into AlternateDocumentID in schema components_xsd Drilldown into DocumentID in schema components_xsd Drilldown into DocumentIDsGroup in schema components_xsd Drilldown into HeaderType in schema components_xsdXSD Diagram of MaintenanceOrderHeaderType in schema maintenanceorder_xsd (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xsd:complexType name="MaintenanceOrderHeaderType">
    <xsd:complexContent>
        <xsd:extension base="HeaderType">
            <xsd:sequence>
                <xsd:element ref="PriorityCode" minOccurs="0">
                    <xsd:annotation>
                        <xsd:documentation source="http://www.openapplications.org/oagis/9">Identifies the priority of the MaintenanceOrder</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element ref="ParentMaintenanceOrderID" minOccurs="0" maxOccurs="unbounded">
                    <xsd:annotation>
                        <xsd:documentation source="http://www.openapplications.org/oagis/9">Indicates the maintenance order that proceeded this order or from which this maintenance order originated after further investigation or work was performed.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element ref="ReportedDateTime" minOccurs="0">
                    <xsd:annotation>
                        <xsd:documentation source="http://www.openapplications.org/oagis/9">Identifies when the work to be done in this work order was reported</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element ref="RespondByDateTime" minOccurs="0">
                    <xsd:annotation>
                        <xsd:documentation source="http://www.openapplications.org/oagis/9">Indicates the date by which a response is expected for this maintenance order</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element ref="ChangeDateTime" minOccurs="0" maxOccurs="unbounded">
                    <xsd:annotation>
                        <xsd:documentation source="http://www.openapplications.org/oagis/9">Timestamp in which the maintenance order was changed.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element ref="FailureDateTime" minOccurs="0">
                    <xsd:annotation>
                        <xsd:documentation source="http://www.openapplications.org/oagis/9">Indicates the timestamp when the machine failed or broke down such that it was no longer useable.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element ref="PlannedTimePeriod" minOccurs="0">
                    <xsd:annotation>
                        <xsd:documentation source="http://www.openapplications.org/oagis/9">Indicates the Planned TimePeriod in which the maintenance order is planned to be performed.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element ref="ScheduledTimePeriod" minOccurs="0">
                    <xsd:annotation>
                        <xsd:documentation source="http://www.openapplications.org/oagis/9">Is the TimePeriod in which the work is Scheduled to be performed.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element ref="ActualTimePeriod" minOccurs="0">
                    <xsd:annotation>
                        <xsd:documentation source="http://www.openapplications.org/oagis/9">Is the TimePeriod in which the work was actually done. There maybe multiple occurances of this compound if part of the work was completed and the remainder performed at another time. This may happen when a part needs to be ordered.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element ref="BudgetedAmount" minOccurs="0">
                    <xsd:annotation>
                        <xsd:documentation source="http://www.openapplications.org/oagis/9">Is the monetary amount budgeted for the MaintenanceOrder.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element ref="EstimatedAmount" minOccurs="0">
                    <xsd:annotation>
                        <xsd:documentation source="http://www.openapplications.org/oagis/9">Is the EstimatedAmount of the MaintenanceOrder.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element ref="ActualAmount" minOccurs="0">
                    <xsd:annotation>
                        <xsd:documentation source="http://www.openapplications.org/oagis/9">Is the ActualAmount of the MaintenanceOrder.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element ref="EstimatedDuration" minOccurs="0">
                    <xsd:annotation>
                        <xsd:documentation source="http://www.openapplications.org/oagis/9">Is an estimate as to how long it will take to complete the MaintenanceOrder.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element ref="ActualDuration" minOccurs="0">
                    <xsd:annotation>
                        <xsd:documentation source="http://www.openapplications.org/oagis/9">Is the total time spent working on the MaintenanceOrder. Is all of the sum of all the occurances of the ActualTimePeriod.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element ref="RemainingDuration" minOccurs="0">
                    <xsd:annotation>
                        <xsd:documentation source="http://www.openapplications.org/oagis/9">Time needed to complete the MaintenanceOrder.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element ref="Machine" minOccurs="0">
                    <xsd:annotation>
                        <xsd:documentation source="http://www.openapplications.org/oagis/9">Indicates the status of the machine.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element ref="Facility" minOccurs="0" />
                <xsd:element ref="JobPlanID" minOccurs="0">
                    <xsd:annotation>
                        <xsd:documentation source="http://www.openapplications.org/oagis/9">Is a identifier that describes the specific type of job sequence being performed/requested.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element ref="PreventiveMaintenanceID" minOccurs="0">
                    <xsd:annotation>
                        <xsd:documentation source="http://www.openapplications.org/oagis/9">Describes the specific type of preventive maintenance sequence being performed/requested.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element ref="CalendarID" minOccurs="0">
                    <xsd:annotation>
                        <xsd:documentation source="http://www.openapplications.org/oagis/9">Identifies the maintenance calendar used when scheduling this maintenance order</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element ref="SplitOperationsIndicator" minOccurs="0">
                    <xsd:annotation>
                        <xsd:documentation source="http://www.openapplications.org/oagis/9">Indicates whether an operation in a maintenance order have to be performed all at once or can be split into non-contiguous work segments.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element ref="PlannerID" minOccurs="0" />
                <xsd:element ref="SupervisorID" minOccurs="0" />
                <xsd:element ref="RequesterID" minOccurs="0" />
                <xsd:element ref="ProjectReference" minOccurs="0" />
                <xsd:element ref="Distribution" minOccurs="0" maxOccurs="unbounded" />
                <xsd:element ref="EstimatedResourceRequirements" minOccurs="0">
                    <xsd:annotation>
                        <xsd:documentation>This identifies resources that are required to perform the maintenance operation. Resource Requirements can be specified for the entire maintenance order or for each operation within the order</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element ref="ActualResources" minOccurs="0">
                    <xsd:annotation>
                        <xsd:documentation>This identifies the actual usage of resources against the requirements estimated for the work order</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element ref="Safety" minOccurs="0" />
                <xsd:element ref="Failure" minOccurs="0" />
                <xsd:element ref="UserArea" minOccurs="0" />
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
DocumentID nsA:DocumentID 0 (1)
AlternateDocumentID nsA:AlternateDocumentID 0 unbounded
LastModificationDateTime nsA:LastModificationDateTime 0 (1)
DocumentDateTime nsA:DocumentDateTime 0 (1)
Description nsA:Description 0 unbounded
Note nsA:Note 0 unbounded
DocumentReference nsA:DocumentReference 0 unbounded
Attachment nsA:Attachment 0 unbounded
PriorityCode nsA:PriorityCode 0 (1)
ParentMaintenanceOrderID nsA:ParentMaintenanceOrderID 0 unbounded
ReportedDateTime nsA:ReportedDateTime 0 (1)
RespondByDateTime nsA:RespondByDateTime 0 (1)
ChangeDateTime nsA:ChangeDateTime 0 unbounded
FailureDateTime nsA:FailureDateTime 0 (1)
PlannedTimePeriod nsA:PlannedTimePeriod 0 (1)
ScheduledTimePeriod nsA:ScheduledTimePeriod 0 (1)
ActualTimePeriod nsA:ActualTimePeriod 0 (1)
BudgetedAmount nsA:BudgetedAmount 0 (1)
EstimatedAmount nsA:EstimatedAmount 0 (1)
ActualAmount nsA:ActualAmount 0 (1)
EstimatedDuration nsA:EstimatedDuration 0 (1)
ActualDuration nsA:ActualDuration 0 (1)
RemainingDuration nsA:RemainingDuration 0 (1)
Machine nsA:Machine 0 (1)
Facility nsA:Facility 0 (1)
JobPlanID nsA:JobPlanID 0 (1)
PreventiveMaintenanceID nsA:PreventiveMaintenanceID 0 (1)
CalendarID nsA:CalendarID 0 (1)
SplitOperationsIndicator nsA:SplitOperationsIndicator 0 (1)
PlannerID nsA:PlannerID 0 (1)
SupervisorID nsA:SupervisorID 0 (1)
RequesterID nsA:RequesterID 0 (1)
ProjectReference nsA:ProjectReference 0 (1)
Distribution nsA:Distribution 0 unbounded
EstimatedResourceRequirements nsA:EstimatedResourceRequirements 0 (1)
ActualResources nsA:ActualResources 0 (1)
Safety nsA:Safety 0 (1)
Failure nsA:Failure 0 (1)
UserArea nsA:UserArea 0 (1)
<xs:group> nsA:DocumentIDsGroup (1) (1)
<xs:group> nsA:FreeFormTextGroup (1) (1)
<xs:group> nsA:ReferencesGroup (1) (1)
Collapse Derivation Tree:
Collapse References:
nsA:MaintenanceOrderHeader
