Documentation for Open Applications Group (OAGIS)
Definition Type: Element
Name: ProductionOrderHeader
Namespace: http://www.openapplications.org/oagis/9
Type: nsA:ProductionOrderHeaderType
Containing Schema: ProductionOrder.xsd
Abstract
Documentation:
Information used to communicate the details of the production order requested to be initiated.

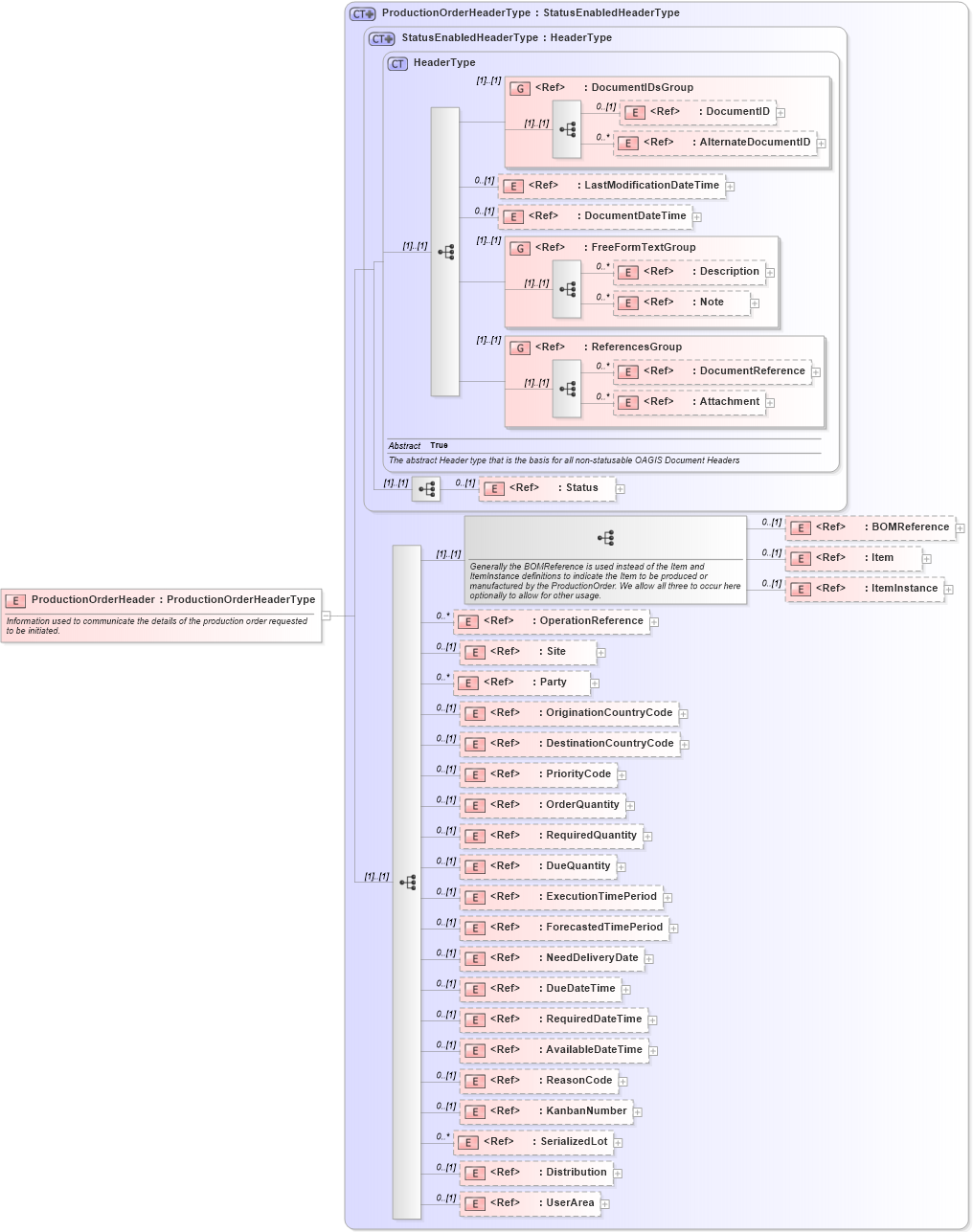

Collapse XSD Schema Diagram:
Drilldown into UserArea in schema fields_xsd Drilldown into Distribution in schema components_xsd Drilldown into SerializedLot in schema components_xsd Drilldown into KanbanNumber in schema fields_xsd Drilldown into ReasonCode in schema fields_xsd Drilldown into AvailableDateTime in schema fields_xsd Drilldown into RequiredDateTime in schema fields_xsd Drilldown into DueDateTime in schema fields_xsd Drilldown into NeedDeliveryDate in schema fields_xsd Drilldown into ForecastedTimePeriod in schema components_xsd Drilldown into ExecutionTimePeriod in schema components_xsd Drilldown into DueQuantity in schema fields_xsd Drilldown into RequiredQuantity in schema fields_xsd Drilldown into OrderQuantity in schema fields_xsd Drilldown into PriorityCode in schema fields_xsd Drilldown into DestinationCountryCode in schema fields_xsd Drilldown into OriginationCountryCode in schema fields_xsd Drilldown into Party in schema components_xsd Drilldown into Site in schema components_xsd Drilldown into OperationReference in schema components_xsd Drilldown into ItemInstance in schema components_xsd Drilldown into Item in schema components_xsd Drilldown into BOMReference in schema components_xsd Drilldown into Status in schema components_xsd Drilldown into Attachment in schema components_xsd Drilldown into DocumentReference in schema components_xsd Drilldown into ReferencesGroup in schema components_xsd Drilldown into Note in schema fields_xsd Drilldown into Description in schema fields_xsd Drilldown into FreeFormTextGroup in schema meta_xsd Drilldown into DocumentDateTime in schema fields_xsd Drilldown into LastModificationDateTime in schema fields_xsd Drilldown into AlternateDocumentID in schema components_xsd Drilldown into DocumentID in schema components_xsd Drilldown into DocumentIDsGroup in schema components_xsd Drilldown into HeaderType in schema components_xsd Drilldown into StatusEnabledHeaderType in schema components_xsd Drilldown into ProductionOrderHeaderType in schema productionorder_xsdXSD Diagram of ProductionOrderHeader in schema productionorder_xsd (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xsd:element name="ProductionOrderHeader" type="ProductionOrderHeaderType">
    <xsd:annotation>
        <xsd:documentation source="http://www.openapplications.org/oagis/9">Information used to communicate the details of the production order requested to be initiated.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
DocumentID nsA:DocumentID 0 (1)
AlternateDocumentID nsA:AlternateDocumentID 0 unbounded
LastModificationDateTime nsA:LastModificationDateTime 0 (1)
DocumentDateTime nsA:DocumentDateTime 0 (1)
Description nsA:Description 0 unbounded
Note nsA:Note 0 unbounded
DocumentReference nsA:DocumentReference 0 unbounded
Attachment nsA:Attachment 0 unbounded
Status nsA:Status 0 (1)
BOMReference nsA:BOMReference 0 (1)
Item nsA:Item 0 (1)
ItemInstance nsA:ItemInstance 0 (1)
OperationReference nsA:OperationReference 0 unbounded
Site nsA:Site 0 (1)
Party nsA:Party 0 unbounded
OriginationCountryCode nsA:OriginationCountryCode 0 (1)
DestinationCountryCode nsA:DestinationCountryCode 0 (1)
PriorityCode nsA:PriorityCode 0 (1)
OrderQuantity nsA:OrderQuantity 0 (1)
RequiredQuantity nsA:RequiredQuantity 0 (1)
DueQuantity nsA:DueQuantity 0 (1)
ExecutionTimePeriod nsA:ExecutionTimePeriod 0 (1)
ForecastedTimePeriod nsA:ForecastedTimePeriod 0 (1)
NeedDeliveryDate nsA:NeedDeliveryDate 0 (1)
DueDateTime nsA:DueDateTime 0 (1)
RequiredDateTime nsA:RequiredDateTime 0 (1)
AvailableDateTime nsA:AvailableDateTime 0 (1)
ReasonCode nsA:ReasonCode 0 (1)
KanbanNumber nsA:KanbanNumber 0 (1)
SerializedLot nsA:SerializedLot 0 unbounded
Distribution nsA:Distribution 0 (1)
UserArea nsA:UserArea 0 (1)
<xs:group> nsA:DocumentIDsGroup (1) (1)
<xs:group> nsA:FreeFormTextGroup (1) (1)
<xs:group> nsA:ReferencesGroup (1) (1)
Collapse Derivation Tree:
