Documentation for Open Applications Group (OAGIS)
Definition Type: ComplexType
Name: ProductionOrderHeaderType
Namespace: http://www.openapplications.org/oagis/9
Type: nsA:StatusEnabledHeaderType
Containing Schema: ProductionOrder.xsd
Abstract

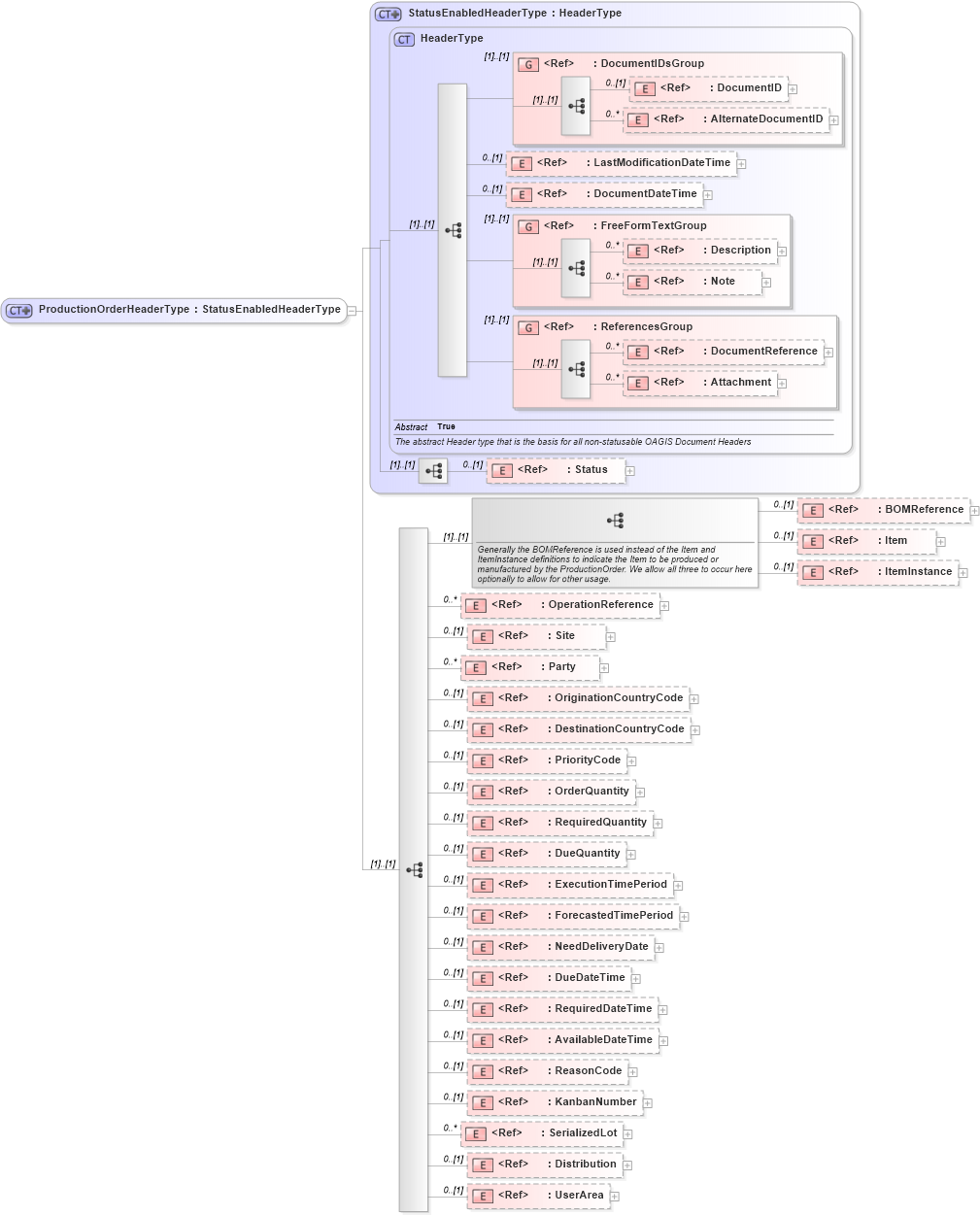

Collapse XSD Schema Diagram:
Drilldown into UserArea in schema fields_xsd Drilldown into Distribution in schema components_xsd Drilldown into SerializedLot in schema components_xsd Drilldown into KanbanNumber in schema fields_xsd Drilldown into ReasonCode in schema fields_xsd Drilldown into AvailableDateTime in schema fields_xsd Drilldown into RequiredDateTime in schema fields_xsd Drilldown into DueDateTime in schema fields_xsd Drilldown into NeedDeliveryDate in schema fields_xsd Drilldown into ForecastedTimePeriod in schema components_xsd Drilldown into ExecutionTimePeriod in schema components_xsd Drilldown into DueQuantity in schema fields_xsd Drilldown into RequiredQuantity in schema fields_xsd Drilldown into OrderQuantity in schema fields_xsd Drilldown into PriorityCode in schema fields_xsd Drilldown into DestinationCountryCode in schema fields_xsd Drilldown into OriginationCountryCode in schema fields_xsd Drilldown into Party in schema components_xsd Drilldown into Site in schema components_xsd Drilldown into OperationReference in schema components_xsd Drilldown into ItemInstance in schema components_xsd Drilldown into Item in schema components_xsd Drilldown into BOMReference in schema components_xsd Drilldown into Status in schema components_xsd Drilldown into Attachment in schema components_xsd Drilldown into DocumentReference in schema components_xsd Drilldown into ReferencesGroup in schema components_xsd Drilldown into Note in schema fields_xsd Drilldown into Description in schema fields_xsd Drilldown into FreeFormTextGroup in schema meta_xsd Drilldown into DocumentDateTime in schema fields_xsd Drilldown into LastModificationDateTime in schema fields_xsd Drilldown into AlternateDocumentID in schema components_xsd Drilldown into DocumentID in schema components_xsd Drilldown into DocumentIDsGroup in schema components_xsd Drilldown into HeaderType in schema components_xsd Drilldown into StatusEnabledHeaderType in schema components_xsdXSD Diagram of ProductionOrderHeaderType in schema productionorder_xsd (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xsd:complexType name="ProductionOrderHeaderType">
    <xsd:complexContent>
        <xsd:extension base="StatusEnabledHeaderType">
            <xsd:sequence>
                <xsd:sequence>
                    <xsd:annotation>
                        <xsd:documentation>Generally the BOMReference is used instead of the Item and ItemInstance definitions to indicate the Item to be produced or manufactured by the ProductionOrder. We allow all three to occur here optionally to allow for other usage.</xsd:documentation>
                    </xsd:annotation>
                    <xsd:element ref="BOMReference" minOccurs="0" />
                    <xsd:element ref="Item" minOccurs="0" />
                    <xsd:element ref="ItemInstance" minOccurs="0" />
                </xsd:sequence>
                <xsd:element ref="OperationReference" minOccurs="0" maxOccurs="unbounded" />
                <xsd:element ref="Site" minOccurs="0" />
                <xsd:element ref="Party" minOccurs="0" maxOccurs="unbounded" />
                <xsd:element ref="OriginationCountryCode" minOccurs="0" />
                <xsd:element ref="DestinationCountryCode" minOccurs="0" />
                <xsd:element ref="PriorityCode" minOccurs="0" />
                <xsd:element ref="OrderQuantity" minOccurs="0" />
                <xsd:element ref="RequiredQuantity" minOccurs="0" />
                <xsd:element ref="DueQuantity" minOccurs="0" />
                <xsd:element ref="ExecutionTimePeriod" minOccurs="0" />
                <xsd:element ref="ForecastedTimePeriod" minOccurs="0" />
                <xsd:element ref="NeedDeliveryDate" minOccurs="0" />
                <xsd:element ref="DueDateTime" minOccurs="0" />
                <xsd:element ref="RequiredDateTime" minOccurs="0" />
                <xsd:element ref="AvailableDateTime" minOccurs="0" />
                <xsd:element ref="ReasonCode" minOccurs="0" />
                <xsd:element ref="KanbanNumber" minOccurs="0" />
                <xsd:element ref="SerializedLot" minOccurs="0" maxOccurs="unbounded" />
                <xsd:element ref="Distribution" minOccurs="0" />
                <xsd:element ref="UserArea" minOccurs="0" />
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
DocumentID nsA:DocumentID 0 (1)
AlternateDocumentID nsA:AlternateDocumentID 0 unbounded
LastModificationDateTime nsA:LastModificationDateTime 0 (1)
DocumentDateTime nsA:DocumentDateTime 0 (1)
Description nsA:Description 0 unbounded
Note nsA:Note 0 unbounded
DocumentReference nsA:DocumentReference 0 unbounded
Attachment nsA:Attachment 0 unbounded
Status nsA:Status 0 (1)
BOMReference nsA:BOMReference 0 (1)
Item nsA:Item 0 (1)
ItemInstance nsA:ItemInstance 0 (1)
OperationReference nsA:OperationReference 0 unbounded
Site nsA:Site 0 (1)
Party nsA:Party 0 unbounded
OriginationCountryCode nsA:OriginationCountryCode 0 (1)
DestinationCountryCode nsA:DestinationCountryCode 0 (1)
PriorityCode nsA:PriorityCode 0 (1)
OrderQuantity nsA:OrderQuantity 0 (1)
RequiredQuantity nsA:RequiredQuantity 0 (1)
DueQuantity nsA:DueQuantity 0 (1)
ExecutionTimePeriod nsA:ExecutionTimePeriod 0 (1)
ForecastedTimePeriod nsA:ForecastedTimePeriod 0 (1)
NeedDeliveryDate nsA:NeedDeliveryDate 0 (1)
DueDateTime nsA:DueDateTime 0 (1)
RequiredDateTime nsA:RequiredDateTime 0 (1)
AvailableDateTime nsA:AvailableDateTime 0 (1)
ReasonCode nsA:ReasonCode 0 (1)
KanbanNumber nsA:KanbanNumber 0 (1)
SerializedLot nsA:SerializedLot 0 unbounded
Distribution nsA:Distribution 0 (1)
UserArea nsA:UserArea 0 (1)
<xs:group> nsA:DocumentIDsGroup (1) (1)
<xs:group> nsA:FreeFormTextGroup (1) (1)
<xs:group> nsA:ReferencesGroup (1) (1)
Collapse Derivation Tree:
Collapse References:
nsA:ProductionOrderHeader
