Documentation for Open Applications Group (OAGIS)
Definition Type: ComplexType
Name: ProductionOrderReferenceType
Namespace: http://www.openapplications.org/oagis/9
Type: nsA:DocumentReferenceBaseType
Containing Schema: Components.xsd
Abstract

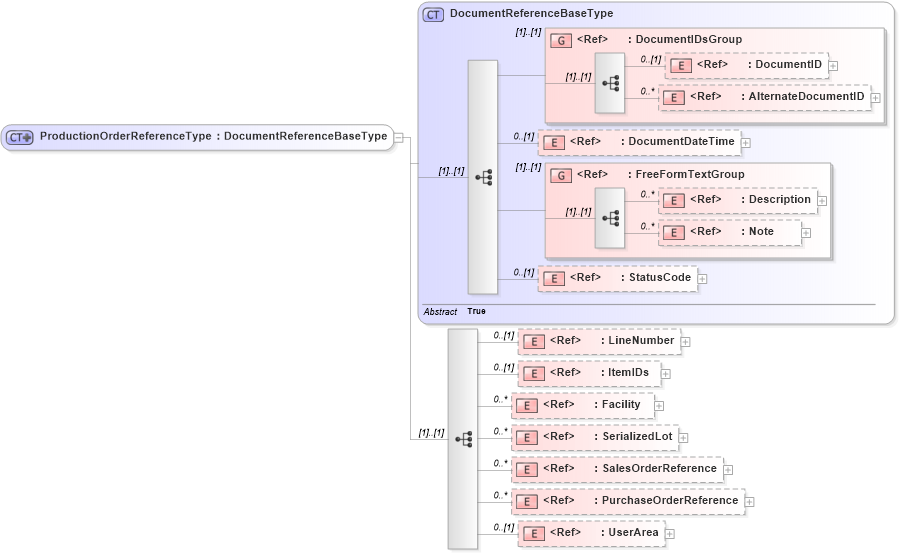

Collapse XSD Schema Diagram:
Drilldown into UserArea in schema fields_xsd Drilldown into PurchaseOrderReference in schema components_xsd Drilldown into SalesOrderReference in schema components_xsd Drilldown into SerializedLot in schema components_xsd Drilldown into Facility in schema components_xsd Drilldown into ItemIDs in schema components_xsd Drilldown into LineNumber in schema fields_xsd Drilldown into StatusCode in schema fields_xsd Drilldown into Note in schema fields_xsd Drilldown into Description in schema fields_xsd Drilldown into FreeFormTextGroup in schema meta_xsd Drilldown into DocumentDateTime in schema fields_xsd Drilldown into AlternateDocumentID in schema components_xsd Drilldown into DocumentID in schema components_xsd Drilldown into DocumentIDsGroup in schema components_xsd Drilldown into DocumentReferenceBaseType in schema components_xsdXSD Diagram of ProductionOrderReferenceType in schema components_xsd (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xsd:complexType name="ProductionOrderReferenceType">
    <xsd:complexContent>
        <xsd:extension base="DocumentReferenceBaseType">
            <xsd:sequence>
                <xsd:element ref="LineNumber" minOccurs="0" />
                <xsd:element ref="ItemIDs" minOccurs="0" />
                <xsd:element ref="Facility" minOccurs="0" maxOccurs="unbounded" />
                <xsd:element ref="SerializedLot" minOccurs="0" maxOccurs="unbounded" />
                <xsd:element ref="SalesOrderReference" minOccurs="0" maxOccurs="unbounded" />
                <xsd:element ref="PurchaseOrderReference" minOccurs="0" maxOccurs="unbounded" />
                <xsd:element ref="UserArea" minOccurs="0" />
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
DocumentID nsA:DocumentID 0 (1)
AlternateDocumentID nsA:AlternateDocumentID 0 unbounded
DocumentDateTime nsA:DocumentDateTime 0 (1)
Description nsA:Description 0 unbounded
Note nsA:Note 0 unbounded
StatusCode nsA:StatusCode 0 (1)
LineNumber nsA:LineNumber 0 (1)
ItemIDs nsA:ItemIDs 0 (1)
Facility nsA:Facility 0 unbounded
SerializedLot nsA:SerializedLot 0 unbounded
SalesOrderReference nsA:SalesOrderReference 0 unbounded
PurchaseOrderReference nsA:PurchaseOrderReference 0 unbounded
UserArea nsA:UserArea 0 (1)
<xs:group> nsA:DocumentIDsGroup (1) (1)
<xs:group> nsA:FreeFormTextGroup (1) (1)
Collapse Derivation Tree:
Collapse References:
nsA:ProductionOrderReference
